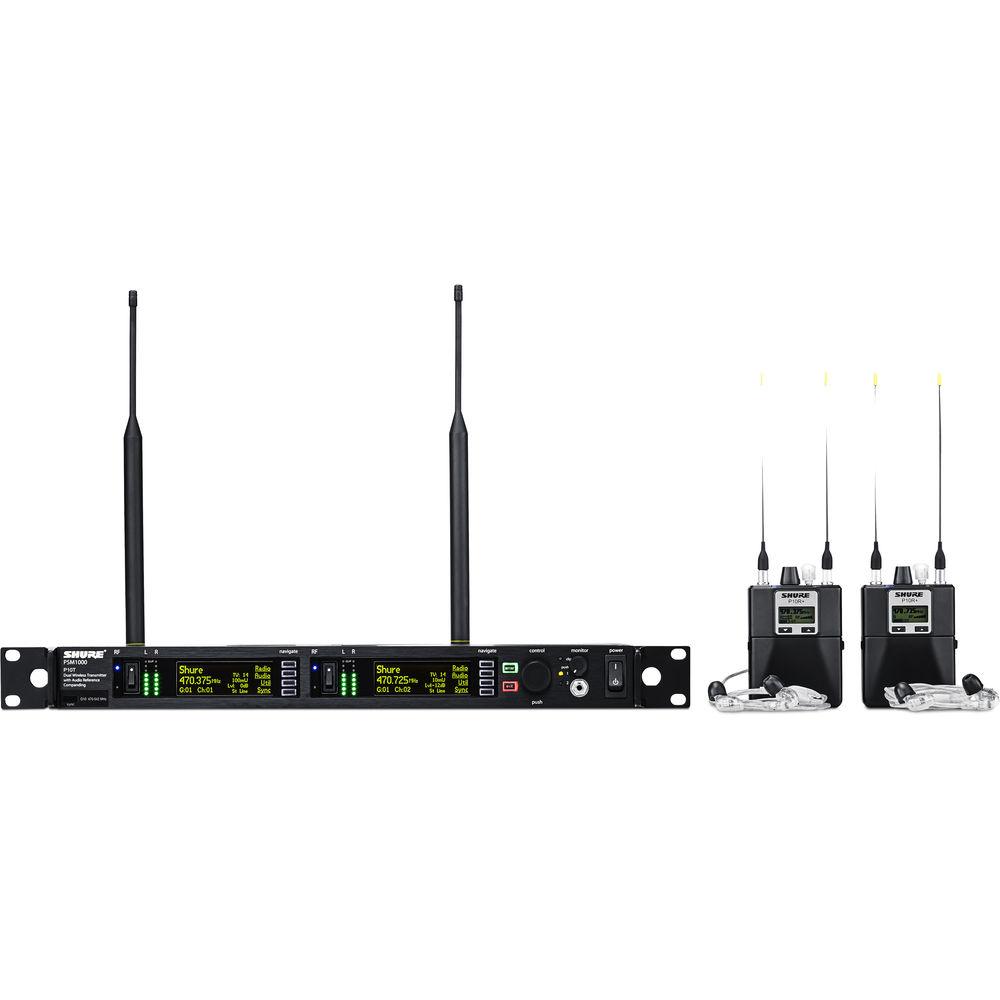

Product description The P10TR425CL PSM1000 Dual Channel Personal Monitor System from Shure includes a P10T full-rack dual-channel wireless transmitter, two Shure P10R+ wireless diversity bodypack receivers, two pairs of SE425 sound isolating earphones, two antennas for the full-rack wireless transmitter, and four antennas for the bodypack receivers. A hardware rackmount kit, link bar, zipper bag, bumper kit, and front-mount antenna cables are also included. This system can be used to deliver pristine RF signal and audio quality for professional touring applications, live stage and theater events, or permanent installations.The P10TR425CL system features network control via Ethernet connection and internal power supply with IEC in/out ports for easy power chaining when installed in a rack. It is backwards compatible with PSM 900 receivers and the diversity bodypack improves signal reception with increased range. Up to 72 MHz tuning bandwidth provides flexibility in today's crowded and unpredictable RF environments.Furthermore, a full bandwidth scan from the P10R+ bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen. Finally, Wireless Workbench 6 software offers full compatibility with advanced RF spectrum plotting, comprehensive frequency coordination, and live monitoring and adjustment of transmitter settings. - P10T Full-Rack Dual-Channel Wireless Transmitter (J8A: 554 to 616 MHz)
- Shure PSM 1000 Personal Monitor System

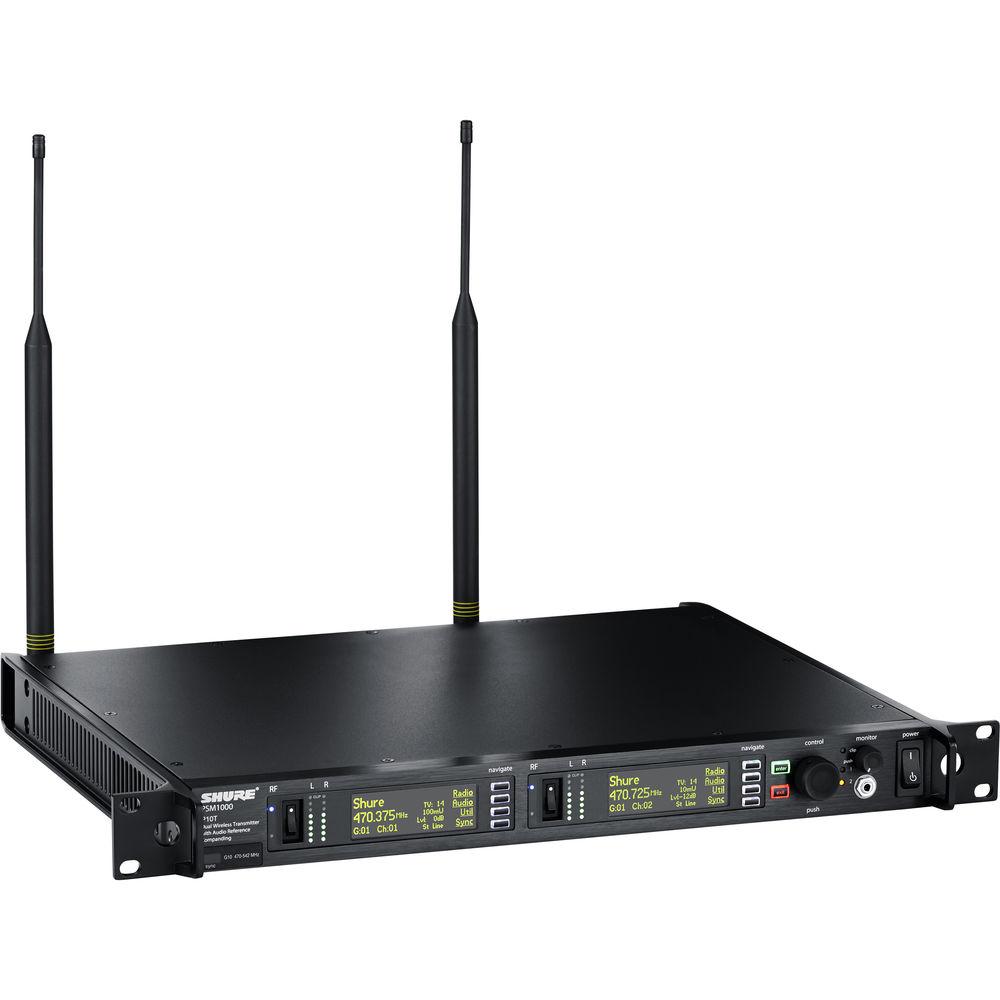

The P10T Full-Rack Dual-Channel Wireless Transmitter from Shure is a wireless transmitter for the PSM 1000 system. It can be used to deliver pristine RF signal and audio quality for professional touring applications when paired with Shure P10R or P10R+ wireless diversity bodypack receivers (sold separately) for live stage and theater events or permanent installations.Built with an all-metal chassis, the dual-channel P10T allows for up to 2 programs to be transmitted simultaneously on different frequency channels. The P10T features balanced 1/4" and XLR connections, as well as an 1/8" headphone jack on the front for monitoring. Its 72 MHz bandwidth offers a wide tuning range to provide stable transmission. Other features include: LCD display, RF mute switch, IR scan with P10R bodypack for RF sync, networked remote control via Wireless Workbench software, and PSM900 backwards compatibility. - Full-rack, dual-channel transmitter in a professional, touring-grade chassis
- 72 MHz wide tuning range provides flexibility and performance in crowded, unpredictable RF environments
- Networkable over Ethernet connection to provide comprehensive frequency coordination and transmitter remote control via Wireless Workbench software:
- RF mute enable/disable - RF output power adjustments - Aux/line level - Audio input level - Channel/device name edit - Firmware updates - Backwards compatible with PSM900 receivers
- RF Mute Switch allows system setup without causing RF interference
- Sync RF scan information from a P10R bodypack quickly and easily over IR link
- Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
- Spectrum display provides a detailed frequency plot on the menu screen with selectable zoom
- Front panel audio input gain adjustment and LED level meter with clipping indicator
- Exceptional transmitter linearity vastly reduces frequency intermodulation, allowing more compatible channels per frequency range
- High-contrast LCD with grouped menu items provides an intuitive user interface
- Front or back mountable antennas
- Compatible with PA421A and PA821A antenna combiners
- Loop out connectors for multiple mix setups and easy installation
- Switchable +4 dBu and -10 dBV input level
- Balanced, 1/4" and XLR connectors
- 1/8" headphone out on the front panel for easy monitoring

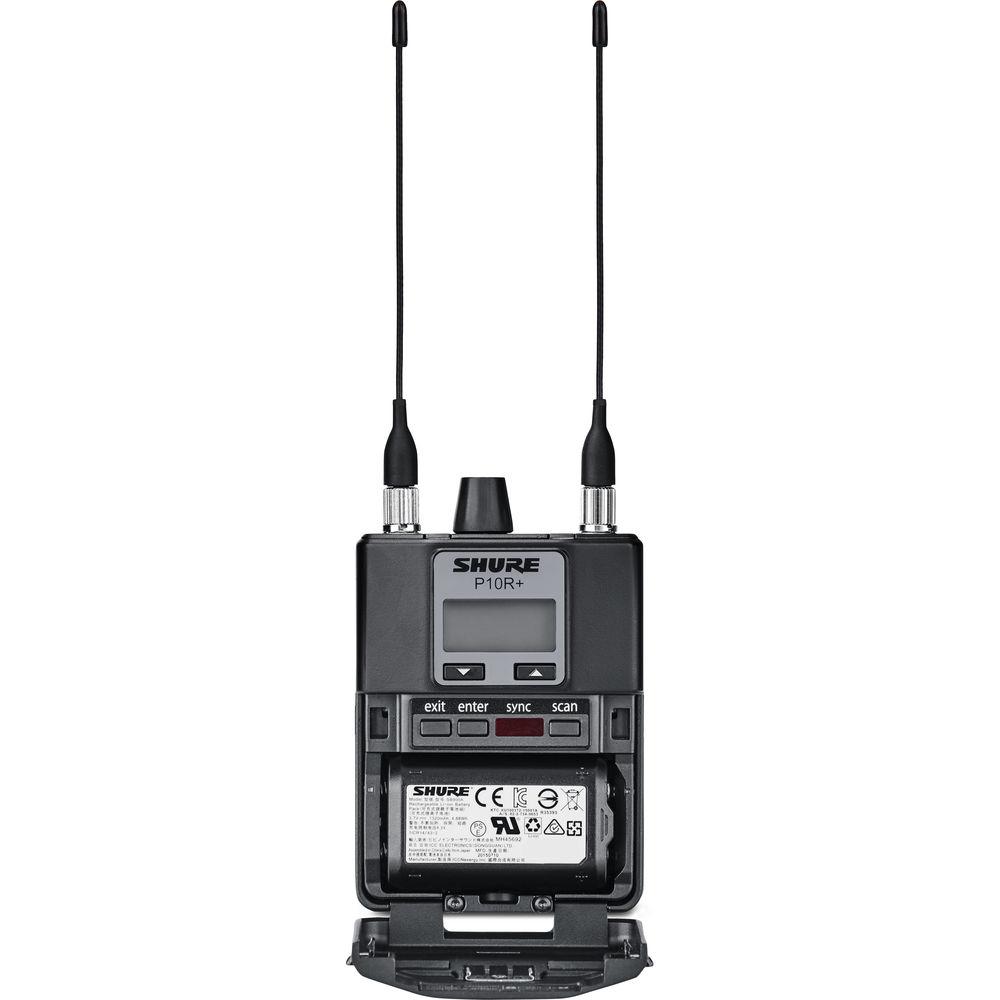

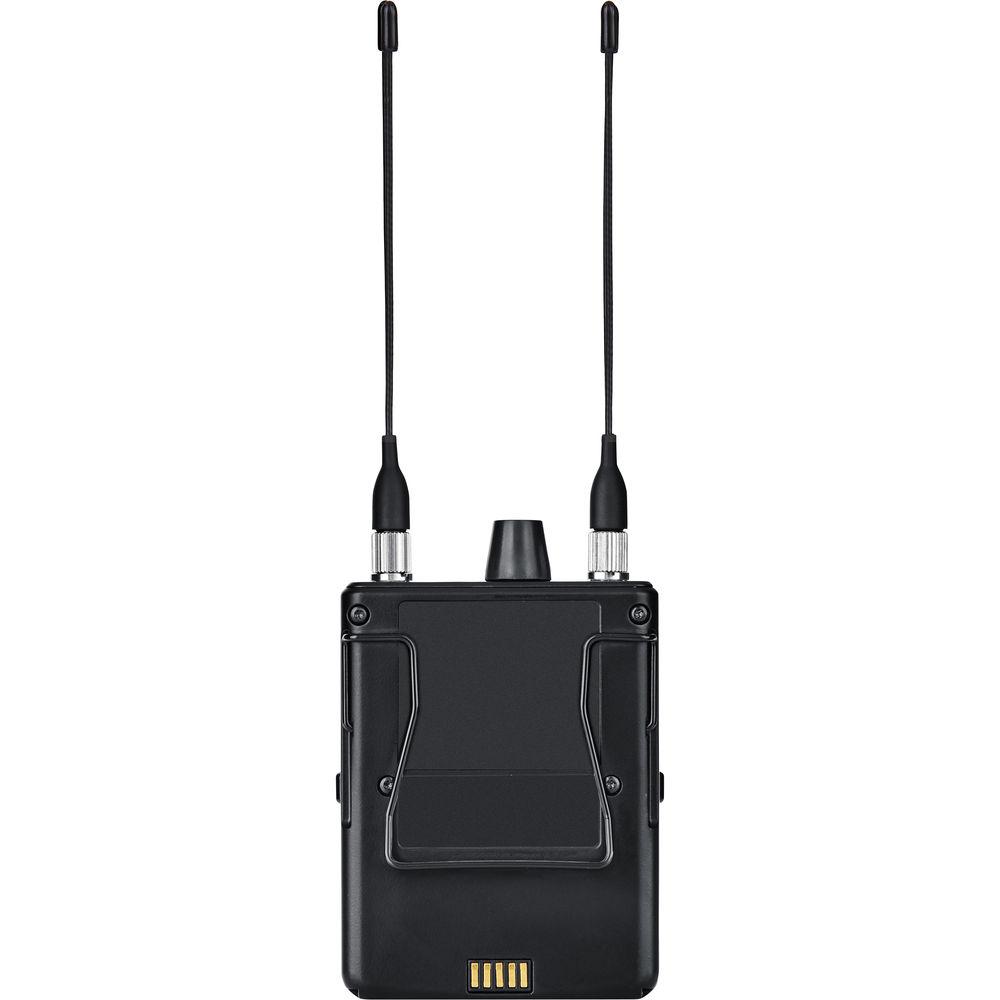

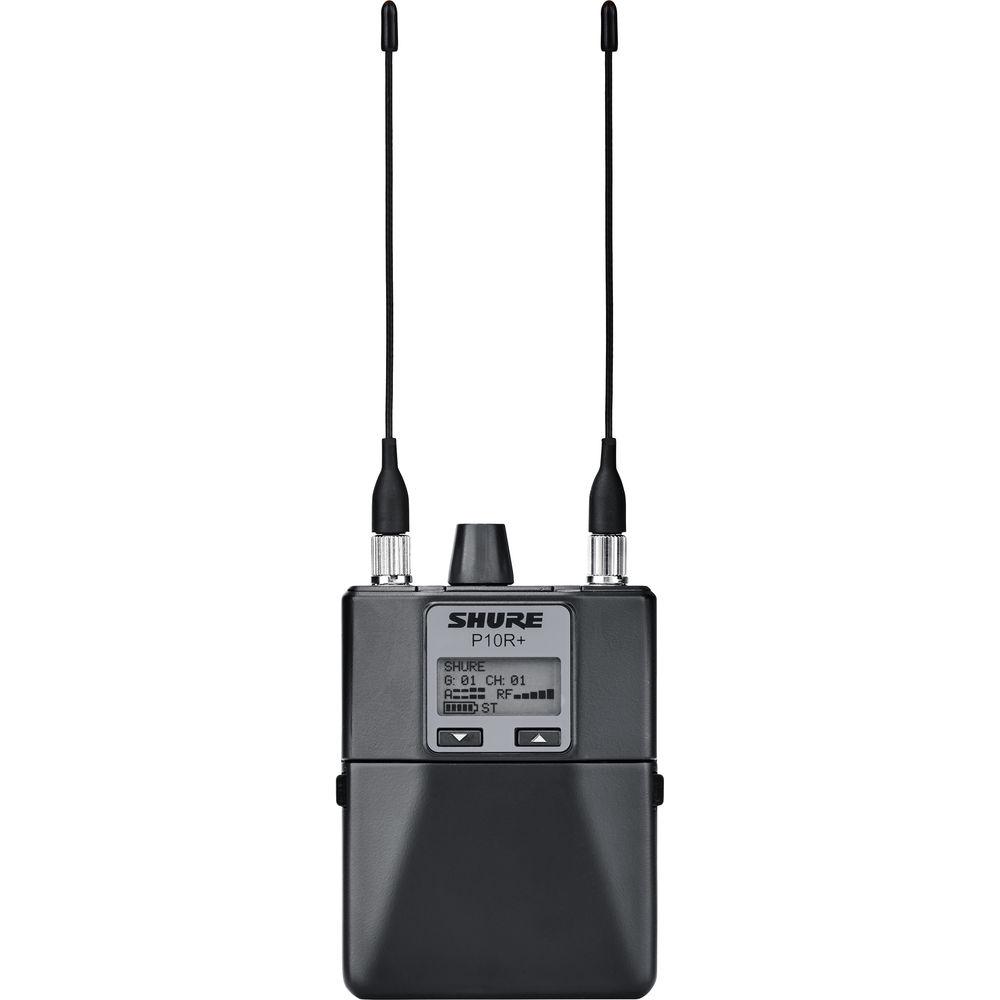

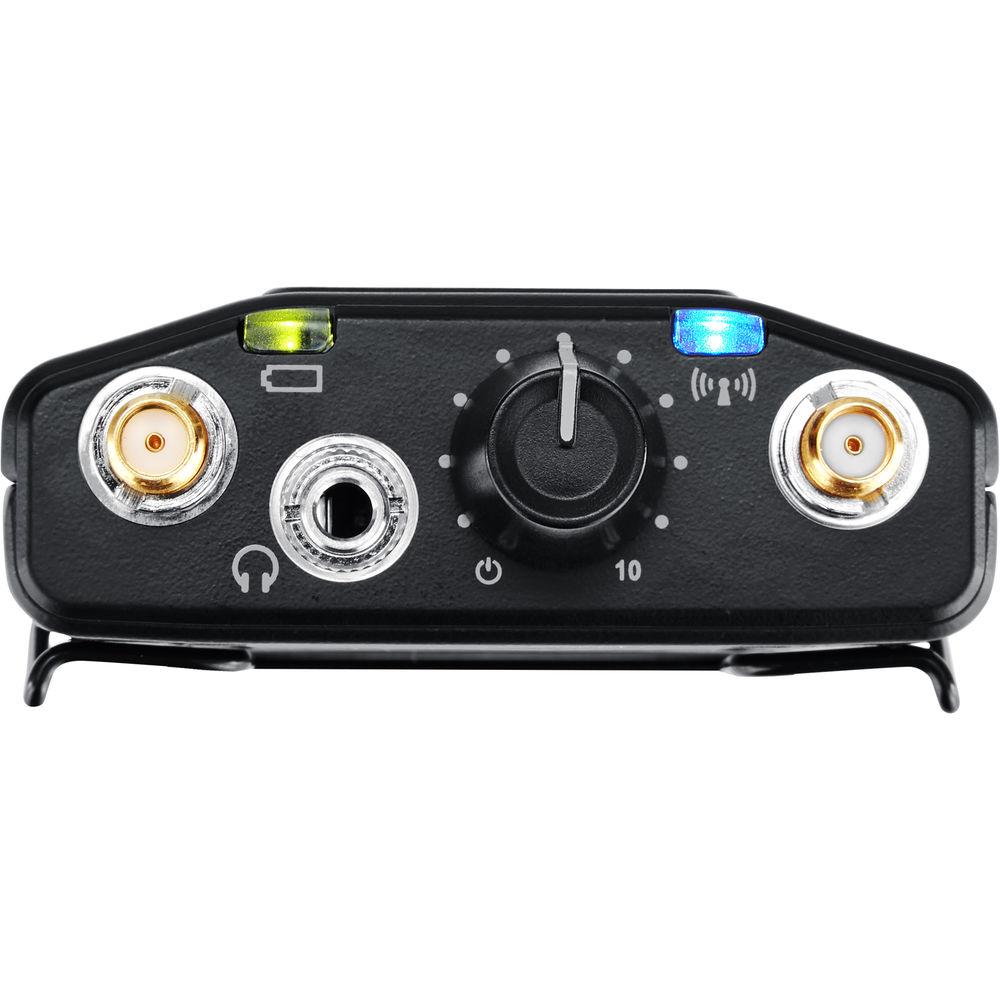

UPC: 042406548588 - P10R+ Wireless Bodypack Receiver (J8A: 554 to 616 MHz) The P10R+ Wireless Bodypack Receiver from Shure is an updated version of the P10R low profile, diversity bodypack receiver for the PSM 1000 wireless personal monitor system (sold separately). The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and offers improvements like more headroom, better stereo separation, and higher fidelity for robust RF performance and touring-grade features. Featuring full bandwidth RF scan, Front-End RF filtering, and automatic RF gain control, the P10R+ meets the needs of professional audio application of all sizes, including IEM and IFB applications.The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable 4-band parametric EQ is also provided. The patent-pending CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P10R+ operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P10R+ has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound isolating earphones, which are designed specifically for use with PSM systems.
- Updated Features
-
- Improved audio quality (without changing sound signature)
- Improved RF performance and reliability
- Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
- Updated firmware with new features and workflow improvements
- Improved Volume Limiter function (selectable ranges of limiting increased)
- 4-band parametric EQ added
- Power-Save Mode added (like feature on PSM300 series packs)
- Touring-Grade Design and Performance
-
- Twin-antenna diversity bodypack receiver with advanced digital signal processing technology dramatically improve signal reception and increase range
- CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
- MixMode technology combines two separate audio channels for simultaneous listening in both ears, or transmit two independent IFB program feeds
- Robust RF Performance and Networked Control
-
- Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
- Automatic RF gain control prevents signal distortion due to RF overload before it can affect performance
- Networked frequency coordination simplifies setup for high channel counts
- Full bandwidth scan from the P10R+ bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
- IR sync enables you to send the identified frequencies and spectrum plot to the P10T transmitter directly
- Natural Audio Quality
-
- Advanced digital signal processing technology in the P10R+ receiver delivers more headroom, improved stereo separation, and higher audio fidelity
- Patented Audio Reference Companding offers natural and transparent sound

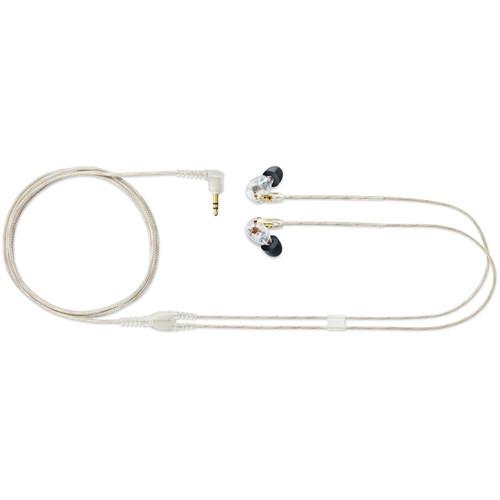

UPC: 042406542692 - SE425 Sound Isolating In-Ear Stereo Headphones (Clear) The SE425 in-ear headphones from Shure provide top-quality audio in a sleek, compact, noise-isolating design that's ideal for use at home or on-the-road. Based on Shure's experience with professional in-ear monitors, each of the earpieces has dual high-definition MicroDrivers, in essence putting a separate woofer and tweeter into each ear for rich, detailed audio across the full frequency spectrum. The ergonomic, professional design has a low-profile shape with an optimized nozzle angle for exceptional comfort.
The included fit kit contains multiple sizes of ear sleeves, allowing you to find the perfect size for your ear and effectively reduce ambient noise by as much as 37dB so you can focus on your music. The detachable Kevlar-reinforced cable connects to the earpieces using gold-plated MMCX connectors to lock in place but also provide a 360° rotation. This rotation, along with the formable wire, allows you to direct the cable over and behind the ears to minimize snags and tangles. The other end of the cable has a 3.5mm mini plug and a 1/4" adapter for wide compatibility with consumer and professional audio devices. A compact and durable case is included for storage and transportation. - High-Definition MicroDrivers
- Dual high-definition MicroDrivers in each earpiece put a separate woofer and tweeter into each ear for rich, detailed audio across the full frequency spectrum
- Comfortable, Ergonomic Design
- Ergonomic, professional design has a low-profile shape with an optimized nozzle angle for exceptional comfort
- Noise Isolating
- The included fit kit contains multiple sizes and types of ear sleeves, allowing you to find the perfect size for your ear and effectively reduce ambient noise by as much as 37dB so you can focus on your music
- Detachable, Formable Cable
- The detachable Kevlar-reinforced cable connects to the earpieces using gold-plated MMCX connectors to lock in place but also provide a 360° rotation. This rotation, along with the formable wire, allows you to direct the cable over and behind the ears to minimize snags and tangles
- Wide Compatibility
- The 3.5mm stereo mini plug and 1/4" adapter provide wide compatibility with consumer and professional audio devices
- Carrying Case Included
- A compact and durable case is included for storage and transportation

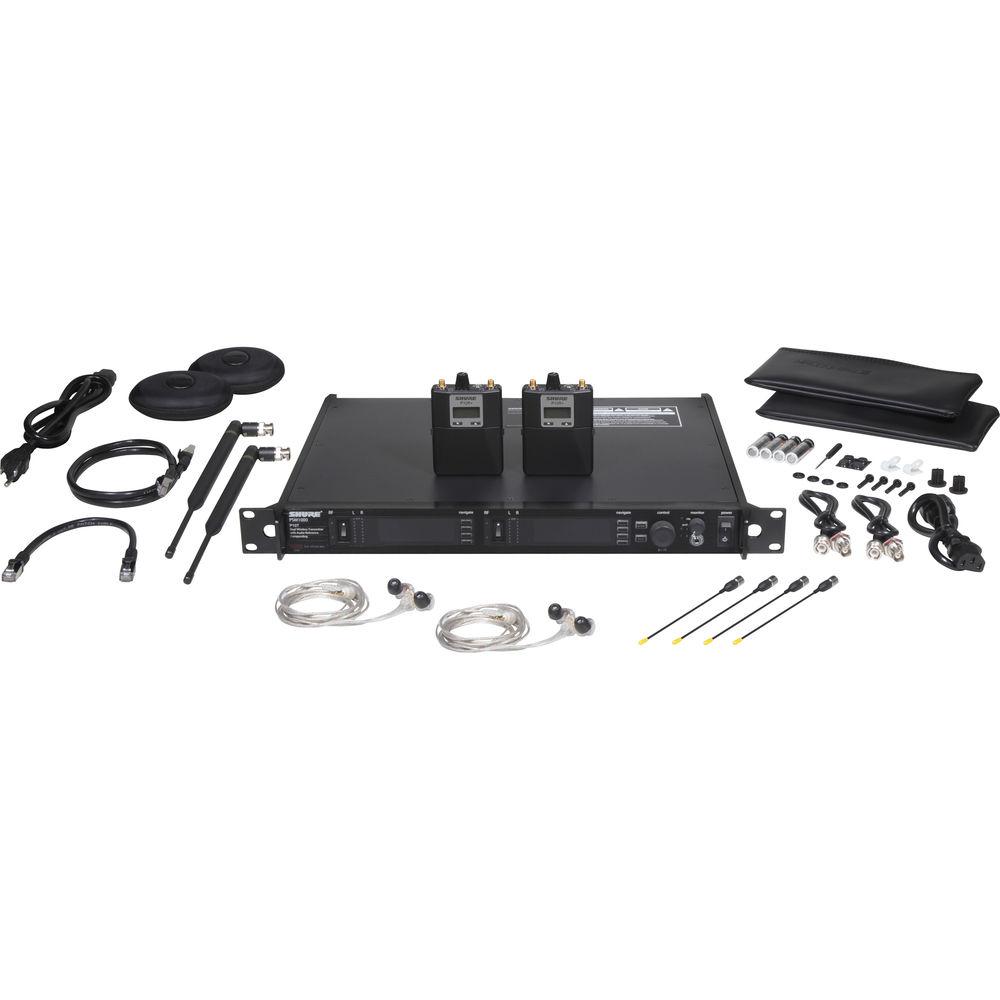

UPC: 042406178457 In the Box Bundle Items P10T Full-Rack Dual-Channel Wireless Transmitter (J8A: 554 to 616 MHz) tqvwcaxaxadzbeazzwafq - Hardware Kit (Rackmounting Screws)
2 x P10R+ Wireless Bodypack Receiver (J8A: 554 to 616 MHz) 2 x SE425 Sound Isolating In-Ear Stereo Headphones (Clear) - 3 x Pairs of Flex Sleeves (S/M/L)
- 3 x Pairs of Black Foam Sleeves (S/M/L)
- Pair of Triple Flange Sleeves
- Pair of Yellow Universal Fit Foam Sleeves
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P10TR425CL PSM1000 Dual Channel Personal Monitor System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - P10T Full-Rack Dual-Channel Wireless Transmitter (J8A: 554 to 616 MHz)
| RF Carrier Frequency Range | J8A: 554 to 616 MHz | Compatible Frequencies | Per Band: 39 | Tuning Bandwidth | 72 to 80 MHz (depending on region) | Operating Range | 300' / 90 m (environment dependent) | Frequency Response | 35 Hz to 15 kHz (
