User Manual for Shure P3R-J13 Wireless Bodypack Receiver for PSM300 Click to enlarge the picture
Contents of the user manual for the Shure P3R-J13 Wireless Bodypack Receiver for
- Product category: Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Receivers
 |
User manual for the Shure P3R-J13 Wireless Bodypack Receiver for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

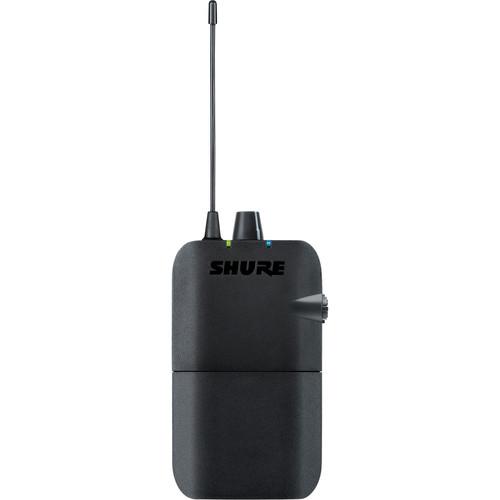

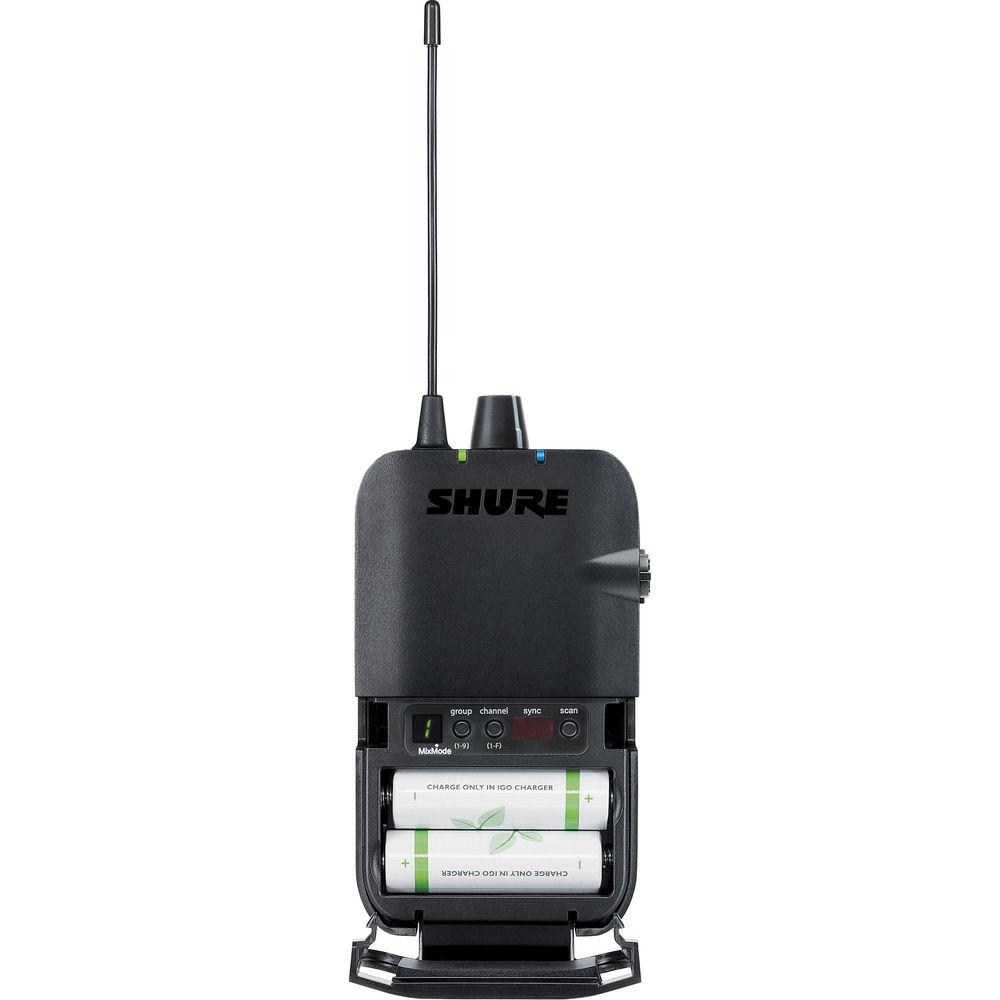

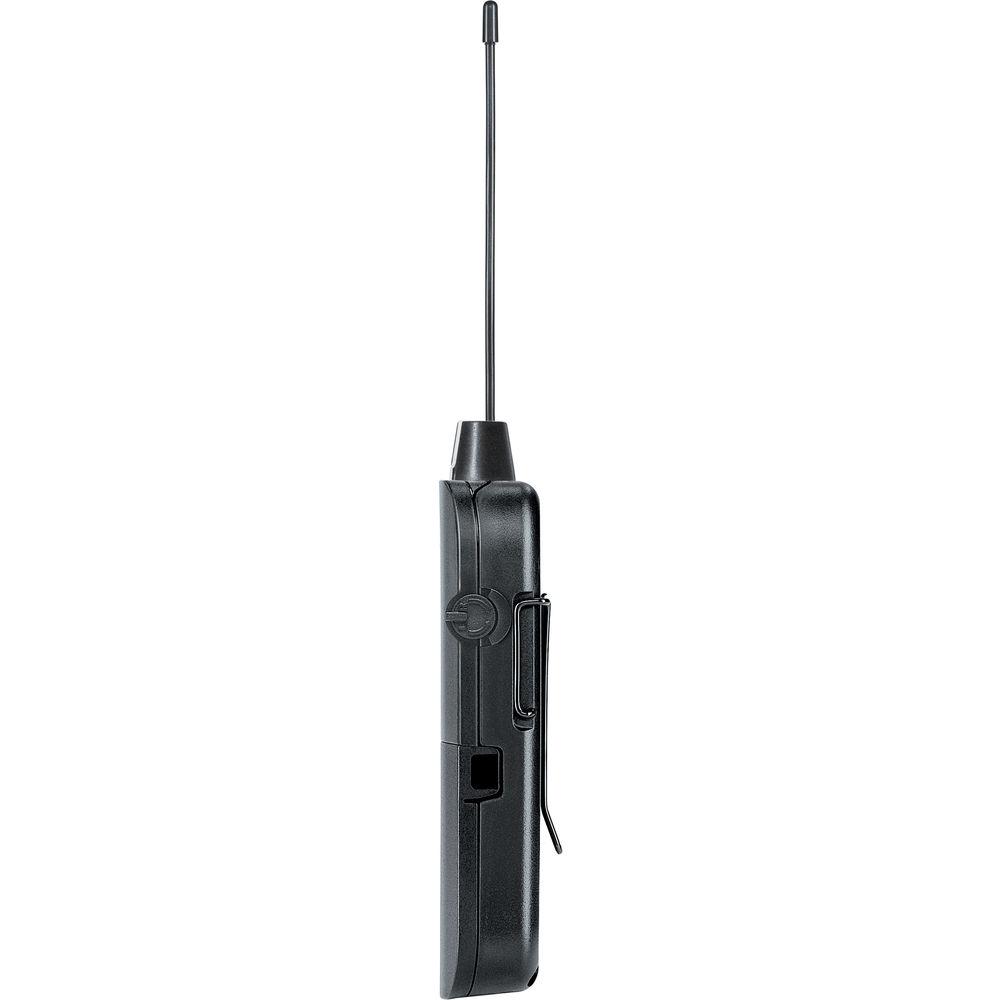

Product description The P3R-J13 Wireless Bodypack Receiver from Shure is a slim and compact wireless receiver designed to be used with a Shure P3T transmitter, (sold separately), to comprise a PSR 300 personal monitoring system. It can be used in various environments for audio applications such as, live stage, theater, houses of worship, and more. It features 24-bit digital audio clarity and has a range of up to 300'. Find a wireless channel using the one-touch scan function to automatically select the cleanest frequency available. Adjust the volume and use the MixMode feature or stereo mode to create a personal mix from two channels of audio. Two standard AA batteries provide up to 6 hours of continuous use. The power save mode preserves battery life when an earphone is not connected. Two AA batteries and a zipper bag are included - Use MixMode or stereo mode to create a personal 2 channel mix
- Over 90 dB of dynamic range for precise, low-noise audio
- Slim, lightweight bodypack attaches easily to a belt or guitar strap
- Easy-to-adjust volume and mix controls
UPC: 042406351591 In the Box Shure P3R-J13 Wireless Bodypack Receiver for PSM300 (J13: 566-590 MHz) 2 x AA Batteries Zipper Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P3R-J13 Wireless Bodypack Receiver for PSM300 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure P3R Specs | RF Sensitivity | Active: 2.2 μV (at 20 dB SINAD) | | Image Rejection | >90 dB | | Adjacent Channel Rejection | >60 dB | | Intermodulation Attenuation | >50 dB | | Blocking | >60 dB | | Audio Output Power | 1 kHz @ <1% distortion, Peak Power, @32 ohms: 80 mW (per output) | | Minimum Load Impedance | 16 ohms | | Headphone Output | 1/8" (3.5 mm) stereo | | Battery Life | 5-7 hours (continuous use) AA batteries | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.8" (110 × 64 × 21 mm) | | Weight | 3.5 oz (98 g) without batteries | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 11.1 x 5.3 x 3.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
