User Manual for Shure P3RA Wireless Bodypack Receiver for PSM300 System Click to enlarge the picture
Contents of the user manual for the Shure P3RA Wireless Bodypack Receiver for
- Product category: Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Receivers
 |
User manual for the Shure P3RA Wireless Bodypack Receiver for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

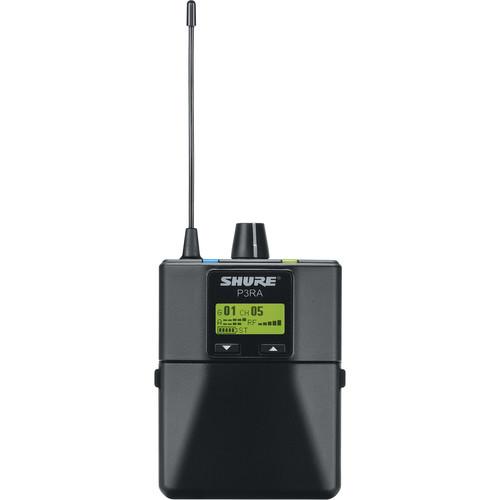

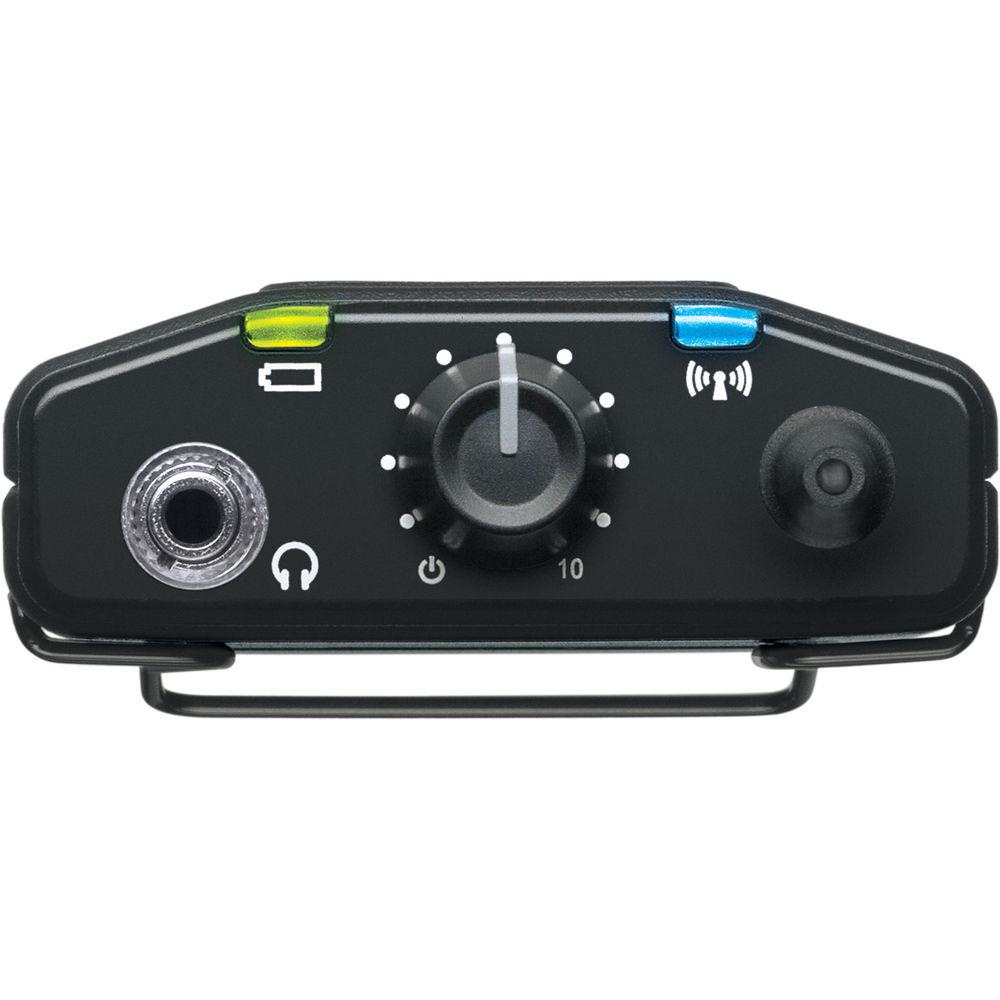

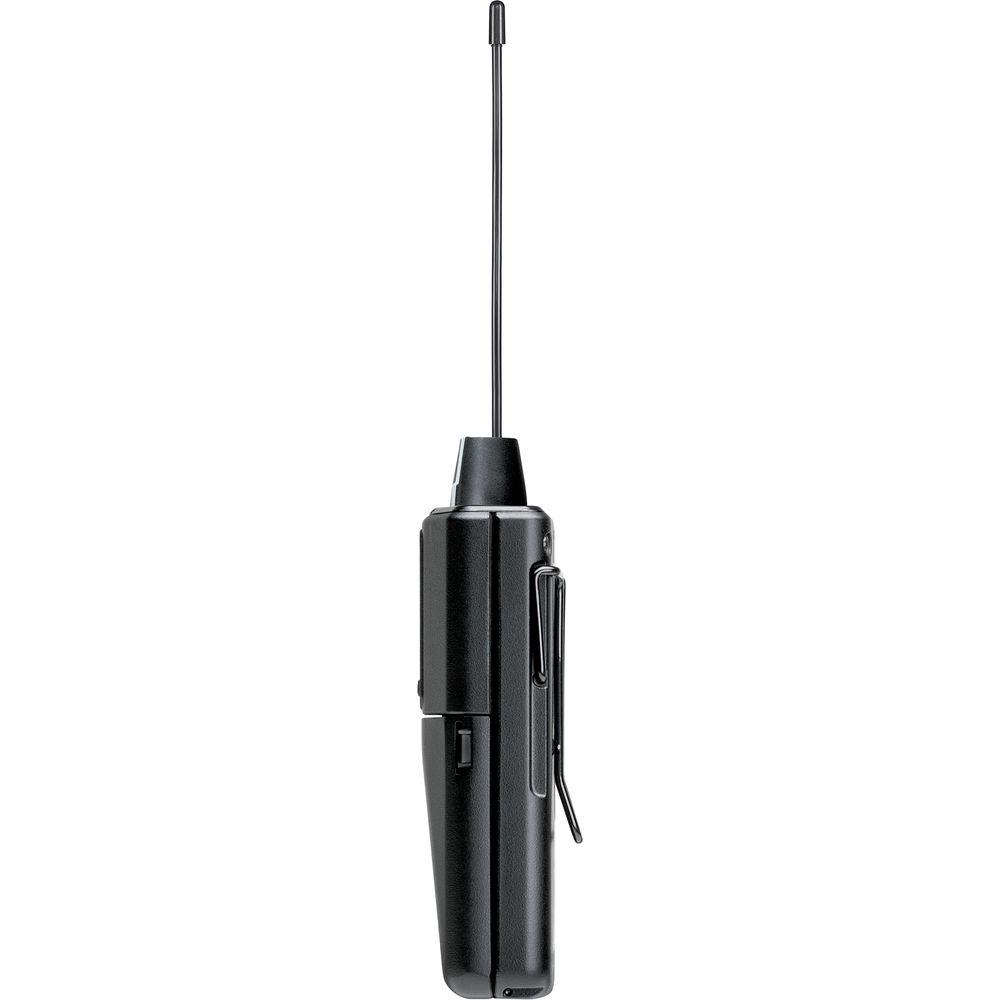

Product description The P3RA Wireless Bodypack Receiver from Shure is a compact, stereo wireless receiver designed to be used with a Shure P3T transmitter, as part of the PSR 300 personal monitoring system. It be used by performers and speakers for audio applications in various environments such as live stages, theaters, houses of worship, and more. The P3RA offers 24-bit digital audio clarity with dependable wireless coverage at a range of up to 300'. Automatically find the cleanest frequency available using the scan function. The MixMode and Stereo Mode features allow you to create two independent monitor mixes. A high-contrast LCD screen lets you navigate the menus so you can adjust the mixes to your liking, with control over the left/right balance, a 2-band shelving EQ, and an output gain limiter. The unit is equipped with a rugged aluminum body, which can be clipped onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours of continuous use, and with the optional SB900 rechargeable battery (available separately) you can extend the runtime to up to 7 hours. The Power Save mode preserves battery life when earphones are not connected. - Wireless stereo bodypack receiver, for use with the PSM300 personal stereo monitor system (J13: 566-590 MHz, frequency-range)
- Receives two channels of audio wirelessly – for use in musical professional entertainment and similar applications
- Detailed 24-bit digital audio provides clear, detailed sound
- Dependable wireless coverage extends over 300' (90 m) range, and eliminates dropouts
- Proprietary Audio Reference Companding technology ensures clean sound, with ultra-low noise, and no artifacts
- Frequency scan and IR sync – quickly find and assigns a clean channel
- Rugged, all-metal housing

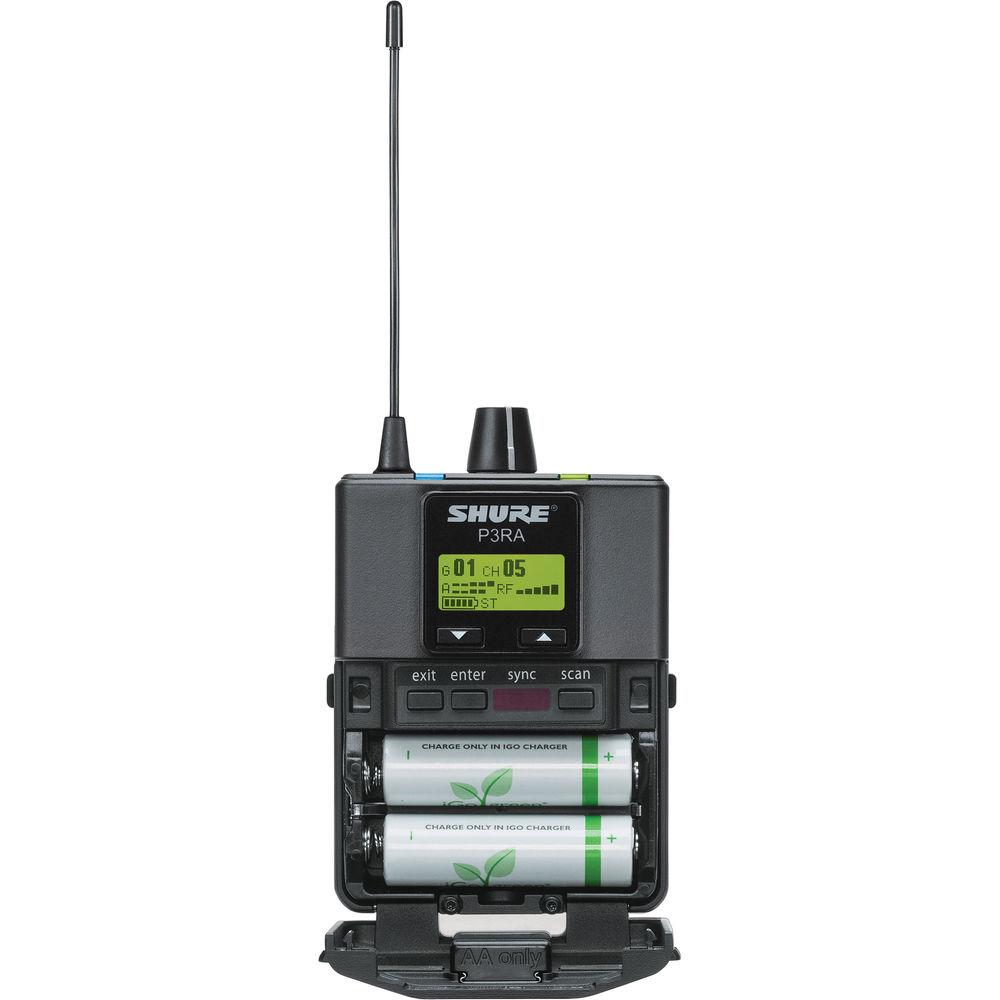

- Delivers up to 6 hours of continuous operation with 2 AA batteries
- Offers extended runtime with the Shure SB900A lithium-ion battery (available separately), which can charge in the bodypack
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode technology enables adjustment of two independent monitoring mix levels
- 2-band shelving EQ with high and low boost
- Stereo Mode enables adjustment of left / right balance
- Power-Save mode preserves battery life when earphones are not connected
- High-contrast LCD screen with menu-based navigation
- 5-Segment battery status LEDs provide clear indication of remaining charge
UPC: 042406351737 In the Box Shure P3RA Wireless Bodypack Receiver for PSM300 System (J13: 566-590 MHz) Belt Clip 2 x AA Batteries Battery Adapter Kit Zipper Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P3RA Wireless Bodypack Receiver for PSM300 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure P3RA Specs | Frequency Range | J13: 566-590 MHz | | RF Sensitivity | Active: 2.2 μV (at 20 dB SINAD) | | Image Rejection | > 90 dB | | Adjacent Channel Rejection | > 60 dB | | Intermodulation Attenuation | > 50 dB | | Blocking | > 60 dB | | Audio Output Power | 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms) | | Minimum Load Impedance | 16 Ohms | | Headphone Output | 1.8" (3.5 mm), stereo | | Continuous Battery Life | 4 to 5.5 hours, AA batteries
5.5 to 7 hours, SB900 battery (available separately) | | Dimensions (H x W x D) | 3.8 x 2.5 x 0.9" (99.0 x 66.0 x 23.00 mm) | | Net Weight | 6.9 oz (196 g), with batteries | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.2 x 5.3 x 3.4" |
