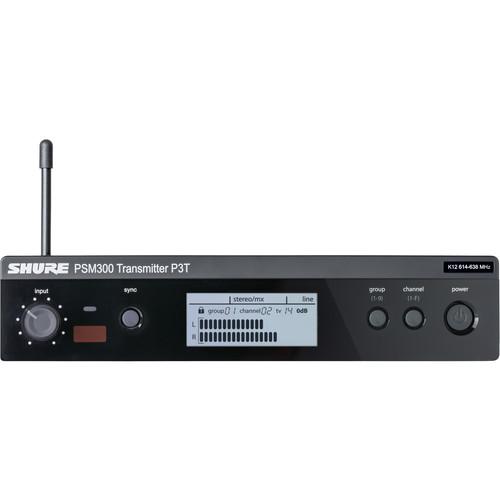

Product description The P3T from Shure is a half-rack 24-bit digital audio wireless transmitter for the personal in ear monitoring system. It can be used in various environments to send 2 channels of audio to a bodypack receiver (sold separately), up to 300' away for applications such as live stage, theater, rehearsals, and more. It features audio reference companding to ensure transparent sound quality with no artifacts or dropouts. This rugged transmitter is built with easy front-panel controls, including the one-touch sync and input level knobs which are there to enable quick setup and easy operation. Furthermore, the rear-panel has balanced inputs and loop outputs that can provide versatile connectivity to other audio sources or other P3T units. - Up to 30mW output power (region dependent)
- 1/4" (6.3mm) TRS balanced inputs and loop outputs
- 24 MHz tuning range (region dependent)
- High-contrast LCD menu with detailed L/R audio output meters
- Detachable 1/4 wave antenna
- Selectable line/aux level
UPC: 042406353205 In the Box Shure P3T Wireless Transmitter for PSM300 (G20: 488-512 MHz) Detachable 1/4 Wave Antenna Rackmount and Hardware Kit BNC Cable BNC Bulkhead Adapter External Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P3T Wireless Transmitter for PSM300 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure P3T Specs | | | Frequency Range | G20: 488-512 MHz | | RF Output Power | 10, 20, 30 mW
Note: varies by region | | RF Output Impedance | 50 Ohms (typical) | | Transmission Range | 300' (90 m) | | | | Connector Type | 1/4" TRS (6.35 mm) | | Polarity | Tip positive with respect to ring | | Configuration | Electronically balanced | | Impedance | 40 kOhms (actual) | | Nominal Input Level | Switchable, +4 dBu, -10 dBV | | Maximum Input Level | +4 dBu: +22 dBu
-10 dBV: +12.2 dBu | | Pin Assignments | Tip=hot, Ring=cold, Sleeve=ground | | Phantom Power Protection | Up to 60 VDC | | | | Connector Types | 1/4" TRS (6.35 mm) | | Configuration | Electronically balanced | | Impedance | Connected directly to inputs | | | | Antenna | 1/4 wave, detachable | | Power Requirement | 12 to 15 VDC, 260 mA maximum | | Dimensions (H x W x D) | 1.7 x 7.8 x 6.8" (43 x 198 x 172 mm) | | Net Weight | 27.6 oz (783 g) | | | | Box Dimensions (LxWxH) | 18.5 x 14.75 x 3.75" |
