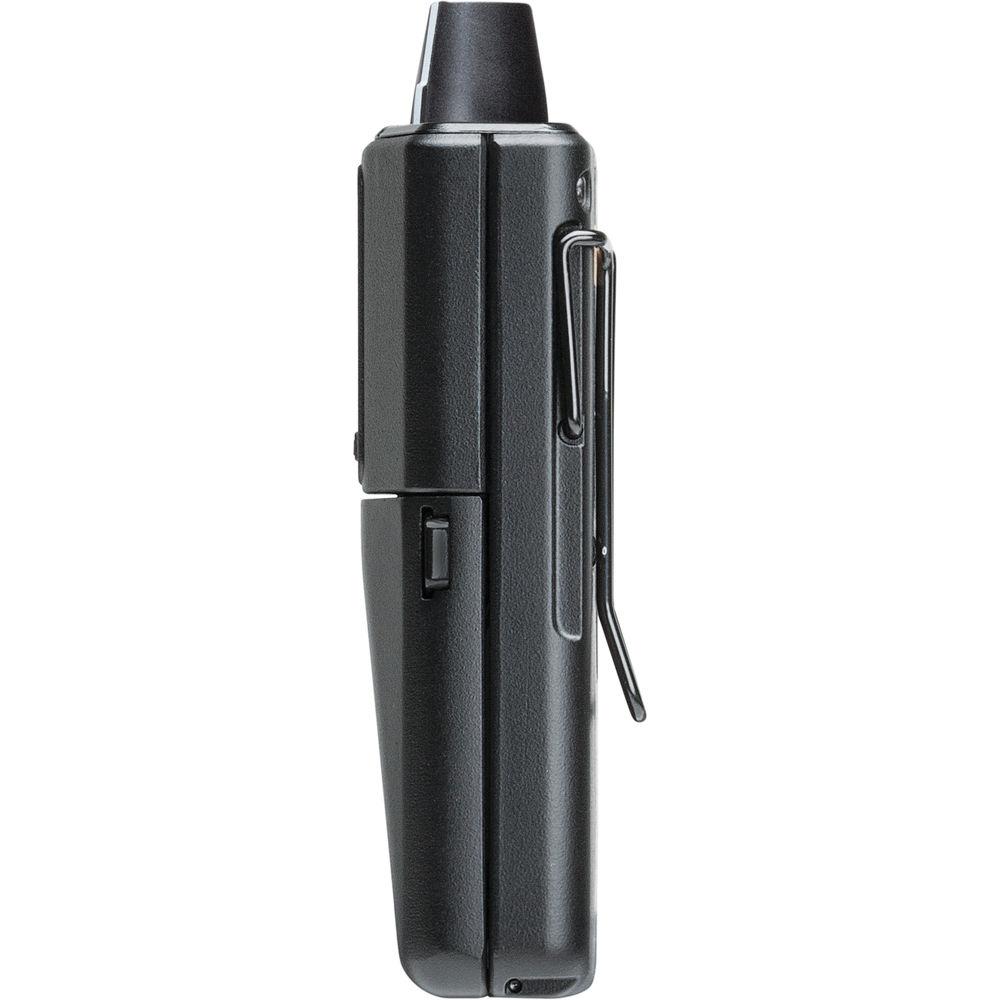

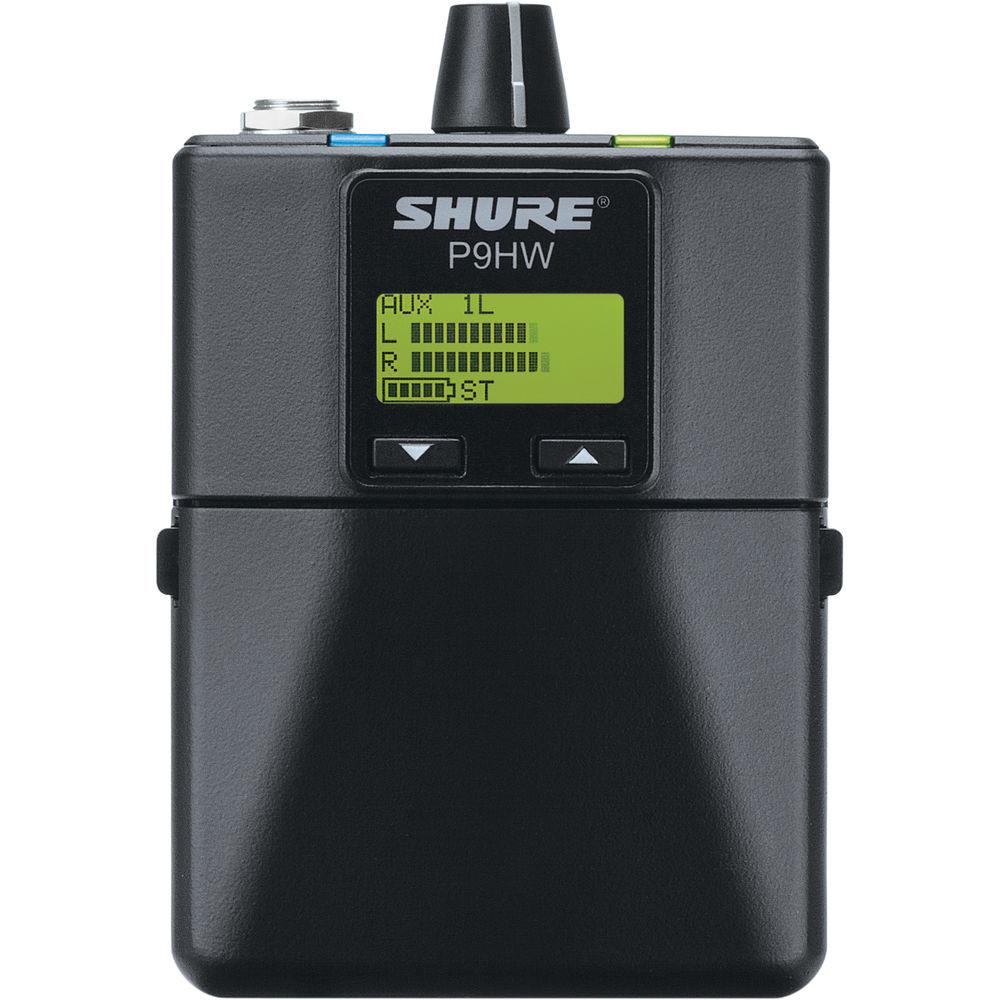

User Manual for Shure P9HW Hardwired Bodypack Receiver Click to enlarge the picture
Contents of the user manual for the Shure P9HW Hardwired Bodypack Receiver
- Product category: Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Receivers
 |
User manual for the Shure P9HW Hardwired Bodypack Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The P9HW from Shure is a two-channel stereo wired personal monitor with individual mix controls. It is designed to deliver improved audio clarity and reduced feedback than traditional speaker wedges, in audio application such as live stage, theater, rehearsal, houses of worship and more. You can listen to one or two channels of audio from the mixing console through earphones; using MixMode you can customize the mono blend or listen to the stereo mode and set the left and right audio balance individually. The P9HW is built with a four-band EQ and has volume limiting so you can further individualize your sound. Two standard AA batteries provide up to 6 hours of continuous use. An optional SB900 rechargeable battery (sold separately) extends runtime and will allow you easy in-unit charging. With a compact and rugged aluminum body, the P9HW ensures a long lifetime of use. This bodypack receiver clips onto a belt or guitar strap. A Y-splitter cable is included for connection to audio sources. - LCD display with menu-based navigation
- Easy to adjust volume knob and mix controls
- Volume limiter sets the maximum volume adjustment range
- Includes a 4-band parametric EQ
- Switchable line (+4 dBu) and aux (-10 dBV) input level
- Power and battery status LED
- 5 segment battery life meter
- Power save mode and automatic power-off preserves battery life

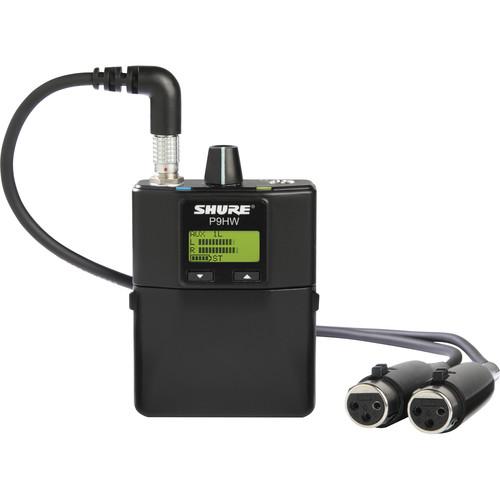

UPC: 042406392174 In the Box Shure P9HW Hardwired Bodypack Receiver Belt Clip Battery Adapter Kit 2 x AA Batteries Y-Splitter Cable Zipper Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P9HW Hardwired Bodypack Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PSM900 Specs | | | Connector Type | LEMO | | Configuration | Electronically balanced | | Impedance | LIne: 45 kOhms
Aux: 66 kOhms | | Nominal Input Level | Switchable: +4 dBu (line), -10 dBV (aux) | | Maximum Input Level | +4 dBu
-10 dBV
(Line): +22 dBu
(Aux): +12.2 dBu | | Phantom Power Protection | Up to 60 VDC | | | | Connector Type | 1/8" (3.5 mm) | | | | Audio Frequency Response | 20 Hz-20 kHz (±3 dB) | | Signal-to-Noise Ratio | 98 dB (typical) A-weighted | | Total Harmonic Distortion (THD) | <0.2% @ 1 kHz, typical | | Channel Separation | >55 dB @ 1 kHz | | Operating Temperature | -0.40 to 145°F (-18 to +63 °C) | | Minimum Load Impedance | 9.5 ohms | | Continuous Battery Life | 9 hours using AA batteries | | Dimensions (H x W x D) | 3.9 x 2.6 x 0.9" (99 × 66 × 23 mm) | | Net Weight | 6.9 oz (196 g) (with batteries) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.0 x 5.0 x 3.0" |
