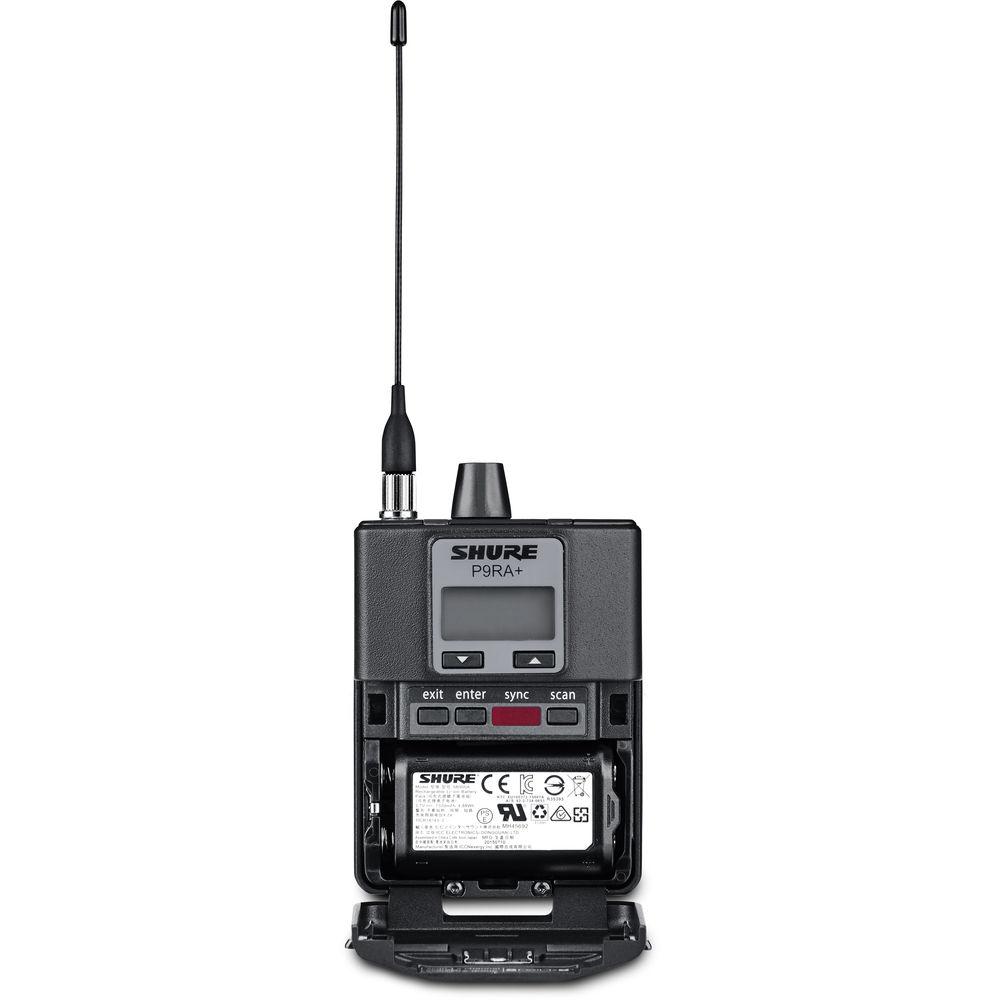

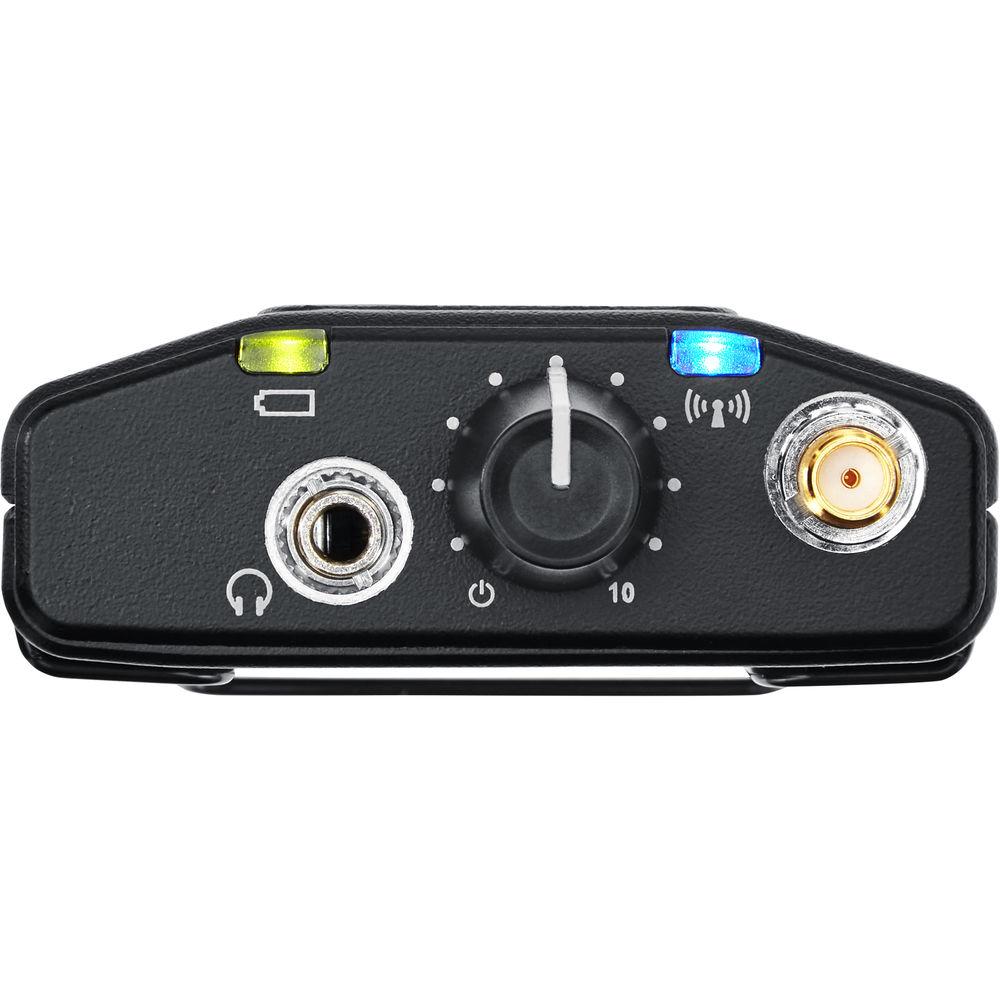

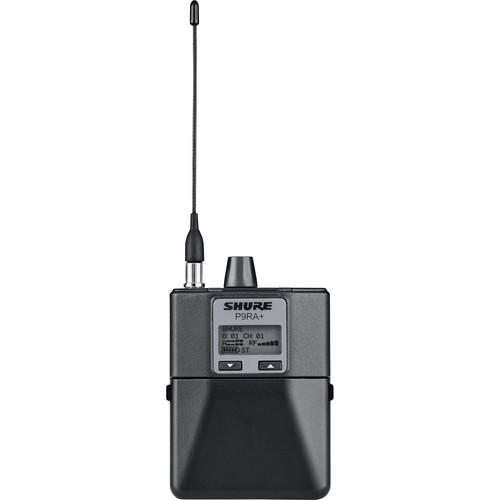

User Manual for Shure P9RA Wireless Bodypack Receiver Click to enlarge the picture
Contents of the user manual for the Shure P9RA Wireless Bodypack Receiver
- Product category: Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Receivers
 |
User manual for the Shure P9RA Wireless Bodypack Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The P9RA+ Wireless Bodypack Receiver from Shure is an updated version of the P9RA low profile, diversity stereo bodypack receiver for the PSM 900 wireless personal monitor system (sold separately). The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and offers improvements like more headroom, better stereo separation, and higher fidelity for robust RF performance and a cleaner, stronger signal with fewer dropouts and artifacts. With touring-grade features like full bandwidth RF scan, front-end RF filtering, and automatic RF gain control, the P9RA+ meets the needs of professional audio application of all sizes, including IEM and IFB applications.The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable 4-band parametric EQ is also provided. Shure's CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P9RA+ operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P9RA+ has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound-isolating earphones, which are designed specifically for use with PSM systems. - Updated Features
-
- Improved audio quality (without changing sound signature)
- Improved RF performance and reliability
- Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
- Updated firmware with new features and workflow improvements
- Improved Volume Limiter function (selectable ranges of limiting increased)
- 4-band parametric EQ added
- Power-Save Mode added (similar to feature on PSM300 series packs)
- Unparalled Audio Quality
-
- Bodypack receivers with advanced digital signal processing technology deliver more headroom, improved stereo separation, and higher audio fidelity
- Robust RF Performance
-
- P9RA+ bodypack receivers offer enhanced signal reception and range
- Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
- Setup and Operation Features
-
- CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
- Scan and Sync scans the RF environment with the bodypack and assigns an identified group and channel to your system over wireless IR link
- MixMode technology combines two separate audio channels for simultaneous listening in both ears, or can transmit two independent IFB program feeds
- Four-band parametric EQ gives you the choice to adjust frequencies for a fully customized sound
- Input EQ Presets give you the option to further tailor your sound, including the option to make the P9RA+ sound like the P9RA with a designated “Match” setting
- Rechargeability Options
-
- The SB900A lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
- The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery
- The SBC200 dual-docking charger works with SB900A, P9RA+, P10R+, QLX-D® Digital Wireless Systems, and ULX-D® Digital Wireless Systems, available with and without power supply
- The SBC220 networked dual-docking charger works with SB900A, PSM 900 (P9RA+ only), PSM 1000 (P10R+ only), QLX-D Digital Wireless Systems, ULX-D Digital Wireless Systems, and Axient Digital (AD1 and AD2 only), available with and without power supply. When the SBC220 is connected to a network, battery information for each transmitter can be viewed remotely
UPC: 042406542142 In the Box Shure P9RA+ Wireless Bodypack Receiver (G7: 506 to 542 MHz) - 2 x Antennas
- Removable AA Battery Adapter
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P9RA Wireless Bodypack Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure P9RA+E-G7 Specs | Frequency Band | G7: 506 to 542 MHz | | RF Filter Range | -3 dB at 30.5 MHz from the center frequency of each band | | RF Gain | Active: 31 dB (adjusts RF sensitivity to provide more RF dynamic range) | | RF Sensitivity | 2.2 μV (20 dB SINAD) | | Image Rejection | >90 dB | | Adjacent Channel Rejection | >70 dB | | Squelch Threshold | 22 dB SINAD (
