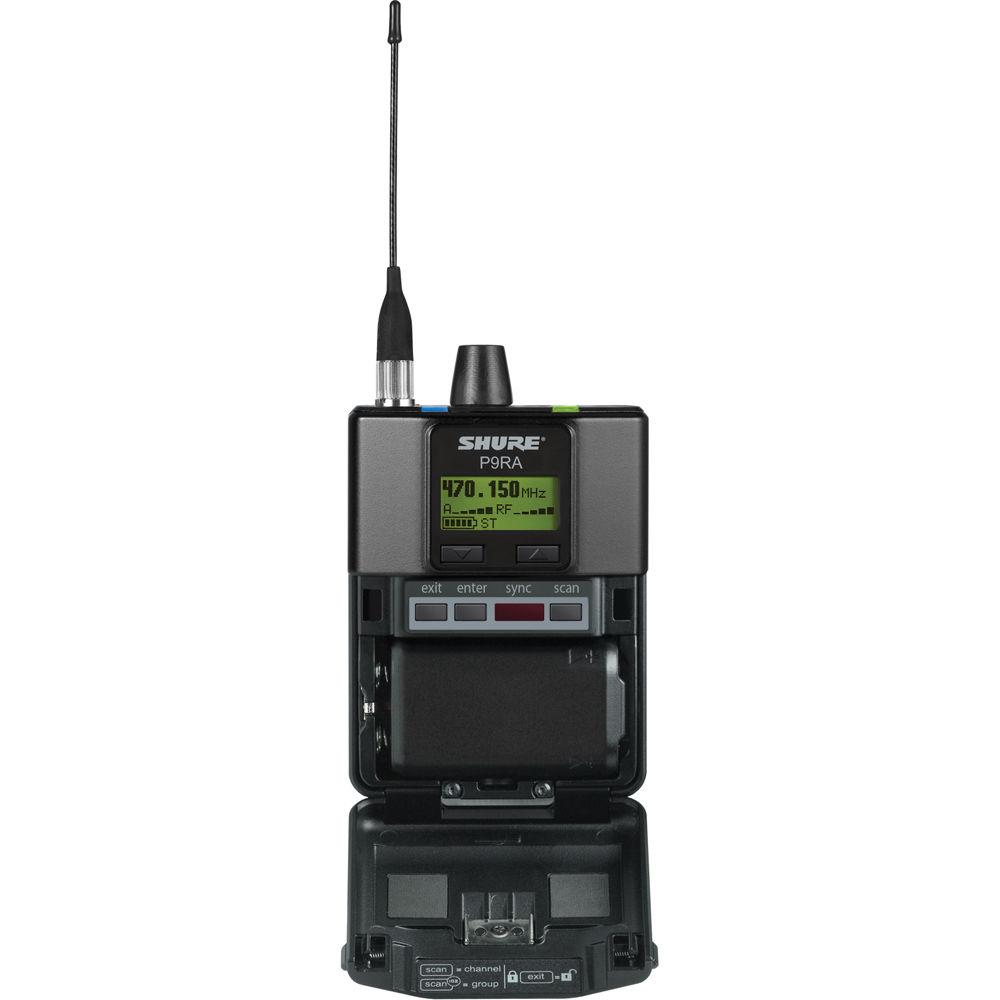

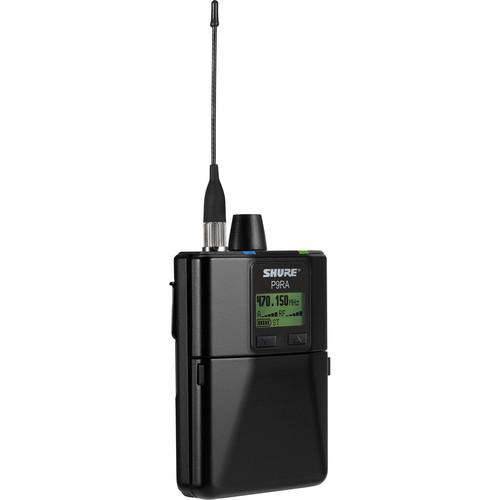

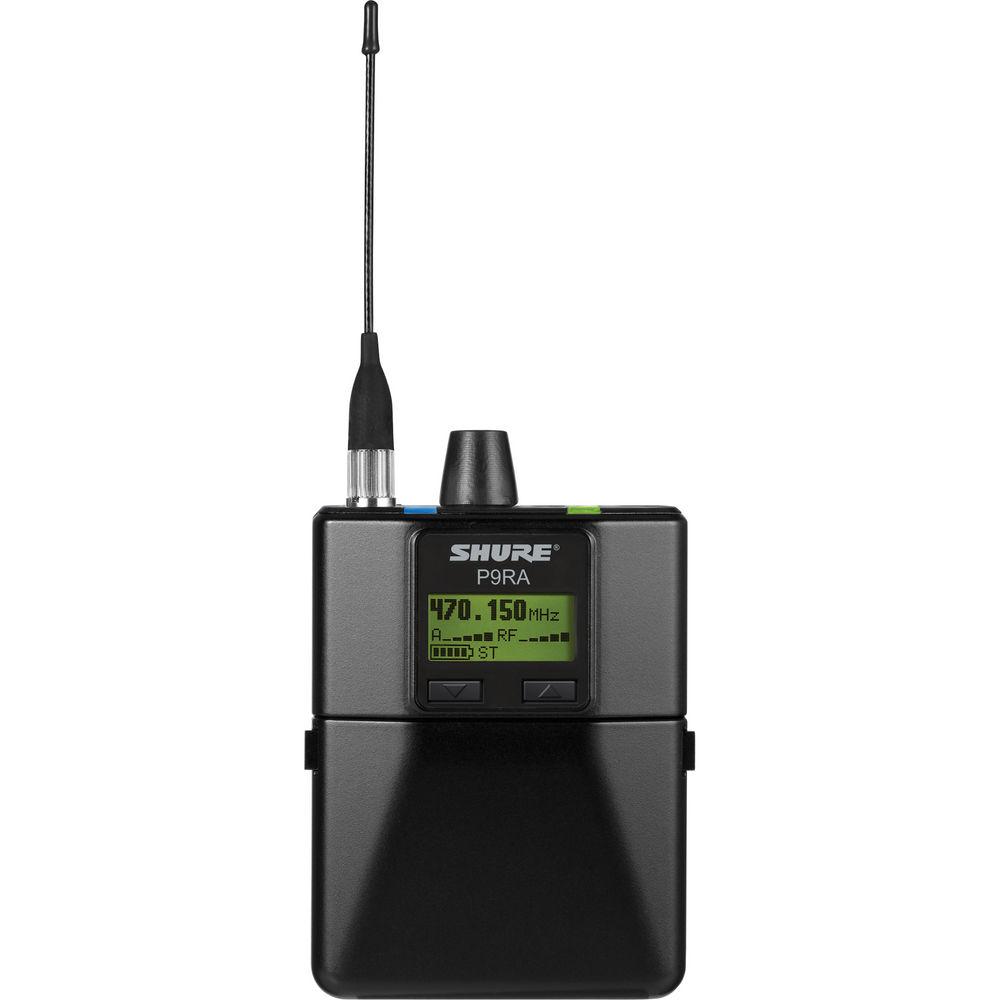

User Manual for Shure P9RA Wireless Personal Monitoring Receiver Click to enlarge the picture
Contents of the user manual for the Shure P9RA Wireless Personal Monitoring Receiver
- Product category: Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Receivers
 |
User manual for the Shure P9RA Wireless Personal Monitoring Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure P9RA Wireless Personal Monitoring Receiver is sold as part of the Shure PSM 900 Wireless Monitoring System, and available separately. The P9RA bodypack receiver features an enhanced digital stereo encoder that enhances audio detail and clarity, and patented Audio Reference Companding for convincing and wired-like audio quality.
Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels. A Scan and Sync function creates an IR link between the components for fast and easy syncing. RF muting provides easy setup without creating RF interference. RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload. MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously. - Advanced rechargeability option provides up to 10 hours of continuous use, with precision tracking of battery life and charge cycle details
- Ultra-thin, low profile bodypack allows discreet placement on the performer
- Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail
- With RF Scan, stand where the artist will be on stage and instantly check RF level
- Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously
- Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync
- Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
- Separate, easily visible audio and RF status indicator LED's
- Audio level and battery life metering
- Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
- Volume and balance controls
- Extruded aluminum construction for rugged dependability
UPC: 042406217835 In the Box Shure P9RA Wireless Personal Monitoring Receiver (G7: 506-542MHz) 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure P9RA Wireless Personal Monitoring Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure P9RA Specs | Filtering | Front-end RF filtering: Dual stage 3-pole Chebyshev | | RF | Active RF gain control: 31dB (adjusts RF sensitivity to provide more RF dynamic range)
RF Sensitivity: (20dB SINAD) 2.2 μV | | Squelch | (±3dB SINAD) 20dB SINAD | | Adjacent Channel Crosstalk | Adjacent channel rejection: > 70dB | | Attenuation | > 50dB (referenced to 30dB SINAD with -80dBm on channel signal at 45 kHz deviation of a 1 kHz tone
> 70dB for 12dB SINAD | | Blocking | > 80dB | | Audio Output | Audio Output Power (1kHz @ < 1% distortion, peak power, @32Ω): 100mW | | Minimum Load Impedance | 9.5 Ω | | Range (Boost/Cut) | High Boost
Selectable: +2dB, +4dB @ 10kHz | | Limiter | Selectable: 3-9 limits volume adjustment knob. Selected value analogous to volume knob increment. | | Battery | AA batteries: 4-6 hours (continuous use)
SB900 rechargeable battery: 10 hours (continuous use) | | Dimensions | 3.89 x 2.59 x 0.90" (99 x 66 x 23mm) | | Weight | 7.05 oz (200 g) with 2 AA batteries | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 11.024 x 5.354 x 3.228" |
