User Manual for Shure PA411 Antenna Combiner for PSM300 Click to enlarge the picture
Contents of the user manual for the Shure PA411 Antenna Combiner for PSM300
- Product category: Accessories Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Accessories
|
User manual for the Shure PA411 Antenna Combiner for PSM300 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

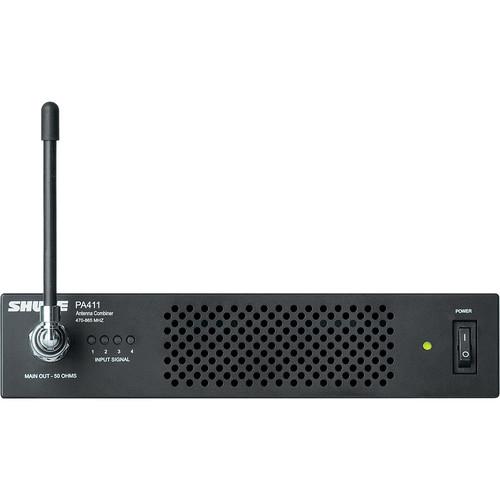

Product description The PA411 from Shure is a wideband antenna combiner that distributes DC power and RF signal for up to four Shure PSM300 transmitters (sold separately). It features a compact half-rack system that is used to reduce the amount of antennas and power supplies needed when using multiple systems in application such as for live stage, theater, rehearsals, and more. It features a RF LED indicator display to signal the presence of a signal and a signal overload. It is built with a front panel power switch. Included are rack-ears, 1/4 wave antenna, BNC bulkhead adapter, BNC cable and power supply. UPC: 042406398480 In the Box Shure PA411 Antenna Combiner for PSM300 Rack-Ears and Hardware 1/4 Wave Antenna BNC Bulkhead Adapter BNC Cable PS-45 In-Line Power Supply for Shure UA844US (120V) Power Splitter Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PA411 Antenna Combiner for PSM300 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PA411 Specs | | | Power Requirements | 15 VDC | | DC Output | 12 VDC (Ã4) | | Output Current | Combined Total from All DC Outputs: 1.4 A, maximum | | Operating Temperature Range | 0.40 to 145°F (-18 to 63 °C) | | Dimensions (H x W x D) | 1.7 x 7.0 x 7.8" (42 à 177 à 198 mm) | | Weight | 3.6 lb (1.62 kg) | | | | Connector Type | BNC | | RF Frequency Range | 470 to 865 MHz | | Maximum Input Level | 20 dBm per channel | | Input Port | Isolation: 50 dB, typical | | RF Input Power Operating Range | Per Channel: 4.5 to 15 dBm | | LED Indicator | r Minimum Detection Threshold: 3 dBm ± 1 dB | | RF Overload LED Threshold | 17.5 dBm ± 1 dB | | Impedance | 50 ohms | | | | RF Frequency Range | 470 to 865 MHz | | Output Intercept Point | OIP3: 48 dBm, typical | | Connector Type | BNC | | Impedance | 50 ohms | | Reverse Isolation | Output to Input: 40 dB, typical | | Gain | Input to any Output Port: -5 to 0 dB | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 18.3 x 14.7 x 3.8" |
