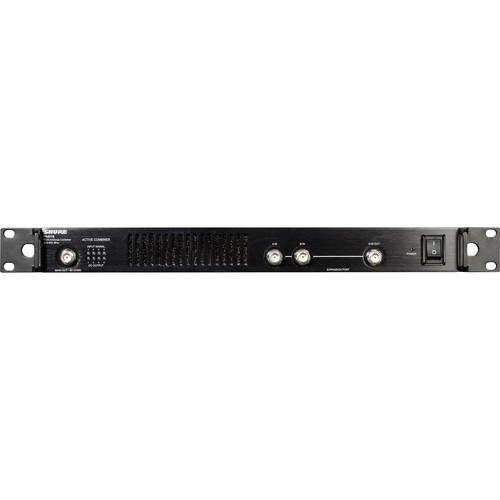

Product description The PA421B Antenna Combiner from Shure combines up to four PSM transmitters to a single antenna set. It can be used when multiple wireless systems are required for monitoring in sound reinforcement applications.The PA421B reduces rack clutter, optimizes RF management, and provides DC power to compatible IEM transmitters. LED indicators for signal presence and signal overload provide four input LED signals (green when active, off inactive). Also, a very quiet, temperature-sensitive fan keeps the unit cool. - Combines up to four PSM transmitters to a single antenna set
- Improved intermodulation artifacts for cleaner RF environment
- Reduces rack clutter
- Wideband operation 470 to 865 MHz
- Daisy-chain up to 2 combiners with the expansion port
- Provides DC power to compatible IEM transmitters
- LED indications of signal presence, signal overload and current draw
- Fan design significantly improves cooling and reduces ambient noise
- Provides +15V bias on RF inputs to power antennas
UPC: 042406472098 In the Box Shure PA421B Antenna Combiner (470 to 865 MHz) IEC Power Cord 4 x DC Power Output Cables (24") 4 x BNC Coaxial Cables (24") BNC Coaxial Cable (11") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PA421B Antenna Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PA421B Specs | Carrier Frequency Range | Wideband (470 to 865 MHz) | | Connector Type | BNC | | Impedance | 50 Ohms | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz | | Current Drain | 1.09 A (referenced at 100 VAC) (109 VA) | | Power Consumption | 98 W maximum | | | | Connector Type | BNC | | Configuration | Active | | Impedance | 50 Ohms | | RF Gain | 0 dB (
