User Manual for Shure PA421BX Antenna Combiner Click to enlarge the picture
Contents of the user manual for the Shure PA421BX Antenna Combiner
- Product category: Antenna Accessories Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Antenna Accessories
|
User manual for the Shure PA421BX Antenna Combiner contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

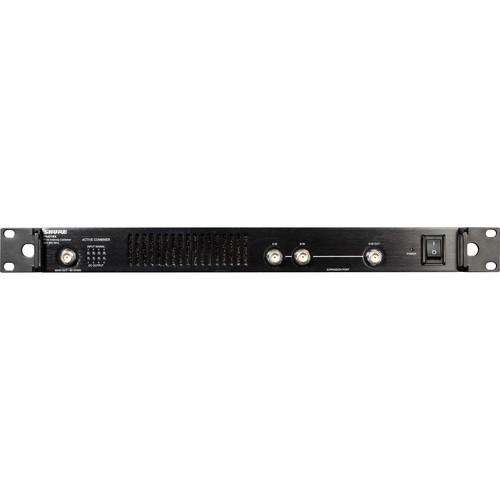

Product description The PA421BX Antenna Combiner from Shure combines up to four PSM transmitters to a single antenna set. It can be used when multiple wireless systems are required for monitoring in sound reinforcement applications.The PA421BX reduces rack clutter, optimizes RF management, and provides DC power to compatible IEM transmitters. LED indicators for signal presence and signal overload provide four input LED signals (green when active, off inactive). Also, a very quiet, temperature-sensitive fan keeps the unit cool. - Combines up to four PSM transmitters to a single antenna set
- Improved intermodulation artifacts for cleaner RF environment
- Reduces rack clutter
- Wideband operation 865 to 960 MHz
- Daisy-chain up to 2 combiners with the expansion port
- Provides DC power to compatible IEM transmitters
- LED indications of signal presence, signal overload and current draw
- Fan design significantly improves cooling and reduces ambient noise
- Provides +15V bias on RF inputs to power antennas
UPC: 042406485043 In the Box Shure PA421BX Antenna Combiner (865 to 960 MHz) IEC Power Cord 4 x DC Power Output Cables (24") 4 x BNC Coaxial Cables (24") BNC Coaxial Cable (11") Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PA421BX Antenna Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PA421BX Specs | Carrier Frequency Range | Wideband (865 to 960 MHz) | | Connector Type | BNC | | Impedance | 50 Ohms | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz | | Current Drain | 1.09 A (referenced at 100 VAC) (109 VA) | | Power Consumption | 98 W maximum | | | | Connector Type | BNC | | Configuration | Active | | Impedance | 50 Ohms | | RF Gain | 0 dB (
