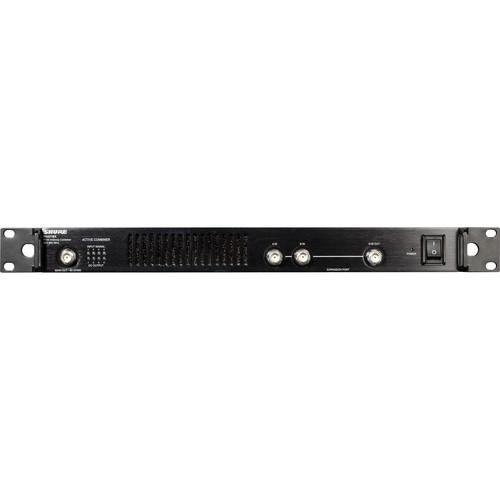

Product description The PA821BX Antenna Combiner from Shure is designed to optimize RF management for Shure PSM Personal Stereo Monitor systems. It can be used when multiple systems are required for monitoring on stage, theater, and rehearsal applications. The combiner efficiently optimizes up to eight PSM transmitters (sold separately) when racked in a central location, while also reducing rack clutter. It is built with LED indicators for signal overload and signal presence. Additionally, the unit's fan design improves thermal efficiency and ambient noise. - Combines up to eight PSM transmitters to a single antenna set
- Improved intermodulation artifacts for cleaner RF environment
- Daisy-chain up to 2 combiners with the expansion port
- LED indications of signal presence, signal overload
- Improved fan design significantly improves thermal efficiency and ambient noise
UPC: 042406485050 In the Box Shure PA821BX Antenna Combiners (865 to 960 MHz) IEC Power Cord 4 x 2' DC Power Output Cables 4 x 22" Coaxial Cables, BNC Terminated 11" Coaxial Cable, BNC Terminated Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PA821BX Antenna Combiners in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PA821BX Specs | RF Frequency Range | 865 to 960 MHz | | Impedance | 50 Ohms | | Operating Temperature Range | 0 to 145°F (-18 to 63°C) | | Power Requirements | 100 to 240 VAC, 50-60 Hz | | Current Drain | 1.59 A (referenced at 100 VAC) (159 VA) | | Power Consumption | 143 W maximum | | | | Connector Type | BNC | | Configuration | Active | | Impedance | 50 Ohms | | RF Gain | 0 dB (±2 dB) | | LED Indicator | Minimum Detection Threshold: 2.5 dBm
Overload Threshold: >24 dBm | | | | Connector Type | BNC | | Impedance | 50 Ohms | | | | Connector Type | BNC | | Configuration | Passive | | Impedance | 50 Ohms | | Insertion Loss | <4 dB | | RF Expansion Port Normal Operating Range | 33 dBm (2 W) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 18.3 lb | | Box Dimensions (LxWxH) | 27.3 x 17.5 x 3.9" |
