User Manual for Shure PGA181 Side-Address Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure PGA181 Side-Address Condenser Microphone
- Product category: Instrument Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Instrument Microphones
 |
User manual for the Shure PGA181 Side-Address Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure PG ALTA Microphones
Tailored with a frequency response for versatility, the PGA181 Side-Address Condenser Microphone from Shure features an unobtrusive, all-black body and includes a 15' XLR cable. Its rugged body assures it is at home both on stage and in studio, and is suitable for miking pianos, organs, vocals, string instruments, drums, and more. - Tailored microphone cartridge design for smooth and versatile reproduction of sound sources
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Industrial design with black metallic finish and grille for unobtrusive visual presence

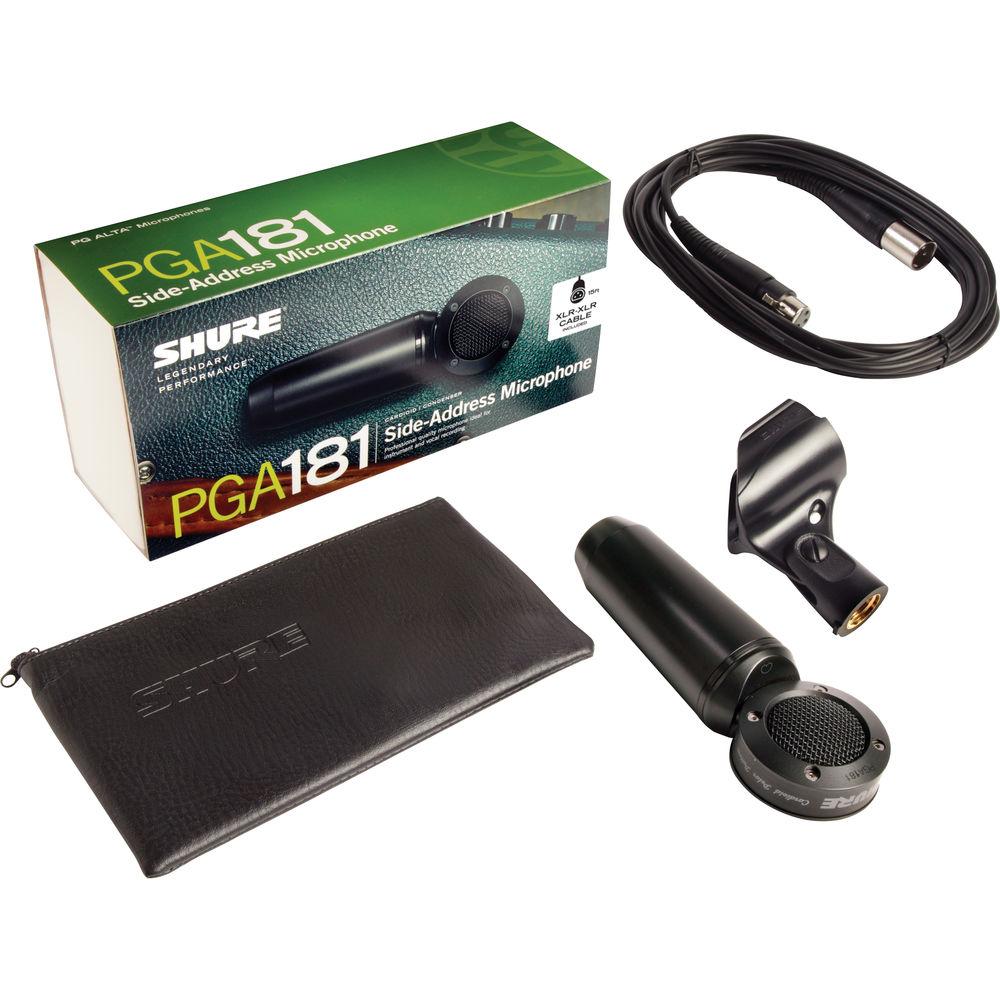

UPC: 042406396684 In the Box Shure PGA181 Side-Address Condenser Microphone (XLR Cable) Microphone Clip Zippered Pouch Mic Stand Adapter 15' (4.6 m) XLR Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGA181 Side-Address Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA-181 Specs | Type | Electret condenser | | Frequency Response | 50 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 120 ohms | | Sensitivity | 38 dBV/Pa (12.7 mV), 1 Pa=94 dB SPL (@ 1 kHz, open circuit voltage) | | Maximum SPL | 138 dB SPL (@ 1 kHz at 1% THD, 1 kOhm) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Housing | Cast Zinc | | Power Requirements | 48 VDC phantom power (4 mA) | | Connector | 3-pin XLR male | | Weight | 13.5 oz (383 g) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.4" |
