User Manual for Shure PGA27 Large-Diaphragm Side-Address Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Shure PGA27 Large-Diaphragm Side-Address Condenser Microphone
- Product category: Large Diaphragm Condenser Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Large Diaphragm Condenser
 |
User manual for the Shure PGA27 Large-Diaphragm Side-Address Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure PG ALTA Microphones

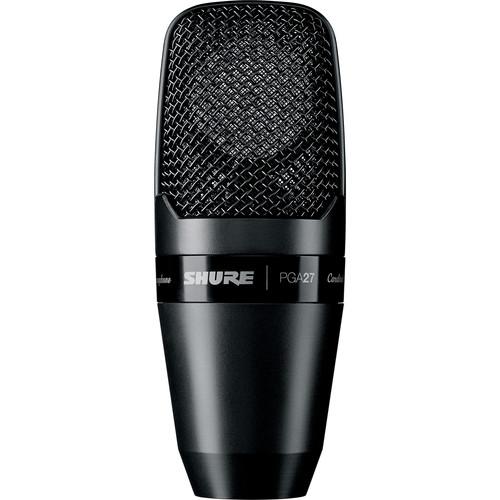

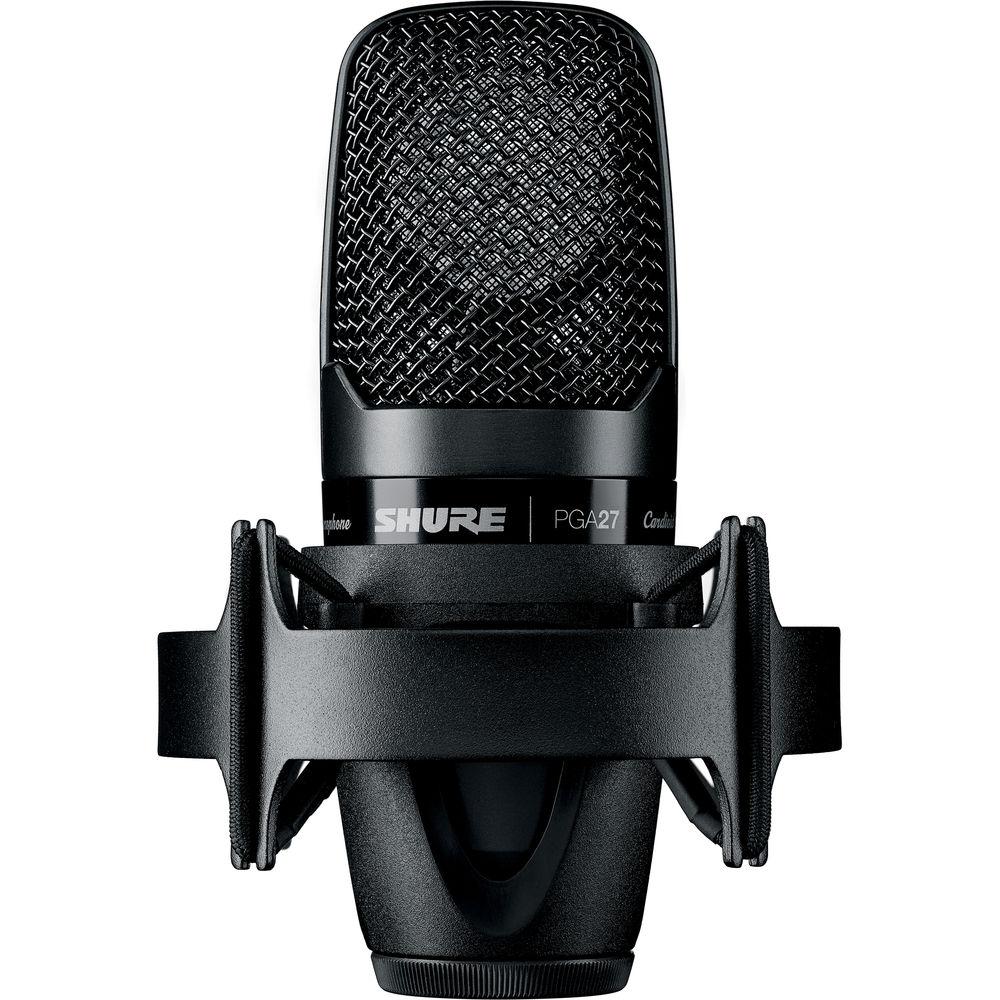

The PGA27 Large-Diaphragm Side-Address Condenser Microphone from Shure is tuned for capturing a variety of sources including vocals, acoustic instruments, and amplified sources. It features a high-pass filter to help eliminate unwanted low-frequency rumble and a -15 dB pad that allows you to place it in front of louder sources. A shockmount, stand adapter, and padded zipper bag are included. - Large-diaphragm capsule provides wider dynamic range for clear highs and strong lows
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Industrial design with black metallic finish and grille for unobtrusive visual presence
- High-pass filter for additional control of unwanted low-end signal
- -15 dB switchable attenuator for additional SPL handling

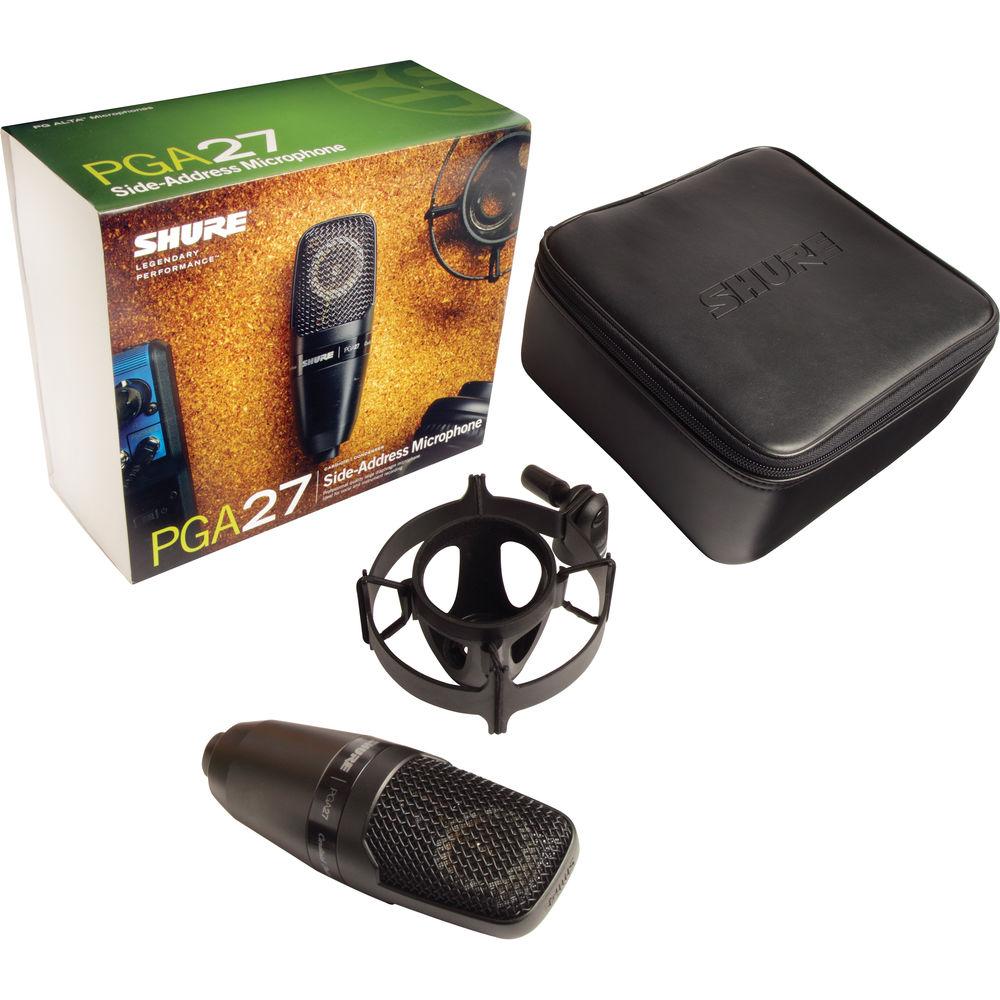

UPC: 042406396691 In the Box Shure PGA27 Large-Diaphragm Side-Address Condenser Microphone Shockmount Padded Zipper Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGA27 Large-Diaphragm Side-Address Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA -27 Specs | | | Operating Principle | Pressure Gradient | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 130 dB SPL | | Pad | -15 dB | | THD | 1% | | Impedance | 115 Ohms | | Sensitivity | 17.8 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.9 mA | | Operating Voltage | 48 V | | Operating Temperature | -20 to 165°F / -28.89 to 73.89°C | | Operating Humidity | 0 to 95% | | Length | 2.20" / 55.9 mm | | Diameter | 6.02" / 152.8 mm | | Weight | 1.00 lb / 453 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 10.2 x 8.9 x 4.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
