User Manual for Shure PGA56-LC Cardioid Dynamic Snare Tom Microphone Click to enlarge the picture
Contents of the user manual for the Shure PGA56-LC Cardioid Dynamic Snare Tom
- Product category: Instrument Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Instrument Microphones
 |
User manual for the Shure PGA56-LC Cardioid Dynamic Snare Tom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure PG ALTA Microphones

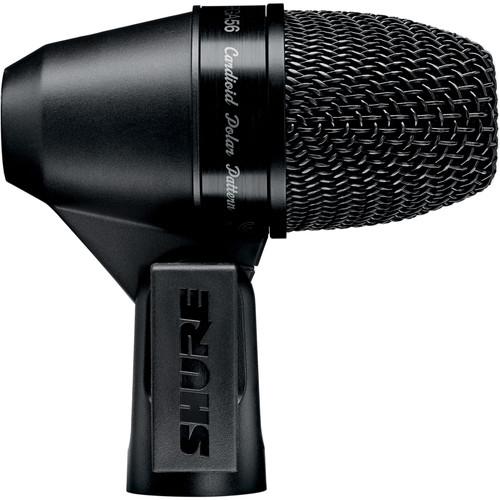

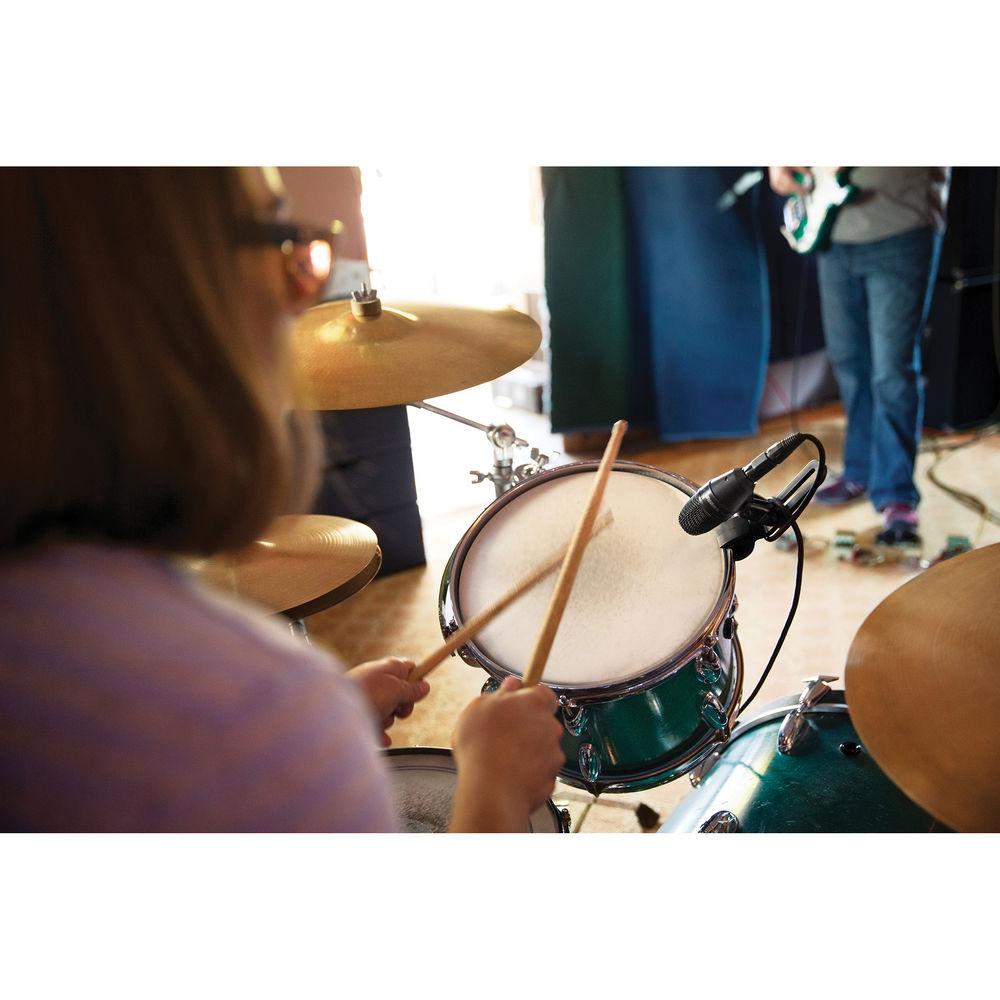

The PGA56-LC from Shure is a professional-quality dynamic snare/tom microphone with a cardioid polar pattern and a 3-pin XLR connector. It can be used to capture percussion-instrument audio in close-miking applications for live stage, theater, recording studios, houses of worship, and more. The PGA56-LC has a black metallic finish and a grille that provides an unobtrusive visual presence. The included drum mount allows it to be used for quick attachment to drum rims without an additional mic stand. This microphone comes with a zippered carrying pouch for additional storage and protection. - Tailored microphone cartridge design for clear reproduction of sound source
- Swivel joint with quick release latch with a design similar to bicycle component-locking technology for extremely quick and easy positioning
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise

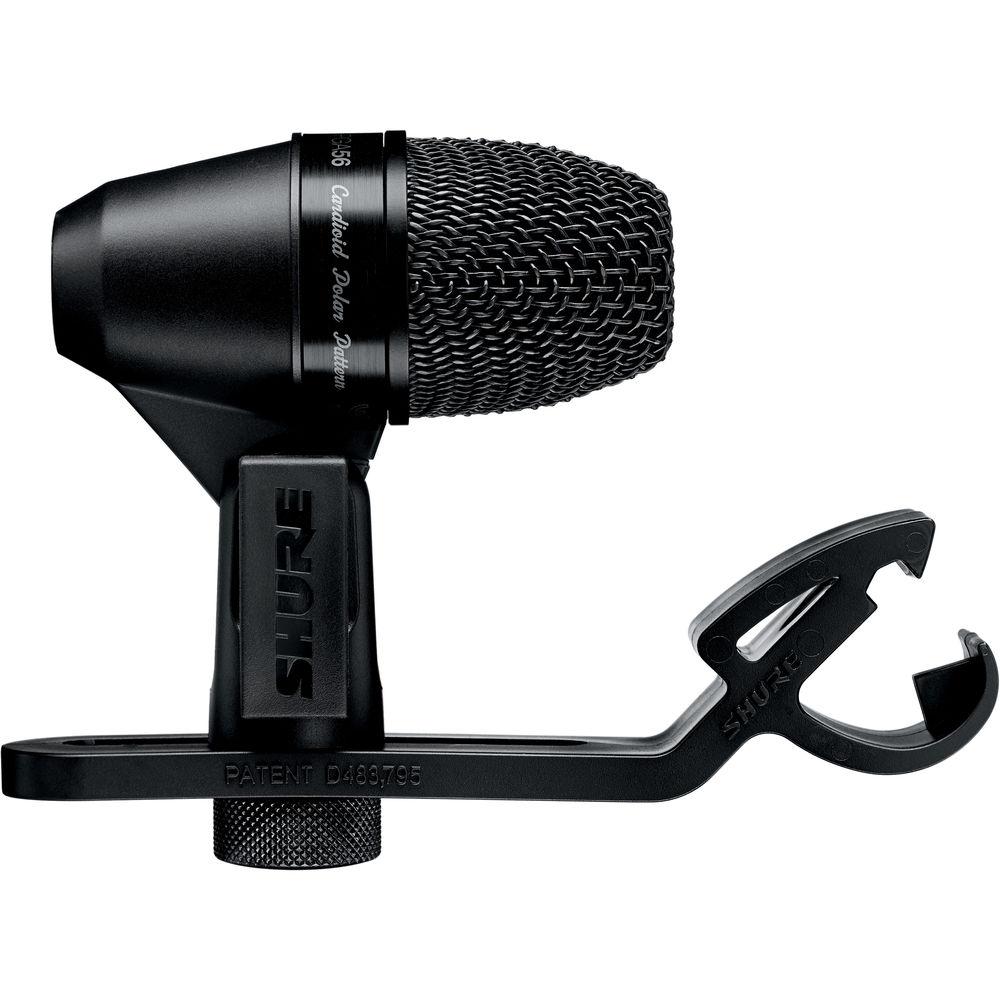

- Drum mount included for quick attachment to drum rims, no additional mic stand required
- Shure quality design and construction for durable performance in rigorous environments

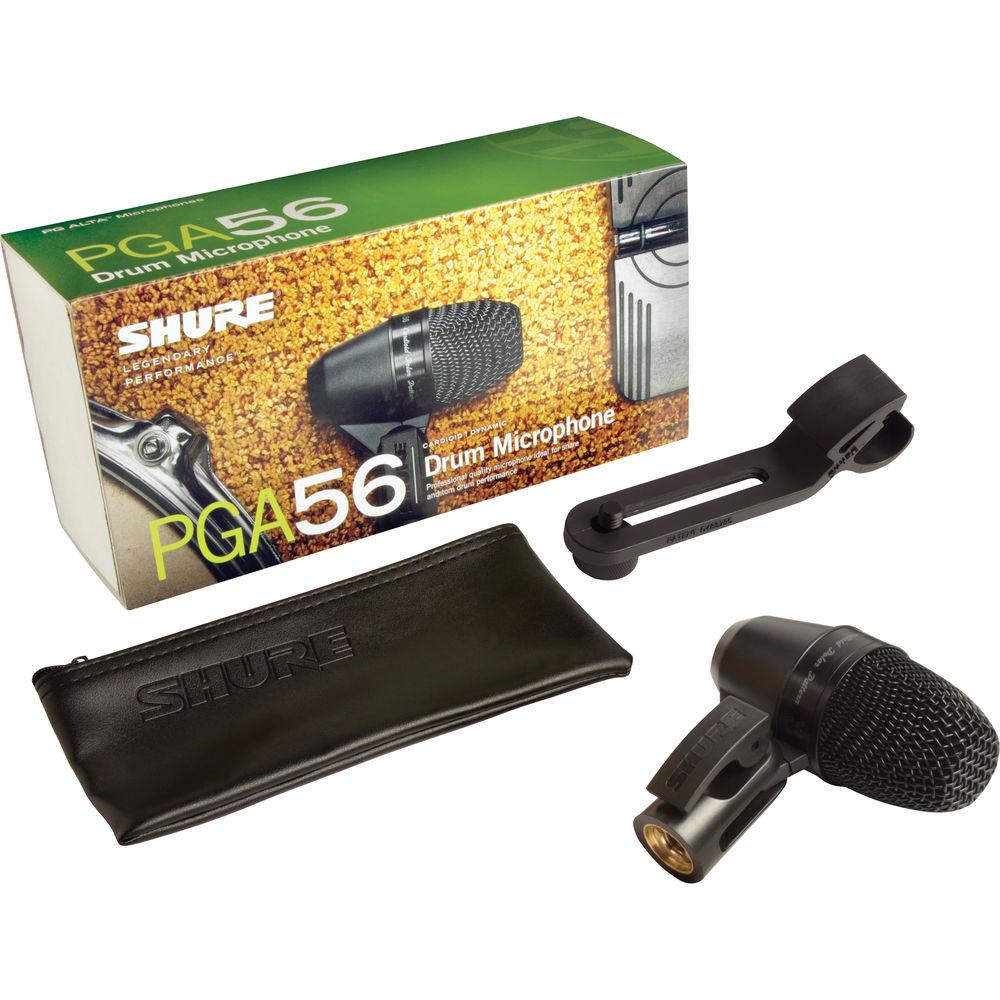

UPC: 042406396615 In the Box Shure PGA56-LC Cardioid Dynamic Snare/Tom Microphone (Less Cable) Zippered Carrying Pouch AP56DM Drum-Rim Mount Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGA56-LC Cardioid Dynamic Snare Tom Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA-56 Specs | Type | Dynamic (moving coil) | | Frequency Response | 50 Hz to 15 kHz | | Polar Pattern | Cardioid | | Output Impedance | 200 Ohms | | Cable | None | | Sensitivity | -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Output Connector | 3-pin XLR male | | Operating Temperature | -20 to 165°F (-29 to 74°C) | | Operating Humidity | 0 to 95% | | Dimensions | Not specified by manufacturer | | Weight | 10.12 oz (287 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 10.1 x 4.9 x 3.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
