Product description - Shure PG ALTA Microphones
The PGA81-LC from Shure is a professional-quality 48V instrument microphone with an updated industrial design that features a black metallic finish and grille. The mic offers an unobtrusive visual presence, and can be used to capture audio in several environments for applications such as stereo recordings, pianos/organs, acoustic string instruments, choirs, drums, percussion instruments, and much more. The PGA81-LC features a cardioid condenser capsule and is built with the same durability and performance attributes of other Shure microphones. In addition, the mic comes with a swivel adapter and a zippered carrying pouch. Phantom power is required. - Flat-response microphone cartridge design for clear reproduction of acoustic instrument sound sources in more sensitive environments
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Updated industrial design with black metallic finish and grille for unobtrusive visual presence
- Stand adapter for mounting to a microphone stand
- Zipper pouch included for additional protection during storage or transport
- Shure quality design and construction for professional performance in rigorous environments

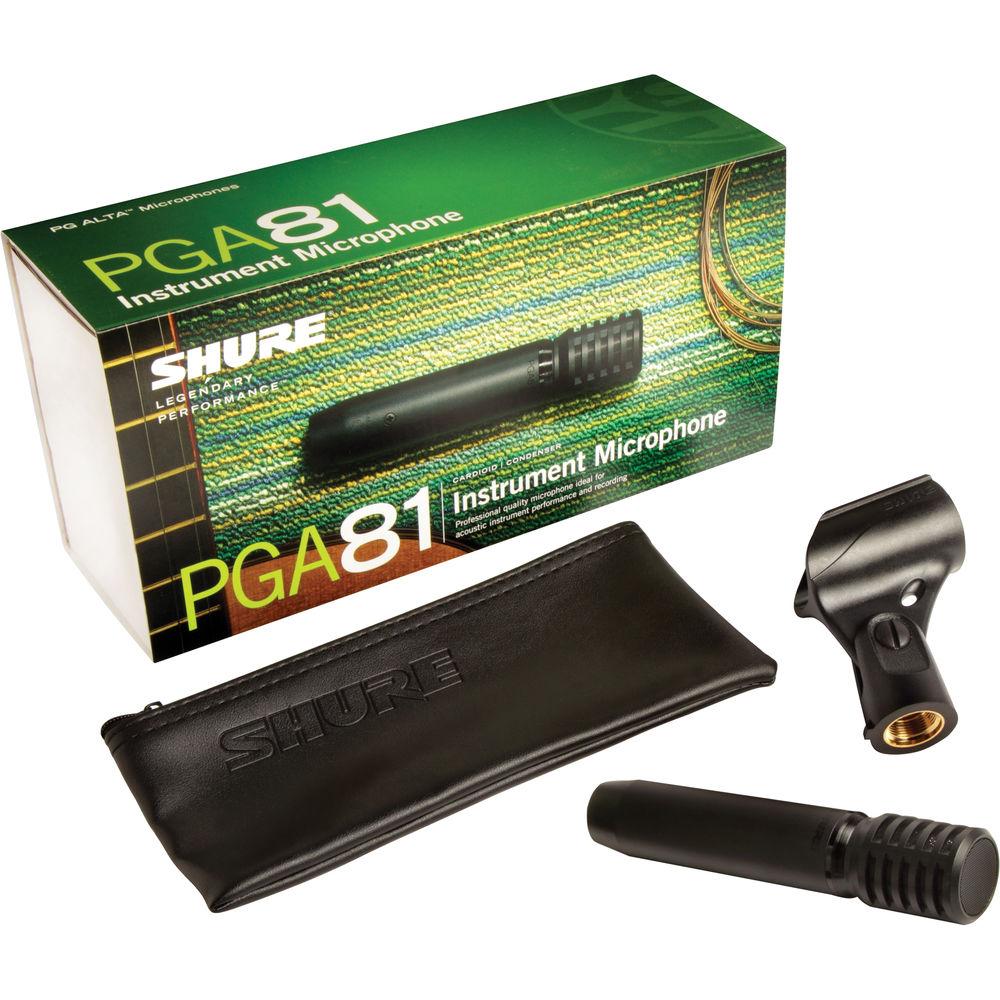

UPC: 042406396653 In the Box Shure PGA81-LC Cardioid Condenser Instrument Microphone (Less Cable) Zippered Carrying Pouch A25D - Stand Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGA81-LC Cardioid Condenser Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA81 Specs | Type | Electret condenser | | Frequency Response | 40 Hz to 18 kHz | | Polar Pattern | Cardioid | | Output Impedance | 600 ohms | | Cable | None | | Sensitivity | -48.5 dBV/Pa (3.8 mV) 1 Pa=94 dB SPL at 1 kHz, open circuit voltage | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Output Connector | 3-pin XLR male | | Power Requirement | 48 VDC phantom power (2.0 mA) | | Dimensions | Not specified by manufacturer | | Weight | 6.6 oz (186 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.0 x 5.0 x 3.4" |
