Product description - Shure PG ALTA Microphones

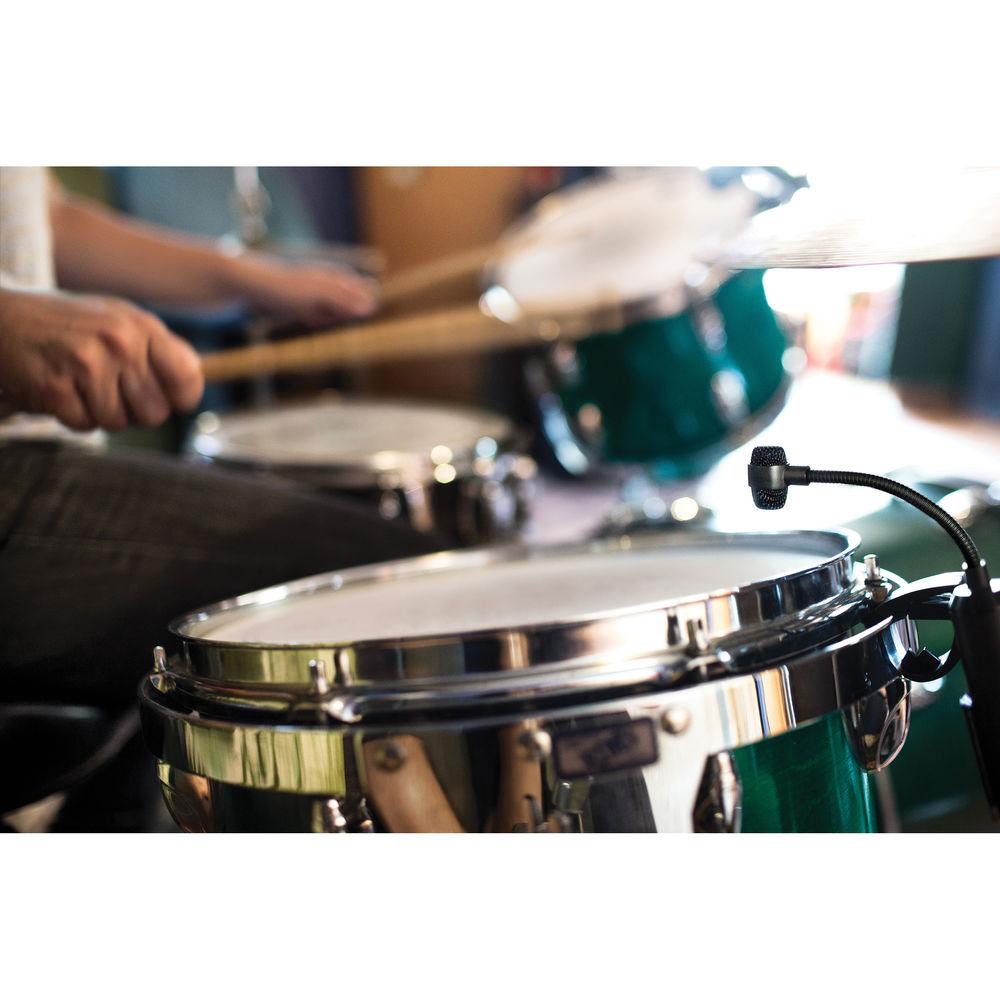

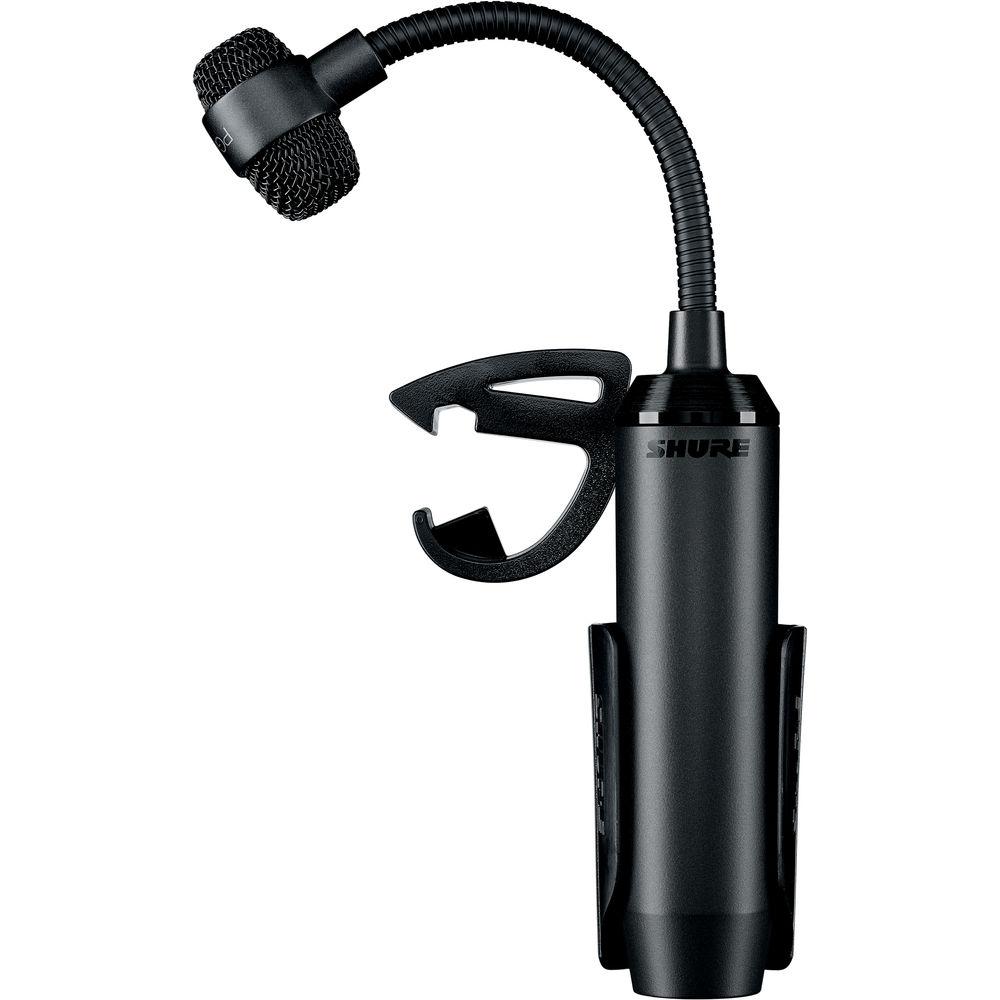

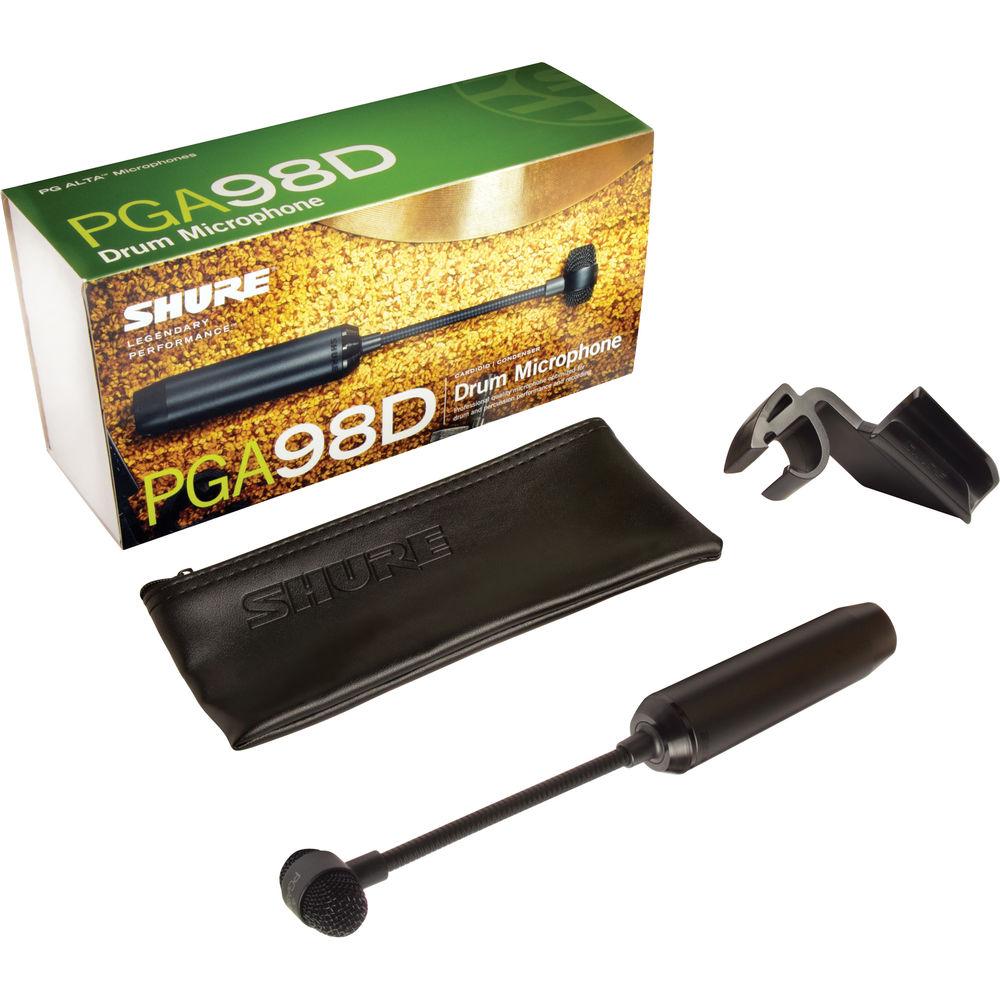

The PGA98D-LC from Shure is a professional-quality cardioid condenser microphone optimized for drums and percussion; also, it is designed with a drum mount, a flexible gooseneck, and an integrated preamplifier. It can be used to capture audio in applications for live stage, theater, recording studios, houses of worship, and more. The PGA98D-LC is built with a molded one-piece drum mount for fast, low-profile mounting and removal. The cast zinc housing provides durable construction with an updated design, which is now with a black metallic finish and grill. In addition, the integrated preamplifier provides a direct XLR connection for the 11-52 VDC phantom power required to power the microphone. The microphone cartridge of the PGA98D-LC is tailored for clear reproduction of drum and percussion sound sources with its 60 Hz to 20 kHz frequency response. The flexible gooseneck also makes accurate positioning of the mic an easy setup. Finally, a zipper pouch is included for additional protection during storage or transport. UPC: 042406396714 In the Box Shure PGA98D-LC Cardioid Condenser Drum Microphone (Less Cable) AP98DM Drum Mount Zippered Carrying Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGA98D-LC Cardioid Condenser Drum Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA-98D Specs | Type | Electret condenser | | Frequency Response | 60 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 850 ohms | | Cable | N/A | | Sensitivity | -52 dBV/Pa (2.51 mV) 1 Pa=94 dB SPL at 1 kHz, open circuit voltage | | Maximum SPL | 130 dB SPL 1 kHz, at 1% THD, 1 kOhms | | Self Noise | A-Weighted, Typical: 27 dB SPL-A | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Output Connectors | 3-pin XLR male | | Power Requirement | 11-52 VDC phantom power (2 mA) | | Housing | Cast Zinc | | Dimensions | Not specified by manufacturer | | Weight | 8 oz (210 g) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 10.1 x 5.0 x 3.4" |
