User Manual for Shure PGA98H-TQG Clip-On Cardioid Condenser Horn Mic with TA4F Click to enlarge the picture
Contents of the user manual for the Shure PGA98H-TQG Clip-On Cardioid Condenser Horn
- Product category: Instrument Microphones Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Instrument Microphones
 |
User manual for the Shure PGA98H-TQG Clip-On Cardioid Condenser Horn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description - Shure PG ALTA Microphones

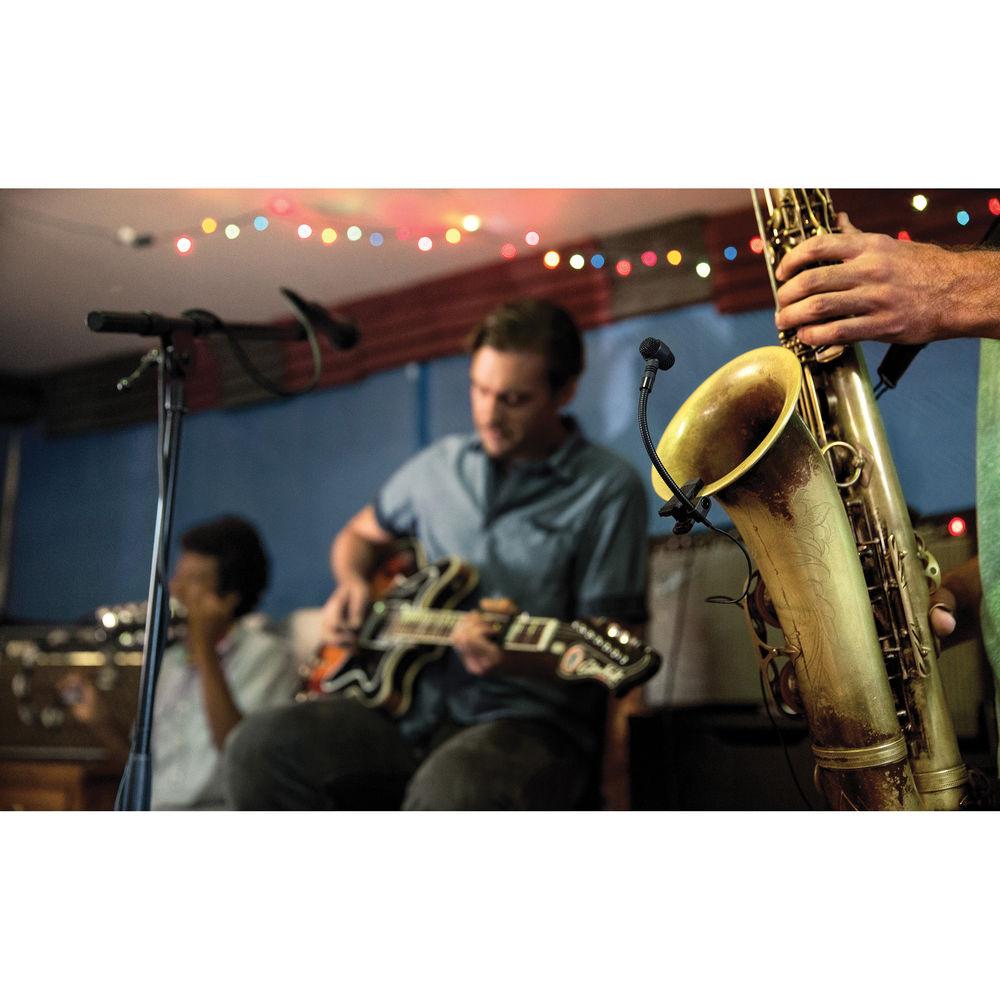

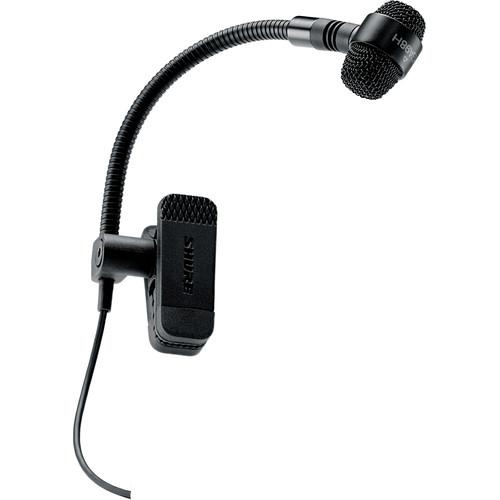

The Shure PGA98H-TQG is a professional-quality cardioid condenser gooseneck microphone that is optimized for woodwind and brass instruments. It can be used to capture audio in various environments for applications such as live stage, theater, recording studios, and more. The PGA98H-TQG's updated industrial design features a black metallic finish and grill; also, its flexible gooseneck design is featured with an integrated horn clamp and a TA4F connector, which is compatible with Shure wireless microphone systems (sold separately). The PGA98H-TQG includes a windscreen and a zippered pouch for protection during storage or transport. - Tailored microphone cartridge design for clear reproduction of wind instrument sound sources
- Flexible gooseneck design makes accurate positioning quick and easy
- Integrated horn clamp for quick and easy mounting
- Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
- Updated industrial design with black metallic finish and grill for unobtrusive visual presence
- Shure quality design and construction for durable performance in rigorous environments

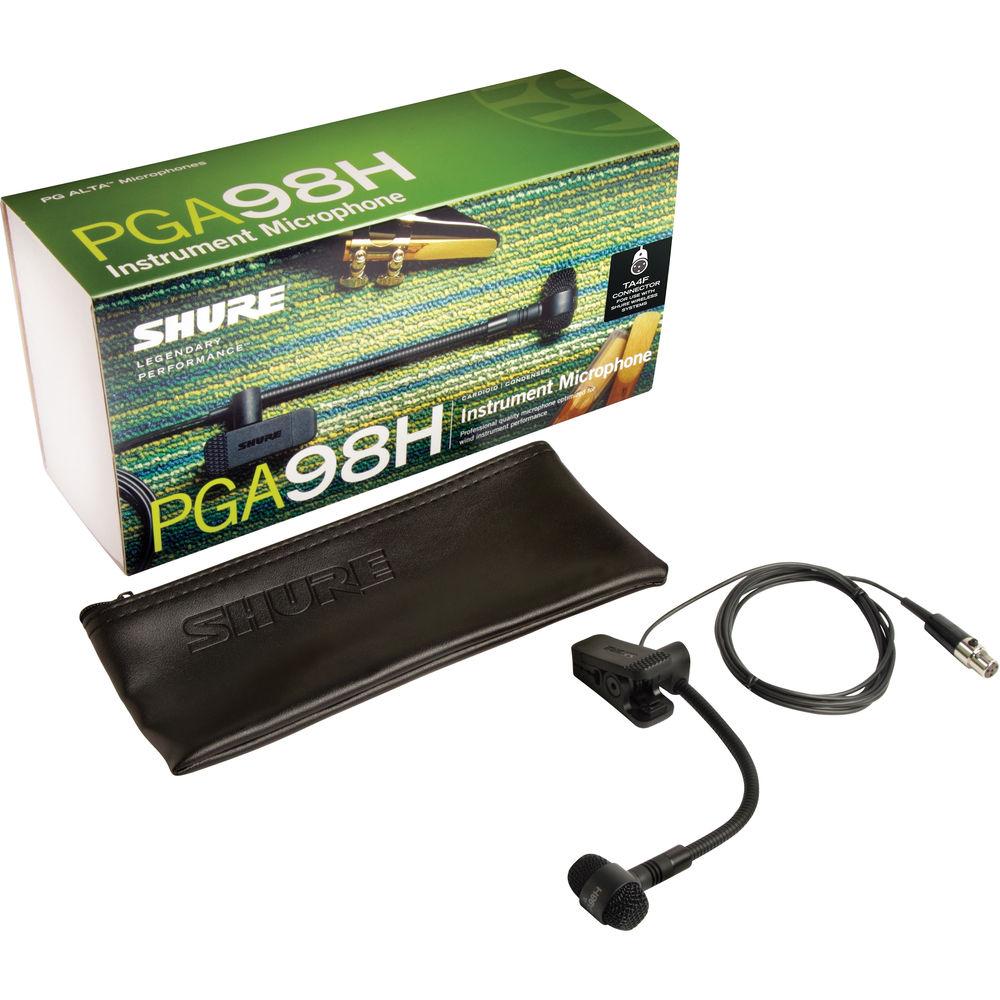

UPC: 042406396738 In the Box Shure PGA98H-TQG Clip-On Cardioid Condenser Horn Mic with TA4F Zippered Carrying Pouch Belt Clip TA4F Connector AP98WS Foam Windscreen Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGA98H-TQG Clip-On Cardioid Condenser Horn Mic with TA4F in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA98H Specs | Type | Electret condenser | | Frequency Response | 60 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 850 ohms | | Sensitivity | -52 dBV/Pa (2.51 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage | | Maximum SPL | 130 dB @ 1 kHz at 1% THD, 1 kOhms | | Self Noise | 27 dB SPL-A, A-weighted, typical | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Output Connector | 4-pin female TA4F miniature XLR connector | | Cable Length | N/A | | Housing | Cast Zinc | | Power Requirements | 11-52 VDC phantom power (2 mA) | | Dimensions | Not specified by manufacturer | | Weight | 9.9 oz (280 g) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.1 x 5.0 x 3.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
