Product description - Shure PG ALTA Microphones

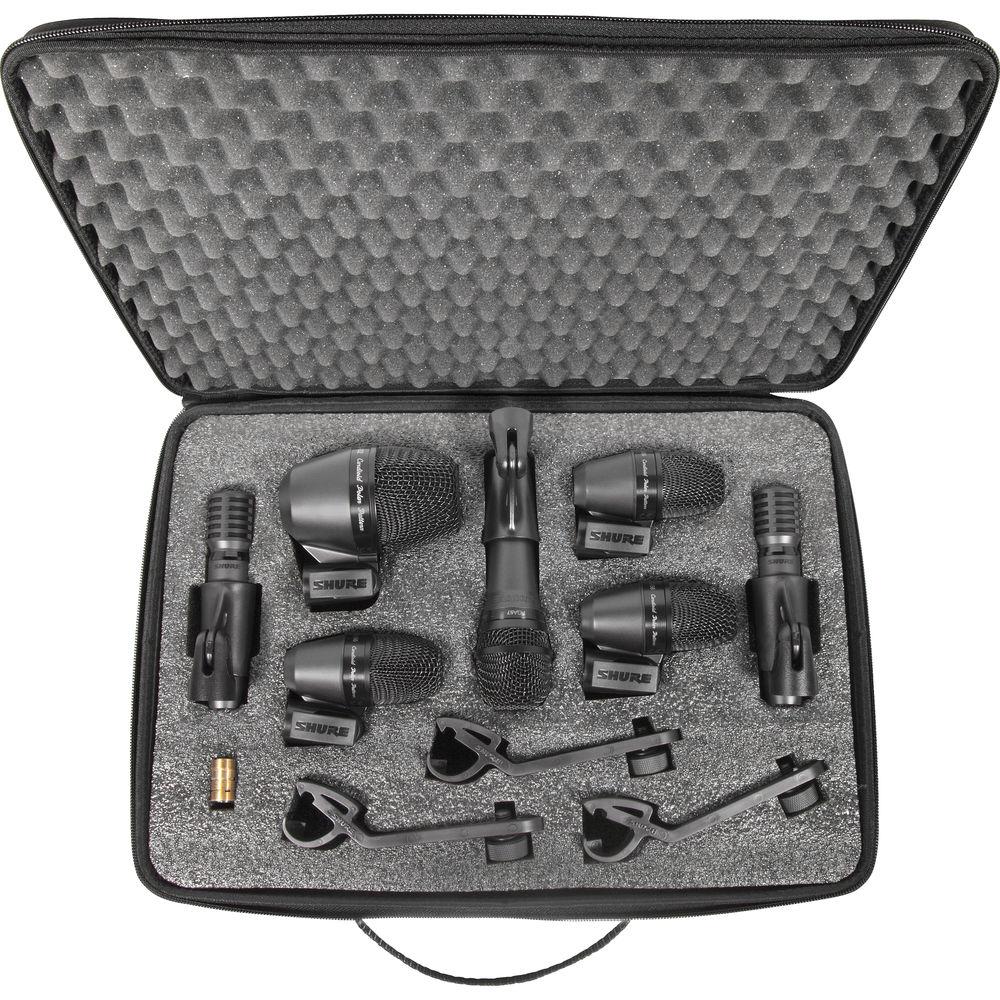

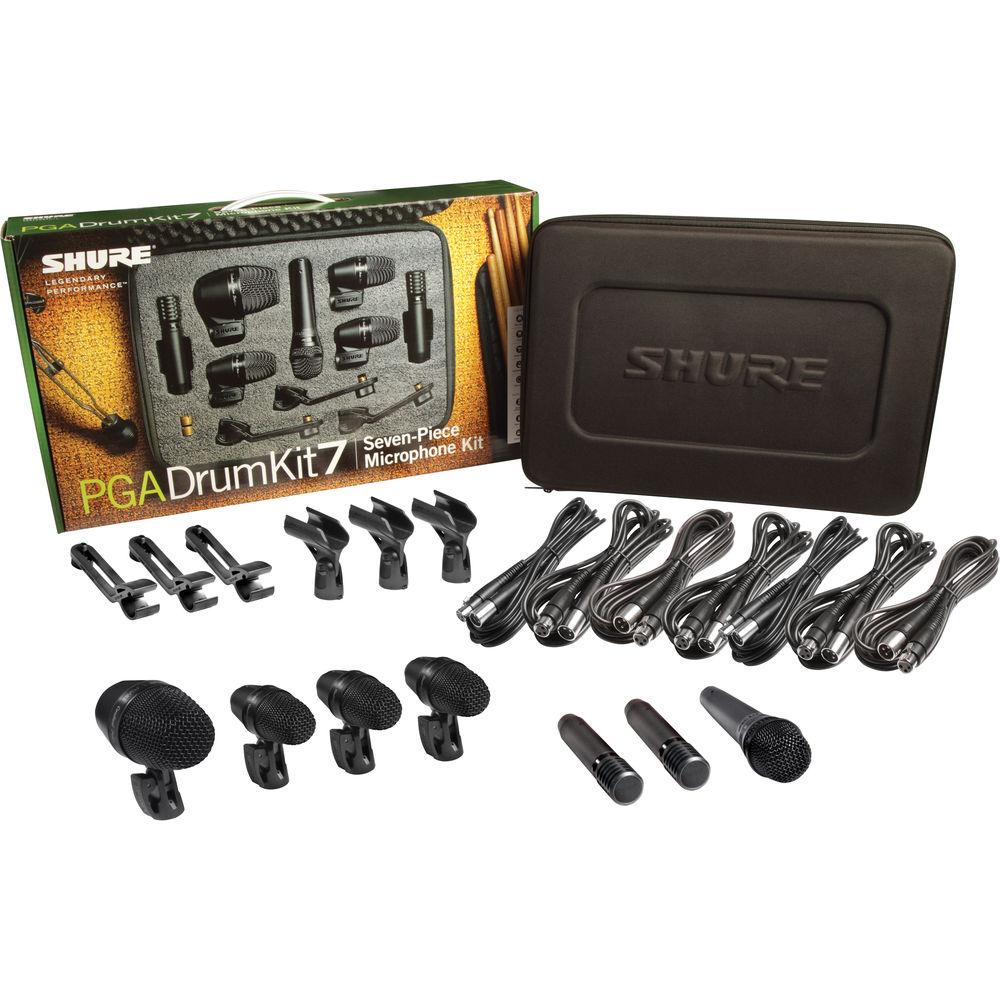

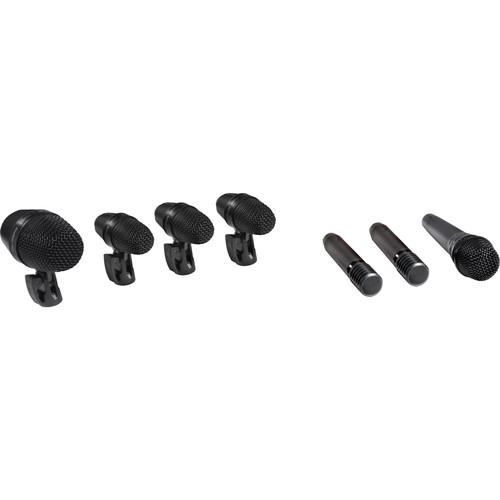

The PGADRUMKIT7 from Shure is a 7-piece professional-quality drum microphone kit designed to capture sound for close-mic kick drum, snare, and tom performance sets. It can be used in audio applications for live stage, theater, houses of worship, and more. Included in the PGADRUMKIT7 are one PGA52 kick drum microphone, three PGA56 drum microphones for toms and snare, one PGA57 instrument microphone, and two PGA81 condenser microphones. In addition, three drum mounts, three microphone clips, seven XLR-XLR cables, and a carrying case are also included. UPC: 042406396820 In the Box Shure PGADRUMKIT7 7-Piece Drum Microphone Kit PGA52 Microphone 3 x PGA56 Microphones PGA57 Microphone 2 x PGA81 Microphones 3 x A25D - Stand Adapter 3 x AP56DM Break-Resistant Drum Rim Mounts 7 x 15' 3-Pin XLR Cables Zippered Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGADRUMKIT7 7-Piece Drum Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PGA-Drum Specs | Type | Dynamic (moving coil) | | Frequency Response | PGA52: 50 Hz to 15 kHz
PGA56: 50 Hz to 15 kHz
PGA57: 70 Hz to 15 kHz
PGA81: 40 Hz to 18 kHz | | Polar Pattern | Cardioid | | Output Impedance | PGA52: 150 ohms
PGA56: 200 ohms
PGA57: 150 ohms
PGA81: 600 ohms | | Cable | None | | Sensitivity | PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA56: -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA81: -48 dBV/Pa (3.8 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Output Connector | 3-pin XLR male | | Power Requirements | PGA52: N/A
PGA56: N/A
PGA57: N/A
PGA81: 48 VDC phantom power (2.0 mA) | | Operating Temperature | -20 to 165°F (-29 to 74°C) | | Operating Humidity | 0 to 95% | | Dimensions | Not specified by manufacturer | | Weight | PGA52: 16.01 oz (454 g)
PGA56: 10.12 oz (287 g)
PGA57: 9.9 oz (280 g)
PGA81: 6.6 oz (186 g) | | | | Package Weight | 12.85 lb | | Box Dimensions (LxWxH) | 22.5 x 13.0 x 4.2" |
