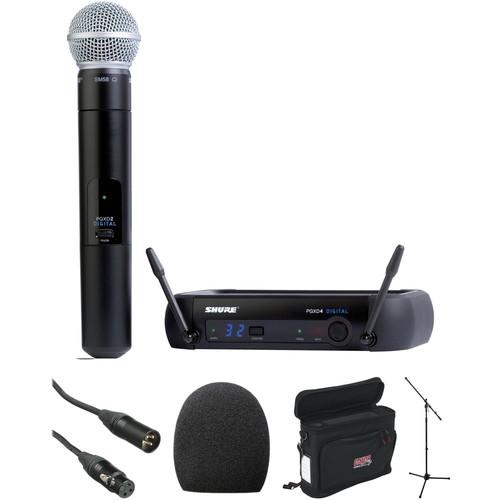

User Manual for Shure PGXD24 SM58 Wireless Handheld Microphone Basic Package Kit Click to enlarge the picture
Contents of the user manual for the Shure PGXD24 SM58 Wireless Handheld Microphone
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure PGXD24 SM58 Wireless Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure PGXD24/SM58 Wireless Handheld Microphone Basic Package Kit from includes a Shure PGXD4 wireless receiver, a PGXD2/SM58 handheld wireless microphone transmitter, a Gator Cases GM-1W wireless mobile pack, an Auray tripod microphone stand with a fixed boom, a premium microphone cable, a mic clip, and a carrying pouch. It combines the convenience of a single-touch remote-channel setup with the reliability of 24-bit digital operation, which can be used to capture audio for use in halls, houses of worship, clubs, theaters, restaurants, bars, and more. The PGX system delivers clean RF (Radio Frequency) performance, stable channel operation, and low noise over a stable 900 MHz bandwidth. The rear panel of the receiver features XLR and 1/4" outputs and its Scan & Sync feature automatically sets up the transmitter and receiver for stable operation. Furthermore, the black Gator Cases GM-1W wireless mobile pack is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system, and the zippered case has sufficient space for a lavalier microphone, cables, and accessories. In addition, the Auray tripod mic stand with a fixed boom features a 31.5" boom arm and is built with all-steel construction. An ergonomic twist-action clutch helps adjust the height of the stand. Finally, the kit's premium XLR cable and black foam windscreen round out the package, which is suitable for capturing vocal or speech performances for just about any occasion. - Shure PGXD Digital Series Wireless Handheld Microphone System with SM58 Capsule The Shure PGX Digital Series Wireless Microphone System combines the convenience of single-touch remote channel setup with the reliability of 24-bit digital operation. Clean RF (Radio Frequency) performance, stable channel operation and low noise are all attributed to the PGX Digital's 24-bit / 48 kHz digital operation. The user-friendly yet rugged design of the Shure PGX system measures up to provide years of reliable use in halls, houses of worship, clubs, theaters, restaurants, bars, etc. This system includes the receiver and handheld microphone transmitter with SM58 capsule. The receiver operates over a stable 900 MHz bandwidth. The result minimizes noise and RF interference. The rear panel features XLR and 1/4" phone outputs. Its Scan & Sync feature automatically sets up the transmitter and receiver for stable operation.
Pure Digital Sound - 24-bit / 48 kHz digital technology for incredibly accurate sound
- 20 Hz to 20 kHz frequency range captures every detail
- Wide selection of rugged Shure microphones
Rock-Solid Wireless Reliability - True digital diversity for rock-solid wireless signal
- 900 MHz operation - free from TV signal interference
Simple Setup and Operation - Scan & Sync instantly and accurately sets up the system
- One system operates everywhere
UPC: 042406190633 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558267 - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 - Gator Cases GM-1W Wireless Mobile Pack The Gator Cases GM-1W Wireless Mobile Pack (Black) is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system. The zippered case reveals sufficient space for lavalier microphones, cables and accessories. The foam padded interior protects the gear from shock while remaining lightweight and rugged. The receiver is functional while still in the bag. The front and back unzip for easy access. The bag is carried by a removable, adjustable shoulder strap and padded carrying handles.
- Construction
-
- 600 denier nylon
- Foam padded interior
- Zipper closure
- Access for antenna to be extended while in the case
- Space for lavalieres, cables and wireless mic with transporter
- Mounted front and rear access unzips for easy set up in the field
- Carrying options
-
- Removable, adjustable shoulder strap
- Padded carrying handles
- Compatible with most single microphone wireless systems
UPC: 716408503424 - Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
In the Box - PGXD Digital Series Wireless Handheld Microphone System with SM58 Capsule ywzbwrazvqdvrvexxzvwzvaufwryeyxxeezzwd
- Receiver
- Handheld Transmitter with SM58 Capsule
- Carrying Case
- Mic Clip
- Limited 1-Year Warranty
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black ywzbwrazvqdvrvexxzvwzvaufwryeyxxeezzwd
- Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
- Gator Cases - GM-1W Wireless Mobile Pack
- Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PGXD24 SM58 Wireless Handheld Microphone Basic Package Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure PGXD Digital Series Wireless Handheld Microphone System with SM58 Capsule
| | | Box Dimensions (LxWxH) | 17.4 x 12.6 x 4.2" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 6' / 1.8 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 3.5 x 0.9 x 0.2" | - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black)
| Compatible Mic Diameter | 1.62" / 4.13 cm | | Material | Foam | | | | Box Dimensions (LxWxH) | 2.6 x 2.6 x 1.8" | - Gator Cases GM-1W Wireless Mobile Pack
| Material | Exterior: 600 denier nylon
Interior: Foam padded | | Type of Closure | Zippers | | Exterior Dimensions | 15.35 x 5.0 x 11.42" (38.99 x 12.7 x 29cm) (LxDxH) | | Interior Dimensions | 8.5 x 2.0 x 8.5" (21.59 x 5.08 x 21.59cm) (LxDxH)
Mic Drops: 8.25" (20.96cm) | | Carrying/Transport Options | Shoulder strap
Padded carrying handles | | Weight | 4.4 lbs (2.0kg) | | | | Box Dimensions (LxWxH) | 14.724 x 10.315 x 4.882" | - Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" |
