Product description - Shure PSM 1000 Personal Monitor System

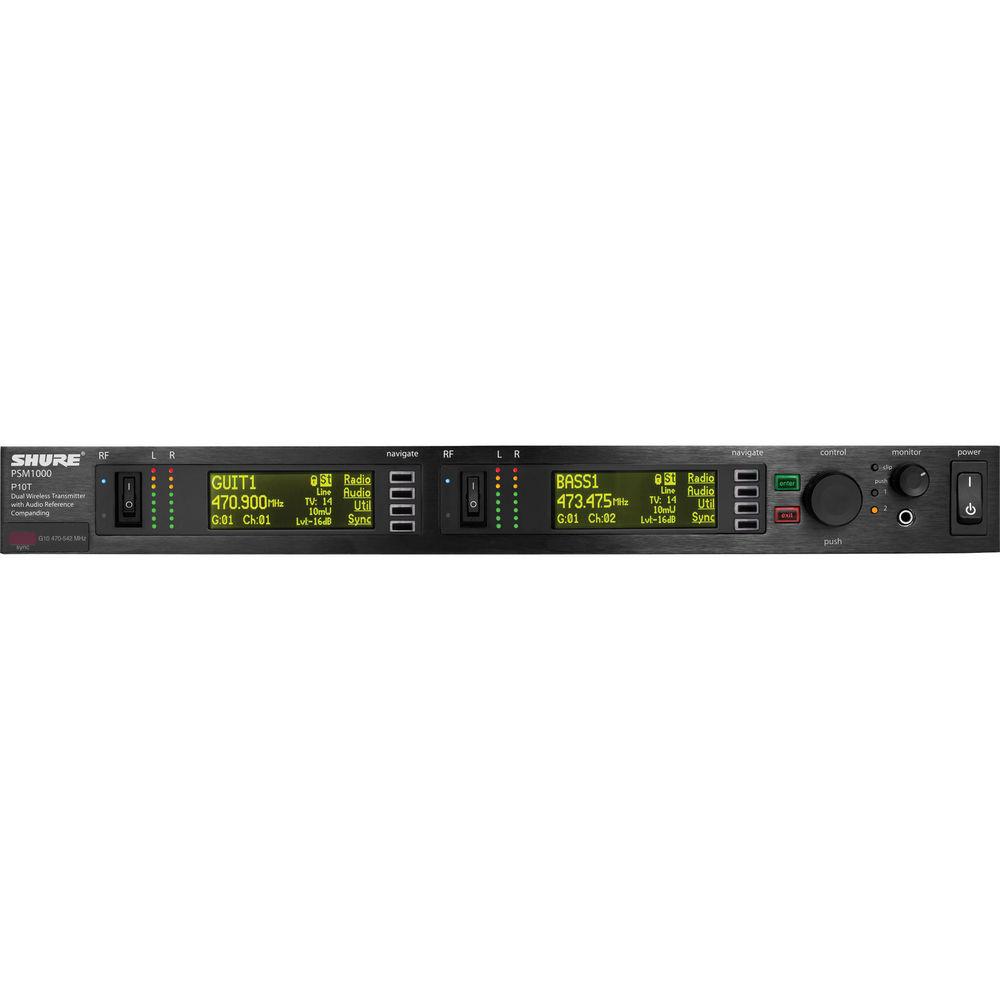

The Shure PSM 1000 Personal Monitor Dual System is a professional wireless IEM monitoring system intended for touring, live venue installations, houses-of-worship, broadcast applications and anywhere high-grade wireless monitoring is necessary. The PSM 1000 features the P10T full-rack dual wireless transmitter and a pair of P10R diversity bodypack receivers.The transmitters touring-grade all metal housing is sure to handle the rigors of life on the road. The P10T also features Ethernet networking and control via the optional Wireless Workbench software, 72MHz tuning bandwidth, precision front-end RF filtering for enhanced signal stability and much more. The P10R bodypacks feature diversity reception for stable, reliable signal. The PSM 1000 is completely backwards compatible with all PSM 900 series monitoring components. - Full-rack, dual channel wireless transmitter housed in a touring-grade, all-metal chassis
- Networked control via Ethernet connection vastly simplifies setup for high channel counts and enables remote control via Wireless Workbench software
- Internal power supply with IEC in/out ports enables easy power chaining in the rack
- Backwards compatibility with PSM 900 receivers for simplified inventory management

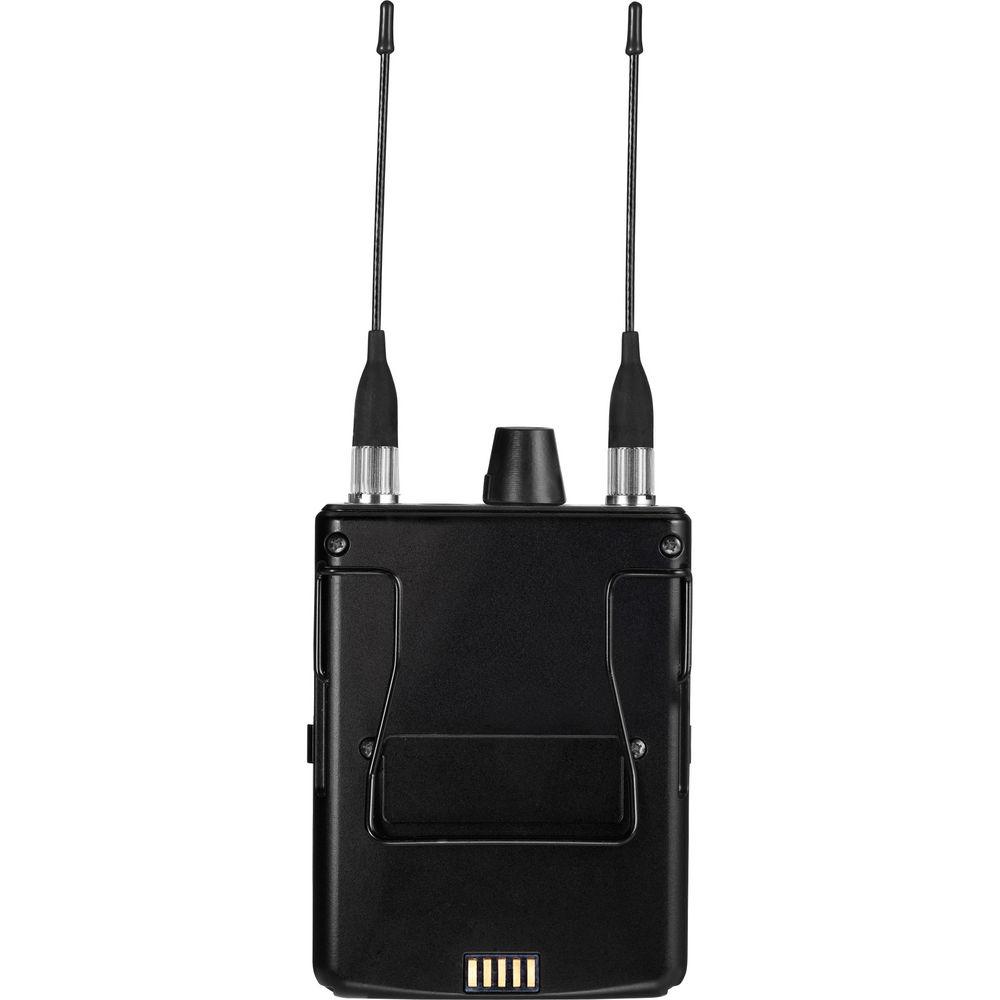

- Diversity bodypack dramatically improves signal reception and increases range
- Precision front-end RF filtering reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and less audible artifacts
- CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
- Backward compatible with PSM 900 transmitters and receivers (in the same frequency range) to facilitate streamlined inventory management for rental and touring
Robust RF Performance and Networked Control - Up to 72 MHz Tuning Bandwidth (region dependent) provides flexibility in today's crowded and unpredictable RF environments.
Networked Frequency Coordination Simplifies Setup for High Channel Counts - Full bandwidth scan from the P10R bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen
- Send the identified frequencies and spectrum plot to the P10T transmitter over IR sync
- Program compatible frequency assignments from one transmitter to every other P10T transmitter on the network over Ethernet connection for vastly simplified and streamlined setup
- Spectrum display provides a front-panel spectrum plot with selectable zoom
- Fully compatible with Wireless Workbench 6
- Provides advanced RF spectrum plotting, comprehensive frequency coordination, and live monitoring and adjustment of transmitter settings:
- RF mute enable/disable- RF output power adjustments
- Aux/line level- Audio input level
- Channel/device name edit - Advanced Rechargeability Option
- The SB900 lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
- The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery

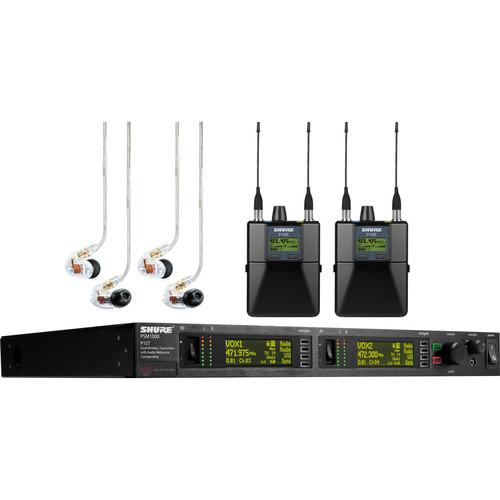

UPC: 042406204583 In the Box Shure PSM 1000 Personal Monitor Dual System P10R Wireless Bodypack Receiver for PSM1000 (G10: 470-542MHz) vsyqavfzsadssrbrywvqavtcryawrstuwzdeyf 2 x P10T Full-Rack Dual-Channel Wireless Transmitter (G10: 470 to 542 MHz) 2 x SE425 Sound Isolating In-Ear Stereo Headphones (Clear) 2 x 1/2 Wave Antennas 4 x AA Batteries 2 x Antenna Cables IEC Power Cable & IEC Extension Cable Ethernet Network Cable Zippered Bag 2 x Antenna Hole Plugs 4 x Rack Mounting Screws with Washers 2 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PSM 1000 Personal Monitor Dual System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure PSM 1000 Specs | | | Package Weight | 20.65 lb | | Box Dimensions (LxWxH) | 23.2 x 17.7 x 6.7" |
