Product description

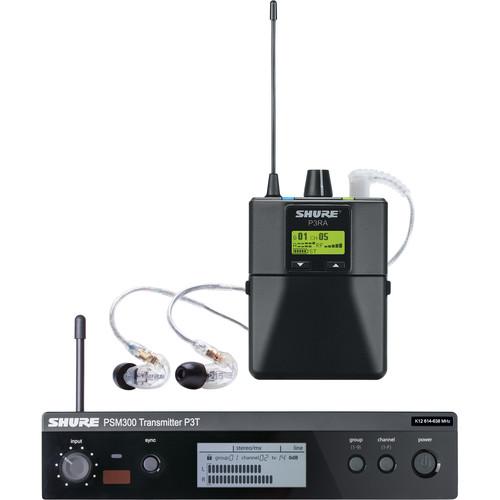

• P3T Wireless Transmitter for PSM300 (G20: 488-512 MHz) The P3T from Shure is a half-rack 24-bit digital audio wireless transmitter for the personal in ear monitoring system. It can be used in various environments to send 2 channels of audio to a bodypack receiver (sold separately), up to 300' away for applications such as live stage, theater, rehearsals, and more. It features audio reference companding to ensure transparent sound quality with no artifacts or dropouts. This rugged transmitter is built with easy front-panel controls, including the one-touch sync and input level knobs which are there to enable quick setup and easy operation. Furthermore, the rear-panel has balanced inputs and loop outputs that can provide versatile connectivity to other audio sources or other P3T units.
  • Up to 30mW output power (region dependent)
  • 1/4" (6.3mm) TRS balanced inputs and loop outputs
  • 24 MHz tuning range (region dependent)
  • High-contrast LCD menu with detailed L/R audio output meters
  • Detachable 1/4 wave antenna
  • External power supply
  • Selectable line/aux level
  UPC: 042406353205
• P3RA Wireless Bodypack Receiver for PSM300 System (G20: 488-512 MHz) The P3RA Wireless Bodypack Receiver from Shure is a compact, stereo wireless receiver designed to be used with a Shure P3T transmitter, as part of the PSR 300 personal monitoring system. It be used by performers and speakers for audio applications in various environments such as live stages, theaters, houses of worship, and more. The P3RA offers 24-bit digital audio clarity with dependable wireless coverage at a range of up to 300'. Automatically find the cleanest frequency available using the scan function. The MixMode and Stereo Mode features allow you to create two independent monitor mixes. A high-contrast LCD screen lets you navigate the menus so you can adjust the mixes to your liking, with control over the left/right balance, a 2-band shelving EQ, and an output gain limiter. The unit is equipped with a rugged aluminum body, which can be clipped onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours of continuous use, and with the optional SB900 rechargeable battery (available separately) you can extend the runtime to up to 7 hours. The Power Save mode preserves battery life when earphones are not connected.
  • Wireless stereo bodypack receiver, for use with the PSM300 personal stereo monitor system (G20: 488-512 MHz, frequency-range)
  • Receives two channels of audio wirelessly – for use in musical professional entertainment and similar applications
  • Detailed 24-bit digital audio provides clear, detailed sound
  • Dependable wireless coverage extends over 300' (90 m) range, and eliminates dropouts
  • Proprietary Audio Reference Companding technology ensures clean sound, with ultra-low noise, and no artifacts
  • Frequency scan and IR sync – quickly find and assigns a clean channel
  • Rugged, all-metal housing
  • Delivers up to 6 hours of continuous operation with 2 AA batteries
  • Offers extended runtime with the Shure SB900A lithium-ion battery (available separately), which can charge in the bodypack
  • Volume limiter sets the maximum gain level range for the volume knob
  • MixMode technology enables adjustment of two independent monitoring mix levels
  • 2-band shelving EQ with high and low boost
  • Stereo Mode enables adjustment of left / right balance
  • Power-Save mode preserves battery life when earphones are not connected
  • High-contrast LCD screen with menu-based navigation
  • 5-Segment battery status LEDs provide clear indication of remaining charge
  UPC: 042406351768
• SE215 Sound-Isolating In-Ear Stereo Earphones (Clear) The Clear SE215 Sound-Isolating In-Ear Stereo Earphones from Shure offer notable sound quality in a lightweight and affordable package. The headphones use dynamic MicroDrivers to deliver clear, natural audio with an extended bass response for a rich, lifelike listening experience. The detachable cable has formable wires that fit over the ears to stay out of the way whether you're listening on stage or at home. The cable is reinforced with Kevlar for lasting durability. The gold-plated MMCX earpiece connectors have a lock-snap mechanism that enables 360° rotation for a comfortable fit.A personalized fit kit with multiple sizes and types of eartips is included to ensure that you get the best comfort and sound isolation possible. The in-ear design allows the earphones to effectively reduce ambient noise by as much as 37 dB. The gold-plated 3.5mm connector provides wide compatibility with a variety of MP3 players, CD players, laptops, and more. A soft carrying case provides tangle-free storage.
  • Lightweight, comfortable design
  • Dynamic MicroDrivers deliver clear, natural audio with an extended bass response for a rich, lifelike listening experience
  • Formable wires fit over the ears to stay out of the way whether you're listening on stage or at home
  • The gold-plated MMCX earpiece connectors have a lock-snap mechanism that enables 360° rotation for a comfortable fit
  • The cable is Kevlar-reinforced for durability and is detachable for easy replacement
  • Personal fit kit provides a variety of eartips to reduce ambient noise by up to 37 dB and increase bass response
  • The gold-plated 3.5mm connector provides wide compatibility with a variety of MP3 players, CD players, laptops, and more
  • A soft carrying case is included for storage and travel
  UPC: 042406196956

• Detachable 1/4 Wave Antenna

• Rackmount and Hardware Kit

• BNC Cable

• BNC Bulkhead Adapter

• External Power Supply

• Limited 2-Year Warranty

• Belt Clip

• 2 x AA Batteries

• Battery Adapter Kit

• Zipper Bag

• Limited 2-Year Warranty

• 3 x Pairs of Flex Sleeves (S/M/L)

• 3 x Pairs of Black Foam Sleeves (S/M/L)

• Carrying Case

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P3T Wireless Transmitter for PSM300 (G20: 488-512 MHz)

  Frequency Range	G20: 488-512 MHz
  RF Output Power	10, 20, 30 mW Note: varies by region
  RF Output Impedance	50 Ohms (typical)
  Transmission Range	300' (90 m)

  Connector Type	1/4" TRS (6.35 mm)
  Polarity	Tip positive with respect to ring
  Configuration	Electronically balanced
  Impedance	40 kOhms (actual)
  Nominal Input Level	Switchable, +4 dBu, -10 dBV
  Maximum Input Level	+4 dBu: +22 dBu -10 dBV: +12.2 dBu
  Pin Assignments	Tip=hot, Ring=cold, Sleeve=ground
  Phantom Power Protection	Up to 60 VDC

  Connector Types	1/4" TRS (6.35 mm)
  Configuration	Electronically balanced
  Impedance	Connected directly to inputs

  Antenna	1/4 wave, detachable
  Power Requirement	12 to 15 VDC, 260 mA maximum
  Dimensions (H x W x D)	1.7 x 7.8 x 6.8" (43 x 198 x 172 mm)
  Net Weight	27.6 oz (783 g)

  Box Dimensions (LxWxH)	18.5 x 14.75 x 3.75"

• P3RA Wireless Bodypack Receiver for PSM300 System (G20: 488-512 MHz)

  Frequency Range	G20: 488-512 MHz
  RF Sensitivity	Active: 2.2 μV (at 20 dB SINAD)
  Image Rejection	> 90 dB
  Adjacent Channel Rejection	> 60 dB
  Intermodulation Attenuation	> 50 dB
  Blocking	> 60 dB
  Audio Output Power	80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms)
  Minimum Load Impedance	16 Ohms
  Headphone Output	1.8" (3.5 mm), stereo
  Continuous Battery Life	4 to 5.5 hours, AA batteries 5.5 to 7 hours, SB900 battery (available separately)
  Dimensions (H x W x D)	3.8 x 2.5 x 0.9" (99.0 x 66.0 x 23.00 mm)
  Net Weight	6.9 oz (196 g), with batteries

  Box Dimensions (LxWxH)	11.1 x 5.3 x 3.3"

• SE215 Sound-Isolating In-Ear Stereo Earphones (Clear)

  Type	In-Ear
  Driver	Dynamic MicroDriver
  Frequency Range	22 Hz to 17.5 kHz
  Impedance	17 Ohms
  Sensitivity	107 dB
  Isolation	Up to 37 dB
  Maximum Input Power	Not Specified by Manufacturer
  Connectors	Gold-Plated 3.5mm Stereo Mini Plug
  Cable Length	5.3' / 1.6 m
  Weight	1.05 oz / 30 g

  Box Dimensions (LxWxH)	6.9 x 3.1 x 2.0"
