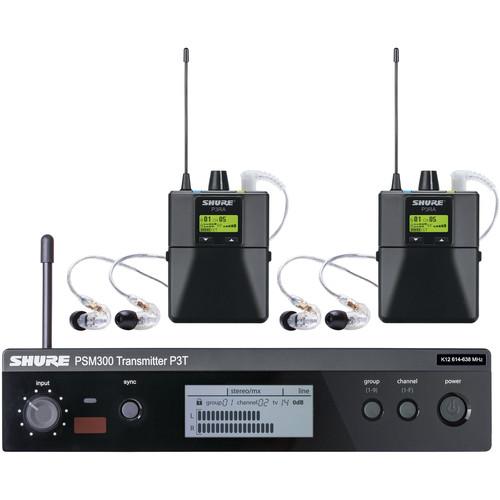

Product description The Shure PSM 300 Twin-Pack Pro, Wireless In-Ear Monitor System from B&H consists of a Shure P3T wireless transmitter, two P3RA wireless bodypack receivers, and two Shure SE215 (clear) sound-isolating earphones. Other accessories include a 1/4 wave antenna, a BNC bulkhead adapter and cable, a power supply, four AA batteries, and two zipper bags for the receivers. This kit can be used to deliver 24-bit digital audio, and it provides performers with a wireless monitoring option in applications for live concerts, theater, rehearsals, houses of worship, and more.The wireless coverage range extends to over 300', and the system helps eliminate dropouts. The PSM 300 monitor system is easy to set up and operate; it offers one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume using MixMode or stereo mode to create a personal mix from two channels of audio. - Shure PSM 300 Stereo Personal Monitor System with IEM (J13: 566-590 MHz) The PSM 300 from Shure is a professional-quality wireless in-ear monitoring system that delivers 24-bit digital audio and offers wireless freedom to performers. It can be used in several environments for audio application such as live stage, theater, rehearsals, houses of worship, and more. It features an audio reference compander that ensures a clearer sound and provides lower noise and audio that have no artifacts. The wireless coverage range extends to over 300' and the system helps eliminate dropouts. The PSM 300 monitor system is easy to setup and operate; it offers one-touch frequency scan and sync to find and assign a clean wireless channel. Adjust the volume using MixMode or stereo mode to create a personal mix from two channels of audio.
- Send two channels of audio wirelessly to performers onstage
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Half-rack, single channel transmitter with included rack mount kit
- Create a personal mix from the bodypack with MixMode technology or stereo mode
UPC: 042406371711 - Shure P3RA Wireless Bodypack Receiver for PSM300 System (J13: 566-590 MHz) The P3RA Wireless Bodypack Receiver from Shure is a compact, stereo wireless receiver designed to be used with a Shure P3T transmitter, as part of the PSR 300 personal monitoring system. It be used by performers and speakers for audio applications in various environments such as live stages, theaters, houses of worship, and more. The P3RA offers 24-bit digital audio clarity with dependable wireless coverage at a range of up to 300'. Automatically find the cleanest frequency available using the scan function. The MixMode and Stereo Mode features allow you to create two independent monitor mixes. A high-contrast LCD screen lets you navigate the menus so you can adjust the mixes to your liking, with control over the left/right balance, a 2-band shelving EQ, and an output gain limiter. The unit is equipped with a rugged aluminum body, which can be clipped onto a belt or guitar strap. Two standard AA batteries provide up to 6 hours of continuous use, and with the optional SB900 rechargeable battery (available separately) you can extend the runtime to up to 7 hours. The Power Save mode preserves battery life when earphones are not connected.
- Wireless stereo bodypack receiver, for use with the PSM300 personal stereo monitor system (J13: 566-590 MHz, frequency-range)
- Receives two channels of audio wirelessly – for use in musical professional entertainment and similar applications
- Detailed 24-bit digital audio provides clear, detailed sound
- Dependable wireless coverage extends over 300' (90 m) range, and eliminates dropouts
- Proprietary Audio Reference Companding technology ensures clean sound, with ultra-low noise, and no artifacts
- Frequency scan and IR sync – quickly find and assigns a clean channel
- Rugged, all-metal housing
- Delivers up to 6 hours of continuous operation with 2 AA batteries
- Offers extended runtime with the Shure SB900A lithium-ion battery (available separately), which can charge in the bodypack
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode technology enables adjustment of two independent monitoring mix levels
- 2-band shelving EQ with high and low boost
- Stereo Mode enables adjustment of left / right balance
- Power-Save mode preserves battery life when earphones are not connected
- High-contrast LCD screen with menu-based navigation
- 5-Segment battery status LEDs provide clear indication of remaining charge
UPC: 042406351737 - Shure SE215 Sound-Isolating In-Ear Stereo Earphones (Clear) The Clear SE215 Sound-Isolating In-Ear Stereo Earphones from Shure offer notable sound quality in a lightweight and affordable package. The headphones use dynamic MicroDrivers to deliver clear, natural audio with an extended bass response for a rich, lifelike listening experience. The detachable cable has formable wires that fit over the ears to stay out of the way whether you're listening on stage or at home. The cable is reinforced with Kevlar for lasting durability. The gold-plated MMCX earpiece connectors have a lock-snap mechanism that enables 360° rotation for a comfortable fit.A personalized fit kit with multiple sizes and types of eartips is included to ensure that you get the best comfort and sound isolation possible. The in-ear design allows the earphones to effectively reduce ambient noise by as much as 37 dB. The gold-plated 3.5mm connector provides wide compatibility with a variety of MP3 players, CD players, laptops, and more. A soft carrying case provides tangle-free storage.
- Lightweight, comfortable design
- Dynamic MicroDrivers deliver clear, natural audio with an extended bass response for a rich, lifelike listening experience
- Formable wires fit over the ears to stay out of the way whether you're listening on stage or at home
- The gold-plated MMCX earpiece connectors have a lock-snap mechanism that enables 360° rotation for a comfortable fit
- The cable is Kevlar-reinforced for durability and is detachable for easy replacement
- Personal fit kit provides a variety of eartips to reduce ambient noise by up to 37 dB and increase bass response
- The gold-plated 3.5mm connector provides wide compatibility with a variety of MP3 players, CD players, laptops, and more
- A soft carrying case is included for storage and travel
UPC: 042406196956 In the Box - PSM 300 Stereo Personal Monitor System with IEM (J13: 566-590 MHz) yvbbfvuxvtwauqfycfbs
- P3T Wireless Transmitter for PSM300 (J13: 566-590 MHz)
- P3RA Wireless Bodypack Receiver for PSM300 System (J13: 566-590 MHz)
- SE215 Sound-Isolating In-Ear Stereo Earphones (Clear)
- P3RA Wireless Bodypack Receiver for PSM300 System (J13: 566-590 MHz)
- SE215 Sound-Isolating In-Ear Stereo Earphones (Clear)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PSM 300 Twin-Pack Pro, Wireless In-Ear Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure P3T Wireless Transmitter for PSM300 (J13: 566-590 MHz)
| | | Frequency Range | J13: 566-590 MHz | | RF Output Power | 10, 20, 30 mW
Note: varies by region | | RF Output Impedance | 50 Ohms (typical) | | Transmission Range | 300' (90 m) | | | | Connector Type | 1/4" TRS (6.35 mm) | | Polarity | Tip positive with respect to ring | | Configuration | Electronically balanced | | Impedance | 40 kOhms (actual) | | Nominal Input Level | Switchable, +4 dBu, -10 dBV | | Maximum Input Level | +4 dBu: +22 dBu
-10 dBV: +12.2 dBu | | Pin Assignments | Tip=hot, Ring=cold, Sleeve=ground | | Phantom Power Protection | Up to 60 VDC | | | | Connector Types | 1/4" TRS (6.35 mm) | | Configuration | Electronically balanced | | Impedance | Connected directly to inputs | | | | Antenna | 1/4 wave, detachable | | Power Requirement | 12 to 15 VDC, 260 mA maximum | | Dimensions (H x W x D) | 1.7 x 7.8 x 6.8" (43 x 198 x 172 mm) | | Net Weight | 27.6 oz (783 g) | | | | Box Dimensions (LxWxH) | 18.5 x 14.75 x 3.75" | - Shure P3RA Wireless Bodypack Receiver for PSM300 System (J13: 566-590 MHz)
| Frequency Range | J13: 566-590 MHz | | RF Sensitivity | Active: 2.2 μV (at 20 dB SINAD) | | Image Rejection | > 90 dB | | Adjacent Channel Rejection | > 60 dB | | Intermodulation Attenuation | > 50 dB | | Blocking | > 60 dB | | Audio Output Power | 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms) | | Minimum Load Impedance | 16 Ohms | | Headphone Output | 1.8" (3.5 mm), stereo | | Continuous Battery Life | 4 to 5.5 hours, AA batteries
5.5 to 7 hours, SB900 battery (available separately) | | Dimensions (H x W x D) | 3.8 x 2.5 x 0.9" (99.0 x 66.0 x 23.00 mm) | | Net Weight | 6.9 oz (196 g), with batteries | | | | Box Dimensions (LxWxH) | 11.2 x 5.3 x 3.4" | - Shure SE215 Sound-Isolating In-Ear Stereo Earphones (Clear)
| Type | In-Ear | | Driver | Dynamic MicroDriver | | Frequency Range | 22 Hz to 17.5 kHz | | Impedance | 17 Ohms | | Sensitivity | 107 dB | | Isolation | Up to 37 dB | | Maximum Input Power | Not Specified by Manufacturer | | Connectors | Gold-Plated 3.5mm Stereo Mini Plug | | Cable Length | 5.3' / 1.6 m | | Weight | 1.05 oz / 30 g | | | | Box Dimensions (LxWxH) | 6.9 x 3.1 x 2.0" | - Shure P3RA Wireless Bodypack Receiver for PSM300 System (J13: 566-590 MHz)
| Frequency Range | J13: 566-590 MHz | | RF Sensitivity | Active: 2.2 μV (at 20 dB SINAD) | | Image Rejection | > 90 dB | | Adjacent Channel Rejection | > 60 dB | | Intermodulation Attenuation | > 50 dB | | Blocking | > 60 dB | | Audio Output Power | 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms) | | Minimum Load Impedance | 16 Ohms | | Headphone Output | 1.8" (3.5 mm), stereo | | Continuous Battery Life | 4 to 5.5 hours, AA batteries
5.5 to 7 hours, SB900 battery (available separately) | | Dimensions (H x W x D) | 3.8 x 2.5 x 0.9" (99.0 x 66.0 x 23.00 mm) | | Net Weight | 6.9 oz (196 g), with batteries | | | | Box Dimensions (LxWxH) | 11.2 x 5.3 x 3.4" | - Shure SE215 Sound-Isolating In-Ear Stereo Earphones (Clear)
| Type | In-Ear | | Driver | Dynamic MicroDriver | | Frequency Range | 22 Hz to 17.5 kHz | | Impedance | 17 Ohms | | Sensitivity | 107 dB | | Isolation | Up to 37 dB | | Maximum Input Power | Not Specified by Manufacturer | | Connectors | Gold-Plated 3.5mm Stereo Mini Plug | | Cable Length | 5.3' / 1.6 m | | Weight | 1.05 oz / 30 g | | | | Box Dimensions (LxWxH) | 6.9 x 3.1 x 2.0" |
