Product description

• Shure P9RA Wireless Personal Monitoring Receiver (G6: 470-506MHz)

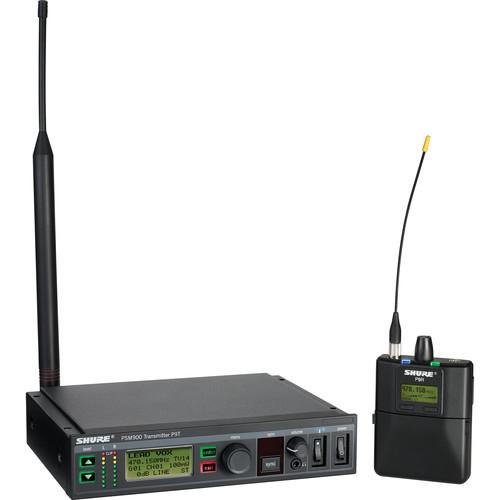

  • Shure PSM 900 Personal Monitor System
  The Shure P9RA Wireless Personal Monitoring Receiver is sold as part of the Shure PSM 900 Wireless Monitoring System, and available separately. The P9RA bodypack receiver features an enhanced digital stereo encoder that enhances audio detail and clarity, and patented Audio Reference Companding for convincing and wired-like audio quality.

  Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels. A Scan and Sync function creates an IR link between the components for fast and easy syncing. RF muting provides easy setup without creating RF interference. RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload. MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously.
  • Advanced rechargeability option provides up to 10 hours of continuous use, with precision tracking of battery life and charge cycle details
  • Ultra-thin, low profile bodypack allows discreet placement on the performer
  • Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail
  • With RF Scan, stand where the artist will be on stage and instantly check RF level
  • Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously
  • Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync
  • Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments
  • Separate, easily visible audio and RF status indicator LED's
  • Audio level and battery life metering
  • Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)
  • Volume and balance controls
  • Extruded aluminum construction for rugged dependability
  UPC: 042406216678
• Shure P9T Wireless Transmitter for PSM900 (G6: 470-506MHz)
  • Shure PSM 900 Personal Monitor System
  The P9T from Shure is a compact wireless transmitter that can be used in conjunction with a P9R bodypack receiver as part of a PSM900 wireless personal monitoring system. The transmitter's half-rack design makes it easy to transport, and it can be installed in any standard equipment rack.

  The transmitter features patent-pending CueMode technology to send multiple mixes or channels to a receiver, and a Scan and Sync function to quickly sync with a receiver over an IR link. An RF mute switch allows you to set up the system without causing RF interference. The front panel offers an input gain control and LED level meters, as well as a 3.5mm headphone jack for convenient monitoring and a backlit LCD that displays vital info.

  The rear panel offers XLR/TRS combo inputs, allowing it to accept a variety of audio sources. Loop out connectors make it easy to create multiple mix setups. The transmitter is compatible with the PA421SWB and PA821SWB antenna combiners, and offers front or back mountable antennas.
  • Compact half-rack design for easy transportation and installation in any standard equipment rack
  • Patent-pending CueMode technology sends multiple mixes or channels to a receiver
  • Scan and Sync function for quick sync with a receiver over an IR link
  • RF mute switch allows you to set up the system without causing RF interference
  • Front-panel input gain control and LED level meters
  • 3.5mm headphone jack for convenient monitoring
  • Backlit LCD displays vital info
  • XLR/TRS combo inputs accept a variety of audio sources
  • Loop out connectors make it easy to create multiple mix setups
  • Compatible with the PA421SWB and PA821SWB antenna combiners, and offers front or back mountable antennas
  UPC: 042406170154

• P9RA Wireless Personal Monitoring Receiver (G6: 470-506MHz) xcdfubtwxcvwayazbvvfzfbxwyzsdcxwqar
• 2-Year Limited Warranty

• P9T Wireless Transmitter for PSM900 (G6: 470-506MHz)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure P9RA Wireless Personal Monitoring Receiver (G6: 470-506MHz)

  Filtering	Front-end RF filtering: Dual stage 3-pole Chebyshev
  RF	Active RF gain control: 31dB (adjusts RF sensitivity to provide more RF dynamic range) RF Sensitivity: (20dB SINAD) 2.2 μV
  Squelch	(±3dB SINAD) 20dB SINAD
  Adjacent Channel Crosstalk	Adjacent channel rejection: > 70dB
  Attenuation	> 50dB (referenced to 30dB SINAD with -80dBm on channel signal at 45 kHz deviation of a 1 kHz tone > 70dB for 12dB SINAD
  Blocking	> 80dB
  Audio Output	Audio Output Power (1kHz @ < 1% distortion, peak power, @32Ω): 100mW
  Minimum Load Impedance	9.5 Ω
  Range (Boost/Cut)	High Boost Selectable: +2dB, +4dB @ 10kHz
  Limiter	Selectable: 3-9 limits volume adjustment knob. Selected value analogous to volume knob increment.
  Battery	AA batteries: 4-6 hours (continuous use) SB900 rechargeable battery: 10 hours (continuous use)
  Dimensions	3.89 x 2.59 x 0.90" (99 x 66 x 23mm)
  Weight	7.05 oz (200 g) with 2 AA batteries

  Box Dimensions (LxWxH)	11.0 x 5.4 x 3.2"

• Shure P9T Wireless Transmitter for PSM900 (G6: 470-506MHz)

  Output Power	10/50/100mW, Selectable (Regionally Dependent)
  Output Impedance	50 Ohms (RF, Typical)
  Input Level	+4dBu and -10dBV, Switchable
  Connectors	2 x XLR/TRS Combo Inputs 2 x 1/4" Loop Outputs 1 x DC Power Input 1 x Antenna Connector 1 x 3.5mm Headphone Jack
  Power Requirements	415mA, Typical (RF On, 100mW Power Mode, No Audio)
  Dimensions (WxDxH)	7.75 x 6.5 x 1.6" (197 x 166 x 42mm)
  Weight	1.9 lbs (0.85kg)

  Box Dimensions (LxWxH)	18.3 x 14.8 x 3.7"
