Shure PSM 900 Wireless Personal Monitor

User Manual for Shure PSM 900 Wireless Personal Monitor System

• Product category: In-Ear Monitoring Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure In-Ear Monitoring Systems

Product description

• P9RA+ Wireless Bodypack Receiver (G6: 470 to 506 MHz)

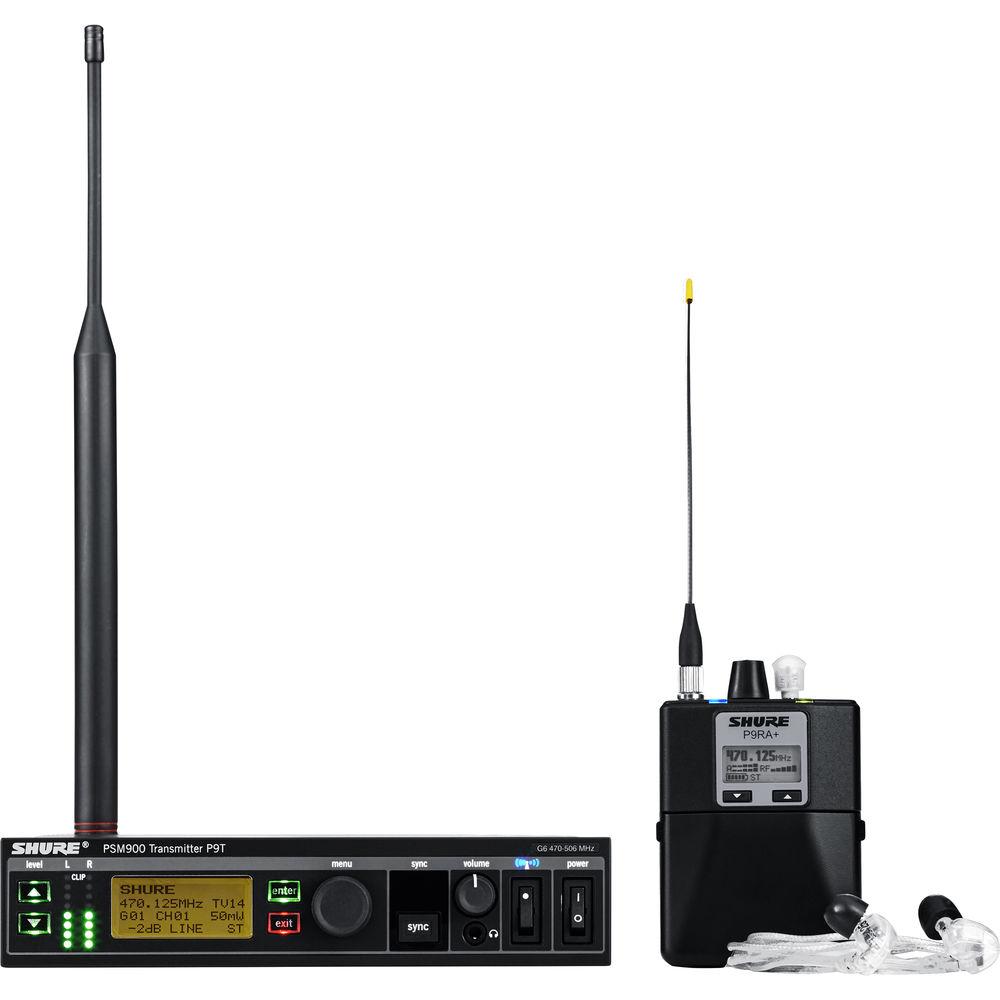

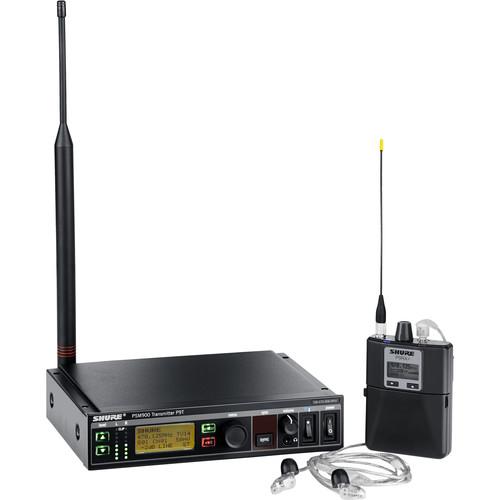

  • Shure PSM 900 Personal Monitor System

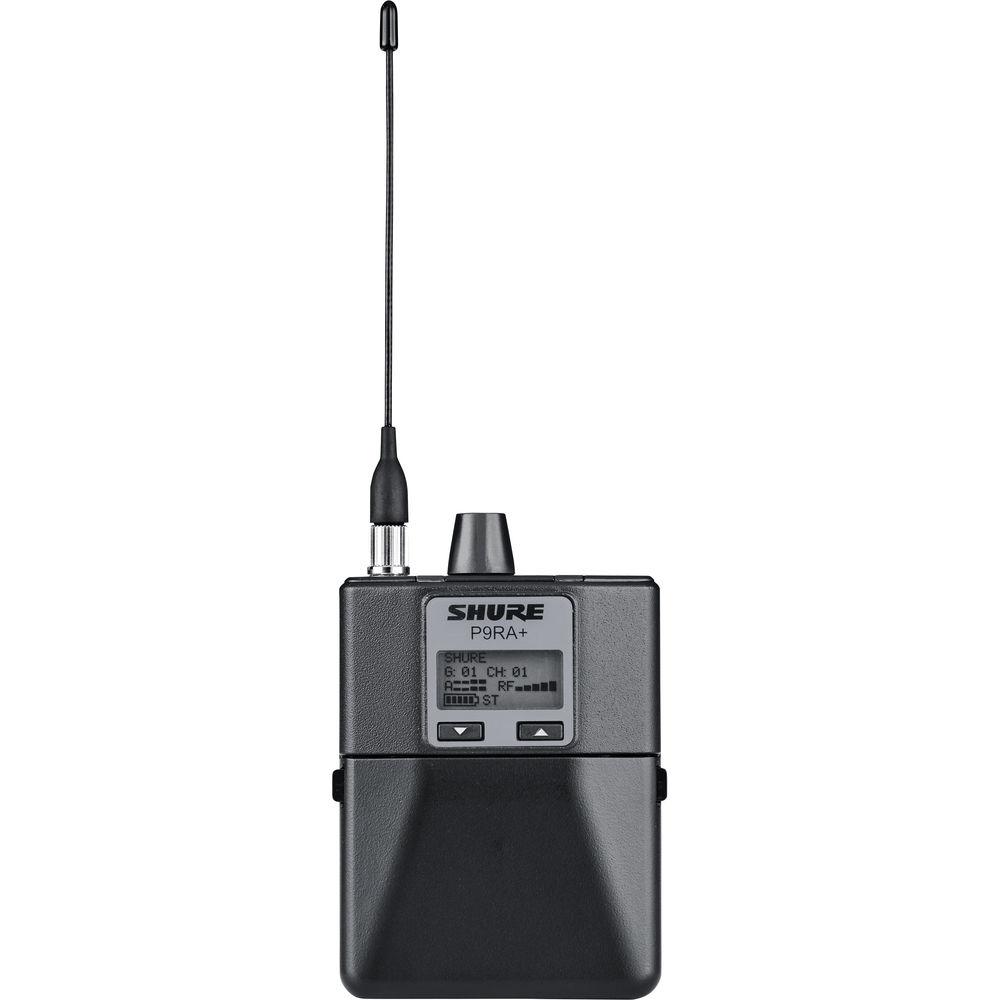

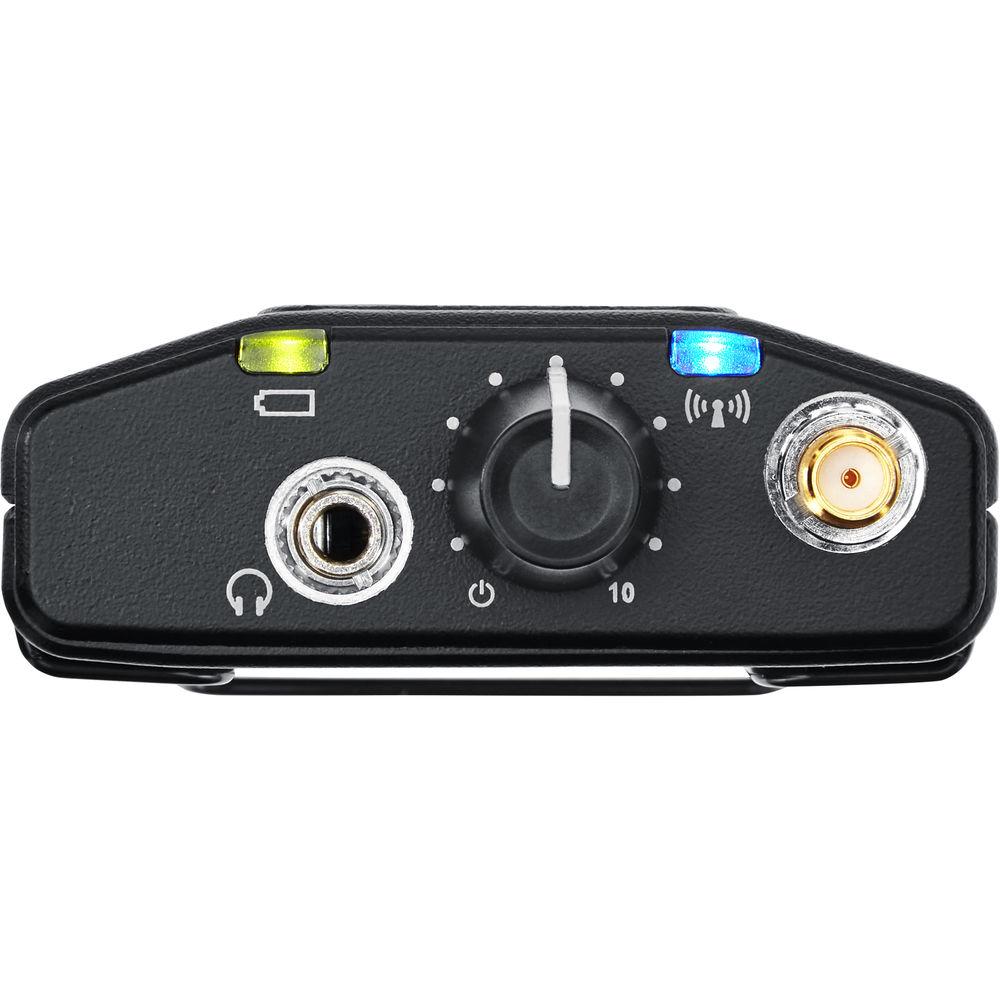

  The P9RA+ Wireless Bodypack Receiver from Shure is an updated version of the P9RA low profile, diversity stereo bodypack receiver for the PSM 900 wireless personal monitor system (sold separately). The receiver has a slim and compact extruded aluminum construction for easy placement on a performer and offers improvements like more headroom, better stereo separation, and higher fidelity for robust RF performance and a cleaner, stronger signal with fewer dropouts and artifacts. With touring-grade features like full bandwidth RF scan, front-end RF filtering, and automatic RF gain control, the P9RA+ meets the needs of professional audio application of all sizes, including IEM and IFB applications.The receiver syncs easily to a P10T transmitter over an IR link using the built-in Scan and Sync function. Volume and balance controls are provided for easy customization. A selectable 4-band parametric EQ is also provided. Shure's CueMode allows you to monitor different stage mixes, as well as store up to 20 different channels on a single bodypack. The receiver also includes audio and RF status LEDs, as well as audio level and battery life metering. The P9RA+ operates on a pair of standard AA batteries for 4-6 hours of continuous use, and it can also be used with Shure Li-ion rechargeable batteries for extended life. The P9RA+ has a standard 3.5mm headphone jack and is compatible with all Shure SCL sound-isolating earphones, which are designed specifically for use with PSM systems.
  Updated Features
  • • Improved audio quality (without changing sound signature)
    • Improved RF performance and reliability
    • Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
    • Updated firmware with new features and workflow improvements
    • Improved Volume Limiter function (selectable ranges of limiting increased)
    • 4-band parametric EQ added
    • Power-Save Mode added (similar to feature on PSM300 series packs)
  Unparalled Audio Quality
  • • Bodypack receivers with advanced digital signal processing technology deliver more headroom, improved stereo separation, and higher audio fidelity
  Robust RF Performance
  • • P9RA+ bodypack receivers offer enhanced signal reception and range
    • Precision front-end RF filtering significantly reduces RF interference for a cleaner, stronger RF signal, fewer dropouts, and fewer audible artifacts
  Setup and Operation Features
  • • CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels on one bodypack for quick and easy reference
    • Scan and Sync scans the RF environment with the bodypack and assigns an identified group and channel to your system over wireless IR link
    • MixMode technology combines two separate audio channels for simultaneous listening in both ears, or can transmit two independent IFB program feeds
    • Four-band parametric EQ gives you the choice to adjust frequencies for a fully customized sound
    • Input EQ Presets give you the option to further tailor your sound, including the option to make the P9RA+ sound like the P9RA with a designated “Match” setting
  Rechargeability Options
  • • The SB900A lithium-ion rechargeable battery provides extended usage times and precise tracking of remaining life and charge cycle details
    • The SCB800-US eight-bay charger brings up to eight SB900 batteries to full charge within two hours and has charge status LEDs for each battery
    • The SBC200 dual-docking charger works with SB900A, P9RA+, P10R+, QLX-D® Digital Wireless Systems, and ULX-D® Digital Wireless Systems, available with and without power supply
    • The SBC220 networked dual-docking charger works with SB900A, PSM 900 (P9RA+ only), PSM 1000 (P10R+ only), QLX-D Digital Wireless Systems, ULX-D Digital Wireless Systems, and Axient Digital (AD1 and AD2 only), available with and without power supply. When the SBC220 is connected to a network, battery information for each transmitter can be viewed remotely
    UPC: 042406542166

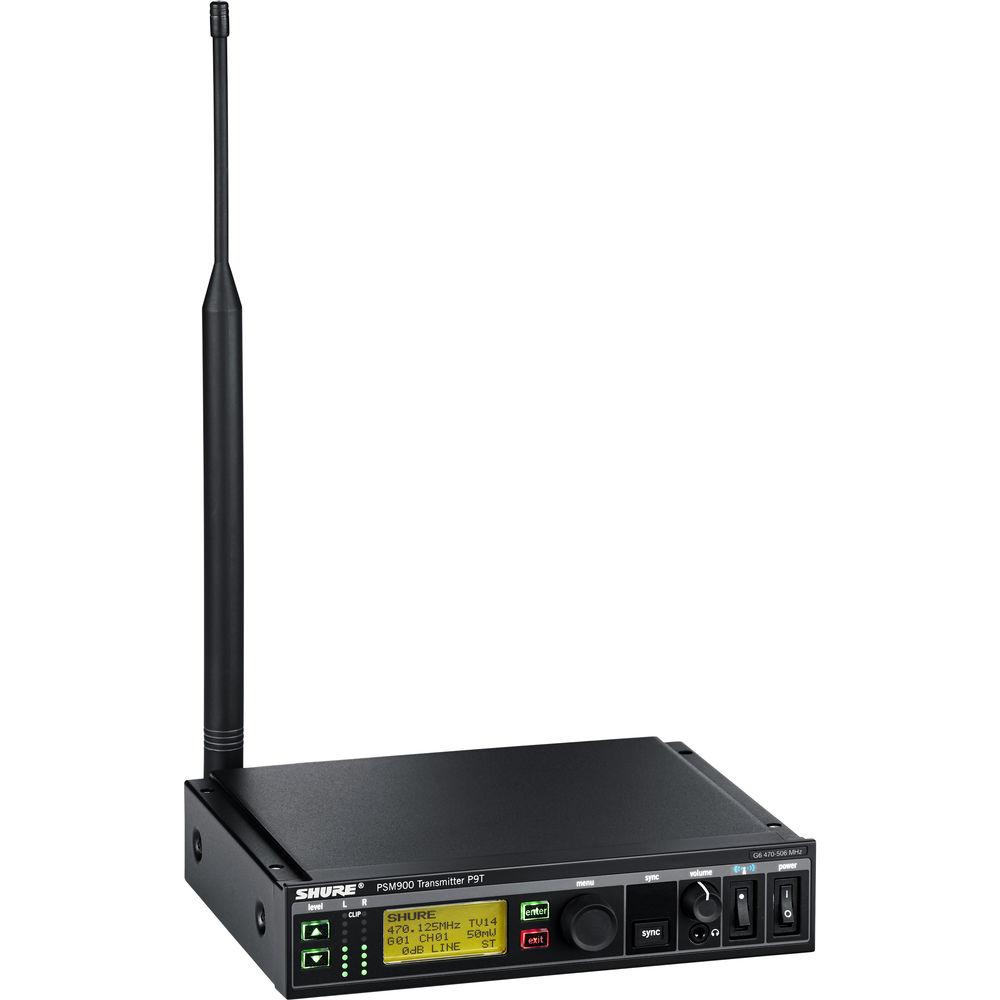

  • P9T Wireless Transmitter for PSM900 (G6: 470-506MHz) The P9T from Shure is a compact wireless transmitter that can be used in conjunction with a P9R bodypack receiver as part of a PSM900 wireless personal monitoring system. The transmitter's half-rack design makes it easy to transport, and it can be installed in any standard equipment rack.

    The transmitter features patent-pending CueMode technology to send multiple mixes or channels to a receiver, and a Scan and Sync function to quickly sync with a receiver over an IR link. An RF mute switch allows you to set up the system without causing RF interference. The front panel offers an input gain control and LED level meters, as well as a 3.5mm headphone jack for convenient monitoring and a backlit LCD that displays vital info.

    The rear panel offers XLR/TRS combo inputs, allowing it to accept a variety of audio sources. Loop out connectors make it easy to create multiple mix setups. The transmitter is compatible with the PA421SWB and PA821SWB antenna combiners, and offers front or back mountable antennas.
    • Compact half-rack design for easy transportation and installation in any standard equipment rack
    • Patent-pending CueMode technology sends multiple mixes or channels to a receiver
    • Scan and Sync function for quick sync with a receiver over an IR link
    • RF mute switch allows you to set up the system without causing RF interference
    • Front-panel input gain control and LED level meters
    • 3.5mm headphone jack for convenient monitoring
    • Backlit LCD displays vital info
    • XLR/TRS combo inputs accept a variety of audio sources
    • Loop out connectors make it easy to create multiple mix setups
    • Compatible with the PA421SWB and PA821SWB antenna combiners, and offers front or back mountable antennas
    UPC: 042406170154

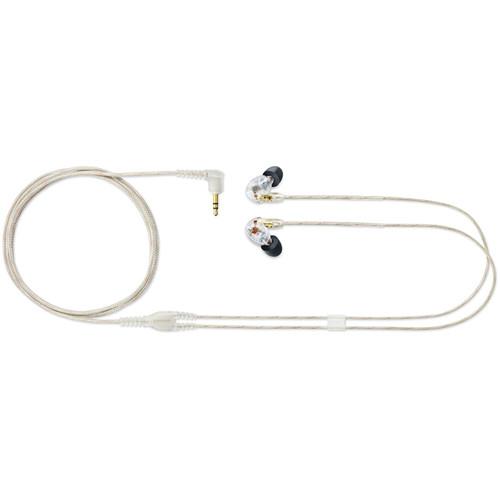

  • SE425 Sound Isolating In-Ear Stereo Headphones (Clear) The SE425 in-ear headphones from Shure provide top-quality audio in a sleek, compact, noise-isolating design that's ideal for use at home or on-the-road. Based on Shure's experience with professional in-ear monitors, each of the earpieces has dual high-definition MicroDrivers, in essence putting a separate woofer and tweeter into each ear for rich, detailed audio across the full frequency spectrum. The ergonomic, professional design has a low-profile shape with an optimized nozzle angle for exceptional comfort.

    The included fit kit contains multiple sizes of ear sleeves, allowing you to find the perfect size for your ear and effectively reduce ambient noise by as much as 37dB so you can focus on your music. The detachable Kevlar-reinforced cable connects to the earpieces using gold-plated MMCX connectors to lock in place but also provide a 360° rotation. This rotation, along with the formable wire, allows you to direct the cable over and behind the ears to minimize snags and tangles. The other end of the cable has a 3.5mm mini plug and a 1/4" adapter for wide compatibility with consumer and professional audio devices. A compact and durable case is included for storage and transportation.
    High-Definition MicroDrivers
    • Dual high-definition MicroDrivers in each earpiece put a separate woofer and tweeter into each ear for rich, detailed audio across the full frequency spectrum
    Comfortable, Ergonomic Design
    • Ergonomic, professional design has a low-profile shape with an optimized nozzle angle for exceptional comfort
    Noise Isolating
    • The included fit kit contains multiple sizes and types of ear sleeves, allowing you to find the perfect size for your ear and effectively reduce ambient noise by as much as 37dB so you can focus on your music
    Detachable, Formable Cable
    • The detachable Kevlar-reinforced cable connects to the earpieces using gold-plated MMCX connectors to lock in place but also provide a 360° rotation. This rotation, along with the formable wire, allows you to direct the cable over and behind the ears to minimize snags and tangles
    Wide Compatibility
    • The 3.5mm stereo mini plug and 1/4" adapter provide wide compatibility with consumer and professional audio devices
    Carrying Case Included
    • A compact and durable case is included for storage and transportation
    UPC: 042406178457

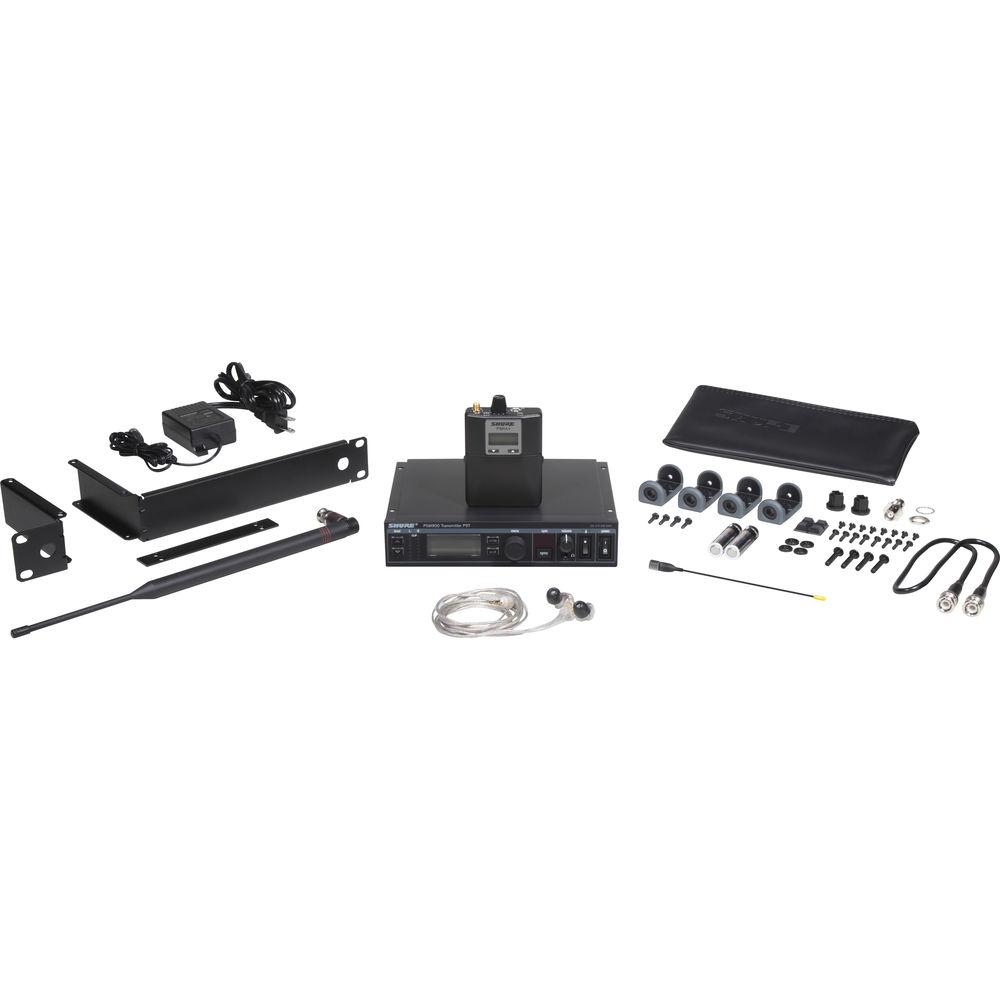

  In the Box Bundle Items P9RA+ Wireless Bodypack Receiver (G6: 470 to 506 MHz) zuetsvrx
  • 2 x Antennas

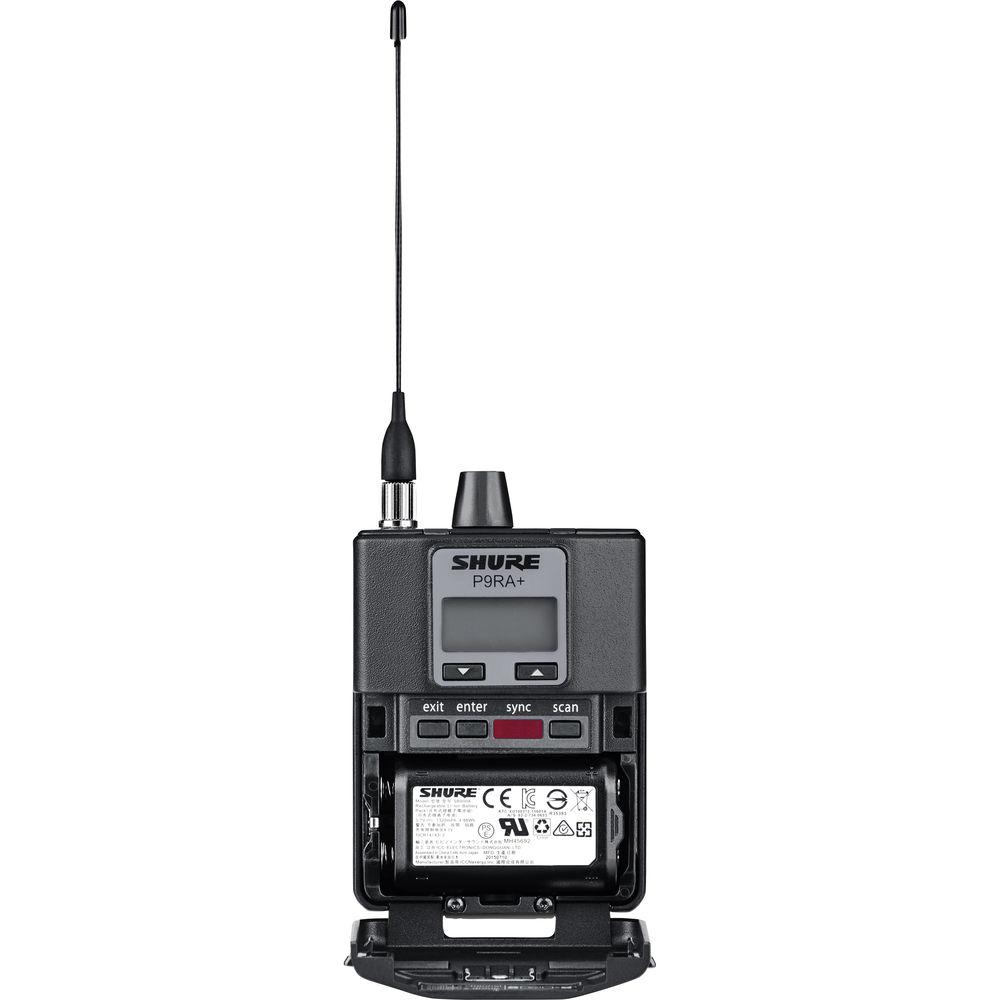

  • Removable AA Battery Adapter
  • Limited 2-Year Warranty
  P9T Wireless Transmitter for PSM900 (G6: 470-506MHz)
  • Rack Mounting Kit
  • 2 x Antennas
  • Power Supply
  • 2-Year Limited Warranty
  SE425 Sound Isolating In-Ear Stereo Headphones (Clear)
  • 1/4" Adapter
  • Carrying Case
  • 3 x Pairs of Flex Sleeves (S/M/L)
  • 3 x Pairs of Black Foam Sleeves (S/M/L)
  • Pair of Triple Flange Sleeves
  • Pair of Yellow Universal Fit Foam Sleeves
  • Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• P9RA+ Wireless Bodypack Receiver (G6: 470 to 506 MHz)

  Frequency Band	G6: 470 to 506 MHz
  RF Filter Range	-3 dB at 30.5 MHz from the center frequency of each band
  RF Gain	Active: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
  RF Sensitivity	2.2 μV (20 dB SINAD)
  Image Rejection	>90 dB
  Adjacent Channel Rejection	>70 dB
  Squelch Threshold	22 dB SINAD ( Rating 50% users recommend this product to others. And what about you? This product has already been rated by 80 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
