Product description - Shure PSM 900 Personal Monitor System
The PSM900 from Shure is a professional-quality wireless monitoring system that provides high-quality audio and RF performance in a compact and durable design. The system consists of a P9T transmitter, a P9RA bodypack receiver, and a pair of SE425CL in-ear monitors. The system features an enhanced digital stereo encoder that enhances audio detail and clarity, and patented Audio Reference Companding that sounds more like wired audio than other competing wireless systems.
Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels on a single bodypack receiver. A Scan and Sync function creates an IR link between the components for fast and easy syncing. RF muting provides easy setup without creating RF interference. RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload. MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously.

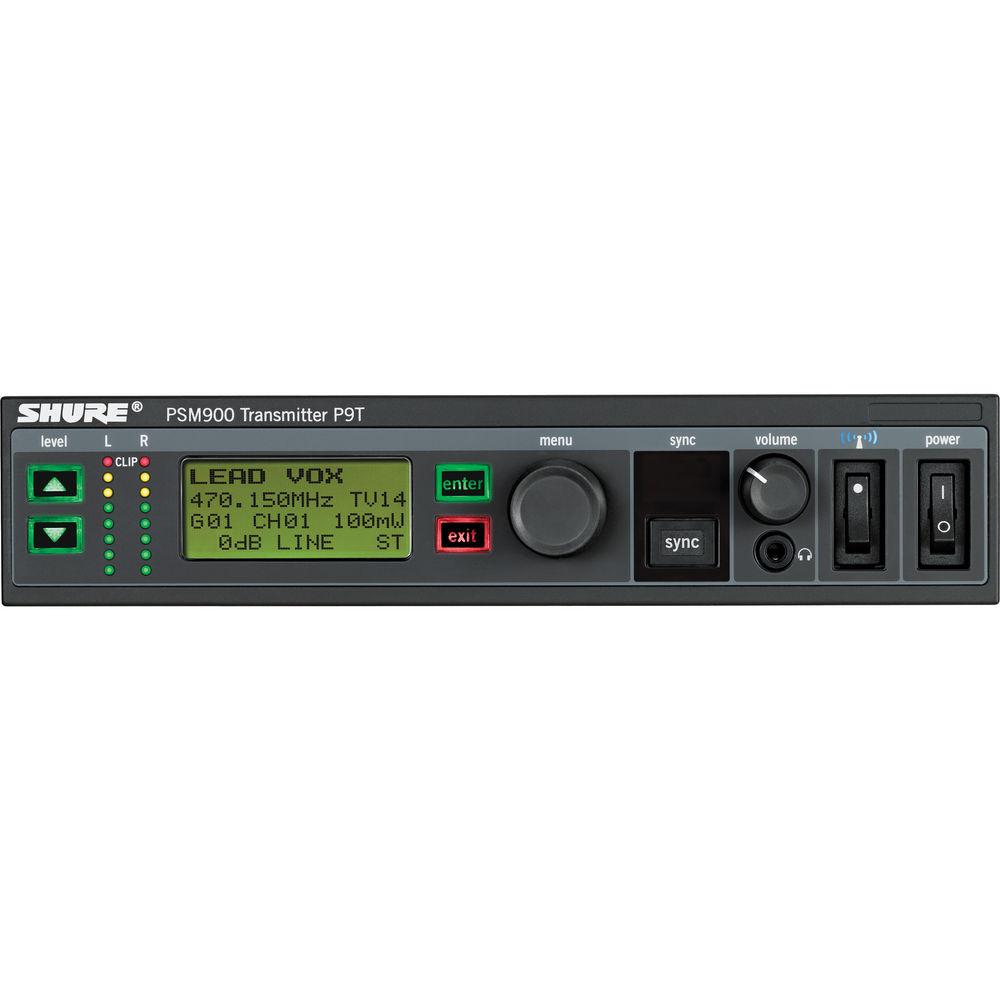

The transmitter has a compact half-rack design with XLR/TRS combo inputs, loop outputs, and a 3.5mm headphone jack for monitoring. It also has a backlit LCD display and LED level meters. The receiver has a slim aluminum housing with volume and balance controls and a 3.5mm headphone jack. It has an LCD screen for navigating settings and menus, and it operates on a pair of standard AA batteries. The included in-ear monitors provide high-quality audio and a secure in-ear fit, ideal for professional musicians. General - Enhanced digital stereo encoder enhances audio detail and clarity, while patented Audio Reference Companding sounds more like wired audio than other competing wireless systems
- Patent-pending CueMode technology lets you monitor different stage mixes, as well as store up to 20 different channels on a single bodypack receiver
- Scan and Sync function creates an IR link between the components for fast and easy syncing
- RF muting provides easy setup without creating RF interference
- RF scan and automatic gain features provide excellent RF stability and channel availability, and prevent dropout due to RF overload
- MixMode technology lets the receiver balance the levels of 2 audio channels while receiving each signal in both ears simultaneously
Transmitter - Compact half-rack design for easy transportation and installation in any standard equipment rack
- Front-panel input gain control and LED level meters
- 3.5mm headphone jack for convenient monitoring
- Backlit LCD displays vital info
- XLR/TRS combo inputs accept a variety of audio sources
- Loop out connectors make it easy to create multiple mix setups
- Compatible with the PA421SWB and PA821SWB antenna combiners, and offers front or back mountable antennas

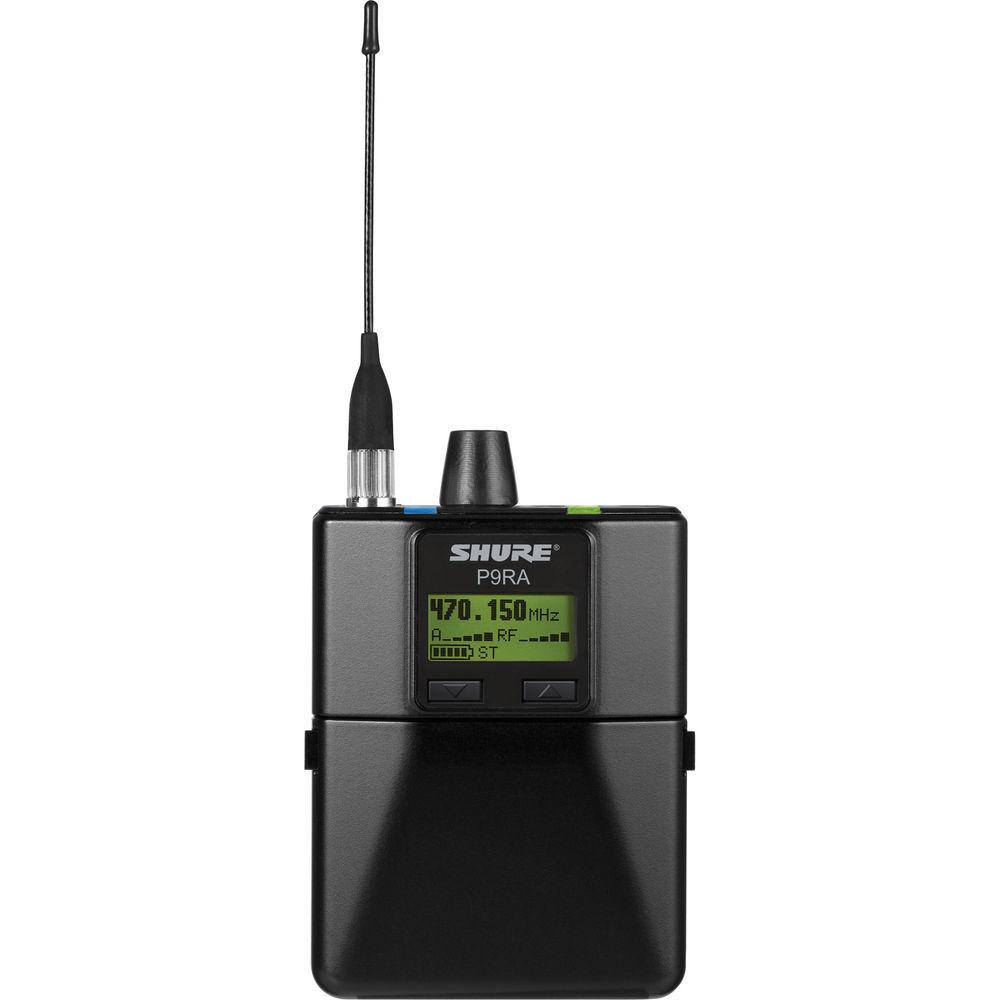

Receiver - Slim and compact extruded aluminum construction for easy placement on a performer and lasting durability
- Output power is switchable from 10/50/100mW to provide a robust link in any environment
- Volume and balance controls are provided for easy customization
- Selectable high frequency EQ boost
- Audio and RF status LEDs, as well as audio level and battery life metering
- Operates on a pair of standard AA batteries for 5-7 hours of continuous use
- Standard 3.5mm headphone jack is compatible with all Shure SCL sound isolating earphones
- LCD screen displays settings and menus
- Included in-ear monitors provide high-quality audio and a secure in-ear fit, ideal for professional musicians
UPC: 042406232524 In the Box Shure PSM 900 Wireless Personal Monitoring System with IEMs (G7: 506-542MHz) P9T Wireless Transmitter for PSM900 (G7: 506-542MHz) eezwzsab P9RA Wireless Personal Monitoring Receiver (G7: 506-542MHz) SE425 Sound Isolating In-Ear Stereo Headphones (Clear) 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure PSM 900 Wireless Personal Monitoring System with IEMs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

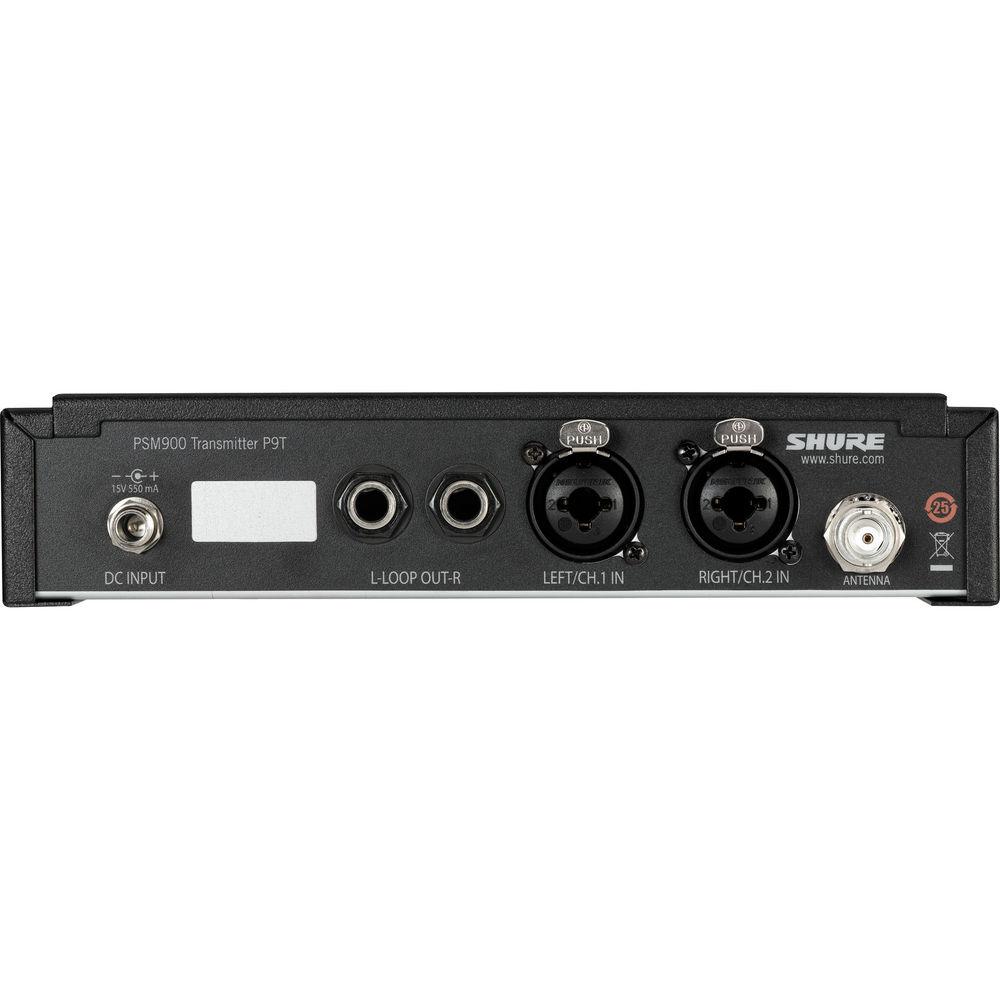

Technical parametersShure PSM 900 Specs | | | RF | Carrier Range: 470-952 MHz | | Frequencies | Compatible Frequencies: 20 per band | | Bandwidth | 36-40 MHz (varies by region) | | Operating Range | 300' (90 m) | | Frequency Response | 35Hz - 15kHz | | Signal-to-Noise Ratio | A-weighted: 90dB (typical) | | THD | Ref. ±34 kHz deviation @1 kHz: < 0.5% (typical) | | Compander | Patented Shure Audio Reference Companding | | Spurious Rejection | ref. 12dB SINAD: > 80dB (typical) | | Frequency Stability | ± 2.5 ppm | | Pilot Tone | 19 kHz (±0.3 kHz) | | Modulation | FM*, MPX Stereo (*ref. ±34 kHz deviation @1 kHz) | | Operating Temperature | -0.400 to 134.60° F (-18 to +57° C) | | | | Output Power | 10/50/100mW, Selectable (Regionally Dependent) | | Output Impedance | 50 Ohms (RF, Typical) | | Connectors | 2 x XLR/TRS Combo Inputs
2 x 1/4" Loop Outputs
1 x DC Power Input
1 x Antenna Connector
1 x 3.5mm Headphone Jack
Pin AssignmentsXLR: 1=ground, 2=hot, 3=cold
6.35 mm (1/4") TRS: Tip=hot, Ring=cold, Sleeve=ground | | Polarity | XLR: Non-inverting (pin 2 positive with respect to pin 3)
6.35 mm (1/4") TRS: Tip positive with respect to ring | | Configuration | Electronically balanced | | Impedance | 70.2 kΩ (actual) | | Nominal Input Level | +4dBu and -10dBV, Switchable | | Maximum Input Level | +4 dBu: +29.2 dBu
-10 dBV: +12.2 dBu | | Protection | Phantom Power Protection: Up to 60 V DC | | Power Requirements | 100-15V AC, 415 mA, typical | | Dimensions (WxDxH) | 7.75 x 6.5 x 1.6" (197 x 166 x 42mm) | | Weight | 1.87 lbs (850 g) | | | | RF | Tri-Band RF Filtering: -3dB at 30.5 MHz from the center frequency of each band
Active RF Gain Control: 31dB (Adjusts RF sensitivity to provide more RF dynamic range) | | RF Sensitivity | @ 20dB SINAD: 2.2µV | | Image Rejection | > 90dB | | Adjacent Channel Crosstalk | Adjacent Channel Rejection: > 70dB | | Squelch | 22dB SINAD (±3dB) default setting | | Intermodulation Distortion | Attenuation: > 50dB | | Blocking | > 80dB | | Output Power | 1kHz @ < 1% distortion, peak power, @32Ω: 100mW (per output) | | Load Impedance | 9.5 Ohms | | Tone Control | High Boost
Selectable: +2 dB, +4 dB @ 10 kHz | | Limiter | Selectable: 3-9
Limits volume adjustment knob. Selected value analogous to volume knob increment | | Battery Type/Life | 2 x AA, Approx 4-6 Hours | | Dimensions (HxWxD) | 3.89 x 2.59 x 0.9" (99 x 66 x 23mm) | | Weight | 7.05 oz (200g) (With Batteries) | | | | Package Weight | 6.9 lb | | Box Dimensions (LxWxH) | 18.3 x 14.6 x 2.6" |
