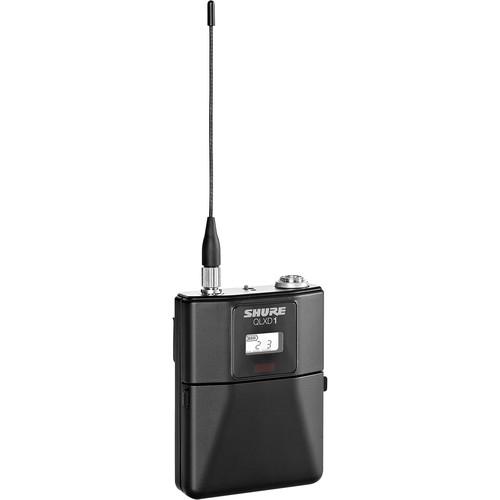

User Manual for Shure QLXD1 Wireless Bodypack Transmitter Click to enlarge the picture
Contents of the user manual for the Shure QLXD1 Wireless Bodypack Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure QLXD1 Wireless Bodypack Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description For capturing audio, the QLXD1 Wireless Bodypack Transmitter (534 to 598 MHz) by Shure is a good 24-bit digital audio solution. It can be used for wireless vocals and instruments in audio applications such as in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20 Hz to 20 kHz frequency range and has over 120 dB of dynamic range. Features AES 256-bit encryption for secure transmission and up to 9 hours continuous use with two AA alkaline batteries. The QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 328' range. All metal construction ensures durability and with a wide selection of compatible microphones choices, this bodypack transmitter when paired with a wireless receiver, provides clear audio and gets the job done.This QLXD1 transmitter offers more than 60 available channels per frequency band and is built with a backlit LCD display to allow for navigation though the menus and controls. A detachable 1/4 wave antenna and TA4M mini connector are also featured with external charging contacts to allow for docked charging. The optional Shure SB900 lithium-ion rechargeable battery (sold separately) can provide up to 10 hours of continuous operation. With clearly defined performance, the QLXD1 wireless transmitter delivers good clean audio and provides professional features for demanding live sound events and installations. - Compatible with these microphones:
SM35, MX150/O, MX150/C, WL183, WL184, WL185, WL93, WB98H/C, MX153B, and MX153T - Over 120 dB of dynamic range with no transmitter gain adjustments needed
- Selectable display mode showing group/channel, frequency, or battery runtime
- Easy pairing of transmitters and receivers over IR scan and sync
- Features a backlit LCD with easy to navigate menus and controls
- AES 256-bit encryption for secure transmission
- 328 feet line-of-sight operating range
- Up to 9 hours continuous operation with two AA alkaline batteries and up to 10 hours with the optional Shure SB900 lithium-ion rechargeable battery
- Rugged metal construction
UPC: 042406346689 In the Box Shure QLXD1 Wireless Bodypack Transmitter (534 to 598 MHz) 2 x AA Batteries Black Zippered Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD1 Wireless Bodypack Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure QLXD1 Specs | | | Frequency Range | 20 Hz to 20 kHz | | Band | 534 to 598 MHz | | Housing | Cast Aluminum | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Runtime | At 10 mW:
Shure SB900: up to 10 Hours
Alkaline: up to 9 Hours | | Audio Input | Connector: 4-Pin Male Mini Connector (TA4M)
Configuration: Unbalanced
Impedance: 1 MOhm
Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 V pp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: −120 dBV, A-Weighted, Typical | | RF Output | Connector: SMA
Antenna Type: 1/4 Wave
Impedance: 50 Ohms
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW or 10 mW
Note: See Frequency Range and Output Power Table, Varies by Region | | Dimensions (H x W x D) | 3.38 x 2.57 x 0.92" / 86 x 65 x 23 mm | | Weight | 4.9 oz / 138 g, without Batteries | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 13.0 x 5.0 x 3.4" |
