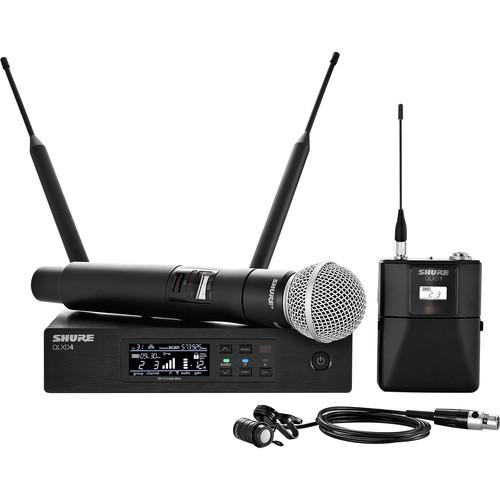

Product description For capturing audio, the QLXD124/85 VHF Handheld and Lavalier Combo Wireless Mic System by Shure is a good choice. It can be used for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, live performance spaces, and more. It features 24-bit digital audio, network control and AES-256 encryption. The QLXD124/85 wireless system is built with switching diversity and automatic channel scan, and has one-touch IR sync capabilities to make finding an open frequency quick. Featuring a frequency range of 20 Hz to 20 kHz, it offers more than 60 available channels per frequency band. The handheld and bodypack transmitters also have backlit LCD displays to allow for navigation though the menus and controls. With clearly defined performance, the QLXD124/85 delivers good clean audio and provides professional features for demanding live sound events and installations. The QLXD124/85 system includes a QLXD4 receiver, QLXD1 transmitter, WL185 microphone, QLXD2/SM58 transmitter, PS23 power supply, two detachable 1/2 wave antennas, two 2' BNC cables with bulkhead adapters, two zipper bags, four AA alkaline batteries, and rackmount hardware. Note: Note: Bodypack and handheld transmitters cannot be used simultaneously. - QLXD2/SM58 VHF Handheld Wireless Transmitter (V50: 174 to 216 MHz) For capturing audio, the QLXD2/SM58 VHF Handheld Wireless Transmitter by Shure is a good choice to get the job done. Featuring transparent 24-bit digital audio quality, it is used for wireless vocals in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20 Hz to 20 kHz frequency response and has more than 60 available channels per frequency band. Powered by 2 AA batteries, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (328 ft) range. All-metal construction ensures durability and a wide selection of compatible microphone choices is ideal for your presentation.
- For the Shure QLX-D wireless system
- Features interchangeable Shure microphone capsules
- AES 256-bit encryption for secure transmission
- Up to 9-hour continuous use with 2 x AA alkaline batteries
- Optional Shure SB900 lithium-ion rechargeable battery (sold separately) provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction
- Transmitter has 328' line-of-sight operating range
- Features frequency and power lockout
UPC: 042406463201 - WL185 Cardioid Lavalier Microphone The Shure WL185 is a cardioid subminiature lavalier microphone with signal characteristics ideal for general sound reinforcement applications. The cardioid pick up pattern provides adequate rejection of off-axis ambient signal that can cause noise and feedback. The low-profile subminiature design is ideal for applications where the microphone must be concealed. The hardwired 4-foot cable terminates to a 4-pin TA4-female connector which is compatible with Shure wireless transmitters and power supplies.
- Subminiature Profile
- The miniature capsule is easy to conceal during video, broadcast, stage and sound reinforcement applications
- Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the capsule, reducing noise and feedback
- Full Signal Reproduction
- A wide frequency response and high SPL rating results in full, clear audio reproduction for speech
- TA4-Female Connection
- The hardwired cable terminates to a TA4-female connection, compatible with Shure wireless microphone transmitters

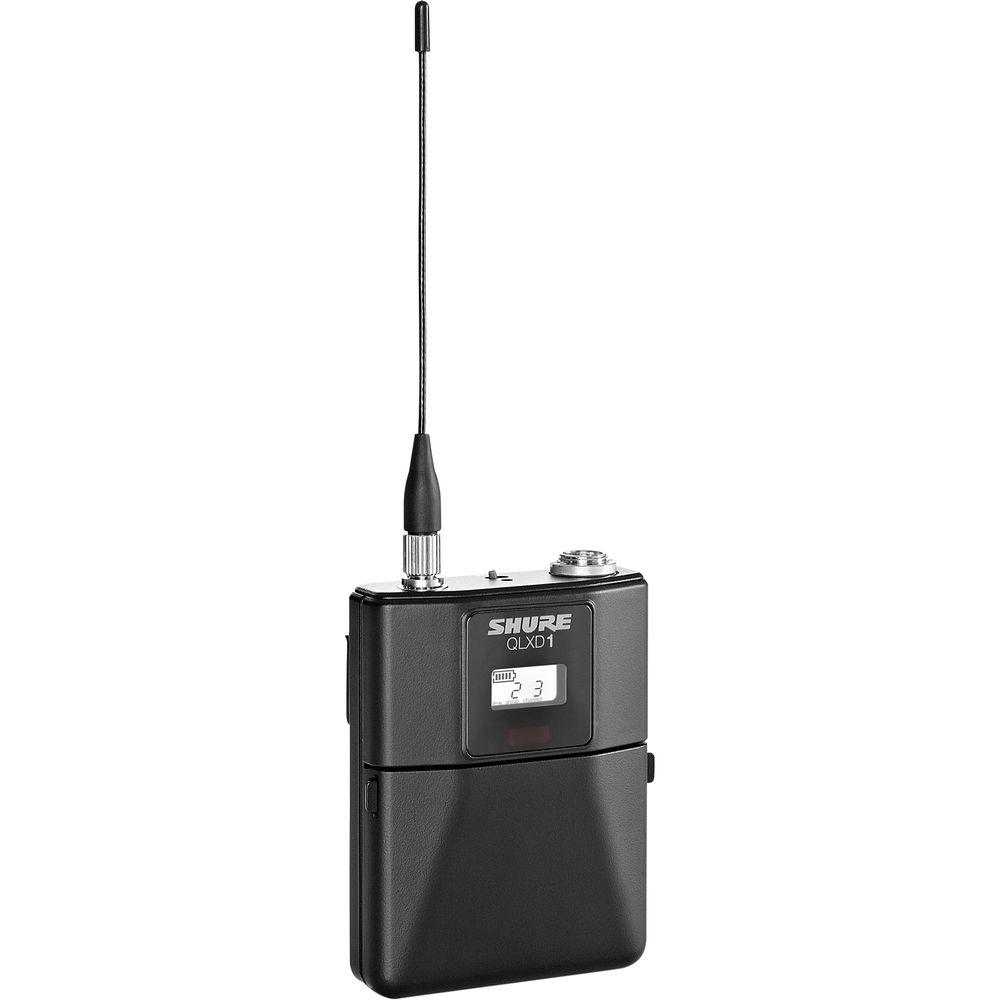

UPC: 042406055321 - QLXD1 VHF Wireless Bodypack Transmitter (174 to 216 MHz) For capturing audio, the QLXD1 VHF Wireless Bodypack Transmitter (174 to 216 MHz) by Shure is a good 24-bit digital audio solution. It can be used for wireless vocals and instruments in audio applications such as in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20 Hz to 20 kHz frequency range and has over 120 dB of dynamic range. Features AES 256-bit encryption for secure transmission and up to 9 hours continuous use with two AA alkaline batteries. The QLXD1 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 328' range. All metal construction ensures durability and with a wide selection of compatible microphones choices, this bodypack transmitter when paired with a wireless receiver, provides clear audio and gets the job done.This QLXD1 transmitter offers more than 60 available channels per frequency band and is built with a backlit LCD display to allow for navigation though the menus and controls. A detachable 1/4 wave antenna and TA4M mini connector are also featured with external charging contacts to allow for docked charging. The optional Shure SB900 lithium-ion rechargeable battery (sold separately) can provide up to 10 hours of continuous operation. With clearly defined performance, the QLXD1 wireless transmitter delivers good clean audio and provides professional features for demanding live sound events and installations.
- Compatible with these microphones:
SM35, MX150/O, MX150/C, WL183, WL184, WL185, WL93, WB98H/C, MX153B, and MX153T - Over 120 dB of dynamic range with no transmitter gain adjustments needed
- Selectable display mode showing group/channel, frequency, or battery runtime
- Easy pairing of transmitters and receivers over IR scan and sync
- Features a backlit LCD with easy to navigate menus and controls
- AES 256-bit encryption for secure transmission
- 328 feet line-of-sight operating range
- Up to 9 hours continuous operation with two AA alkaline batteries and up to 10 hours with the optional Shure SB900 lithium-ion rechargeable battery
- Rugged metal construction

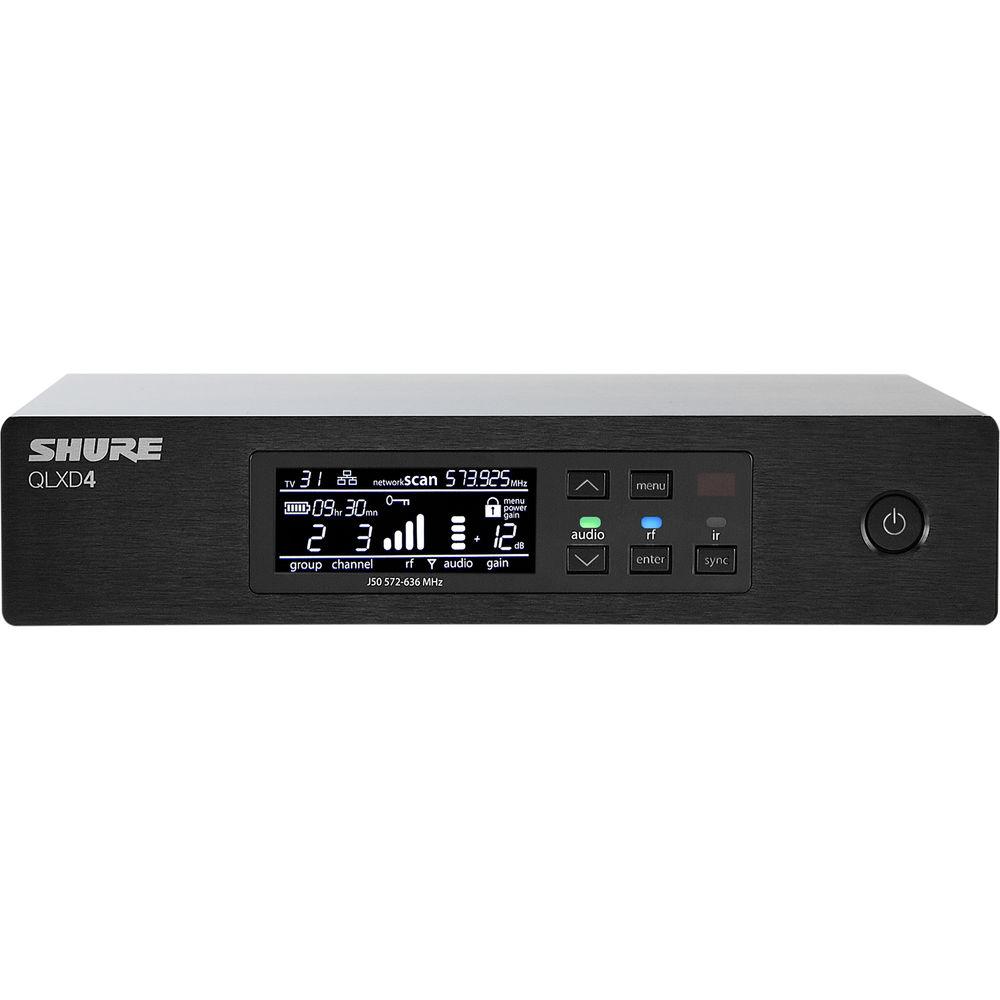

UPC: 042406463096 - QLXD4 VHF Digital Wireless Receiver (V50: 174 to 216 MHz) Designed for capturing audio, the QLXD4 VHF Digital Wireless Receiver by Shure offers 24-bit digital audio quality and solid RF spectrum reception. When paired with a wireless transmitter and microphone, it can be used for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, live performance spaces, and more. It features more than 60 preset channels per frequency band, network control, and AES 256-bit encryption. The QLXD4 wireless receiver is built with switching diversity and automatic channel scan, and has IR one-touch sync capabilities to make finding an open frequency quick. This receiver features a 20 Hz to 20 kHz frequency range, and a high-contrast LCD display. This allows for clear navigation though the menus and controls. With clearly defined performance, the QLXD4 delivers clean audio and provides professional features for demanding live sound events and installations. The QLXD4 receiver is built with two detachable 1/2 wave antennas and has balanced 1/4" line outputs, and XLR balanced output connectors. The XLR outputs are switchable from mic/line. Ethernet networking enables networked channel scanning across multiple receivers. Wireless Workbench software allows for remote control of receiver settings from a PC or Mac. Included are a PS23 power supply, two 1/2 wave antennas, two 2' BNC cables with bulkhead adapters, Ethernet cable, and rackmount hardware. Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
- Audio and RF LED meters with peak indicators to monitor your performance
- Digital predictive switching diversity receiver to capture the clearest sound
- Up to 17 compatible systems per 6 MHz TV band, and 22 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Automatic channel scan quickly finds the cleanest frequency
- Selectable display mode showing group/channel, frequency, or battery runtime
- Compatible with Shure Wireless Workbench 6 control software
- Rugged metal construction
UPC: 042406463348 In the Box Bundle Items QLXD2/SM58 VHF Handheld Wireless Transmitter (V50: 174 to 216 MHz) tybtqacctrfure WL185 Cardioid Lavalier Microphone QLXD1 VHF Wireless Bodypack Transmitter (174 to 216 MHz) QLXD4 VHF Digital Wireless Receiver (V50: 174 to 216 MHz) tybtqacctrfure - 2 x BNC Bulkhead Adapters
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD124 85 VHF Handheld and Lavalier Combo Wireless Mic System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - QLXD2/SM58 VHF Handheld Wireless Transmitter (V50: 174 to 216 MHz)
| RF Carrier Frequency Range | V50: 174 to 216 MHz | | Working Range | 328' / 100 m | | RF | Tuning Step Size: 25 kHz, Varies by Region | | Image Rejection | >70 dB, Typical | | RF Sensitivity | −97 dBm at 10−5 BER | | Latency | <2.9 ms | | Frequency Response | 20 Hz to 20 kHz | | Audio Dynamic Range | System Gain @ +10: >120 dB, A-Weighted, Typical | | Total Harmonic Distortion (THD) | −12 dBFS Input, System Gain @ +10: <0.1% | | Polarity | System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 6.35 mm (1/4-inch) Output. | | Operating Temperature Range | 0° to 122°F / -18° to 50°C
Note: Battery Characteristics May Limit this Range | | Storage Temperature Range | -20° to 165°F / -29° to 74°C
Note: Battery Characteristics May Limit this Range | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Runtime | At 10 mW
Shure SB900: up to 10 Hours
Alkaline: up to 9 Hours | | Audio Input | Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), Typical
Note: Dependent on Microphone Type | | Maximum Input Level | 1 kHz at 1% THD: 145 dB SPL (SM58), Typical
Note: Dependent on Microphone Type | | Capsule | SM58 | | RF Output | Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 khz
Modulation Type: Shure Proprietary Digital
Power: 1 mW or 10 mW (Varies by Region) | | Housing | Machined Aluminum | | Dimensions (L x Diam) | 10.1 x 1.5" / 256 x 37 mm | | Weight | 12.2 oz / 347 g without Batteries | - WL185 Cardioid Lavalier Microphone
| Transducer | Electret Bias | | Polar Pattern | Cardioid | | Frequency Response | 50 Hz to 17 kHz | | Dynamic Range (Typical) | 102 dB | | Signal-to-Noise Ratio | 18 dB SPL (A-weighted) | | Maximum Input Sound Level | 130 dB | | Power Requirements | Regulated Nominal +5 VDC (2 to 10 VDC) | | Output Impedance | 28 ohms | | Output Connector | TA4-Female | | Pad | No | | Low Frequency Roll-Off | No | | Cable Length | 4' (1.2 m) | | Weight | not specified by manufacturer | | | | Box Dimensions (LxWxH) | 6.9 x 4.4 x 3.5" | - QLXD1 VHF Wireless Bodypack Transmitter (174 to 216 MHz)
| | | Frequency Range | 20 Hz to 20 kHz | | Band | 174 to 216 MHz | | Housing | Cast Aluminum | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Runtime | At 10 mW:
Shure SB900: up to 10 Hours
Alkaline: up to 9 Hours | | Audio Input | Connector: 4-Pin Male Mini Connector (TA4M)
Configuration: Unbalanced
Impedance: 1 MOhm
Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 V pp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: −120 dBV, A-Weighted, Typical | | RF Output | Connector: SMA
Antenna Type: 1/4 Wave
Impedance: 50 Ohms
Occupied Bandwidth: <200 kHz
Modulation Type: Shure Proprietary Digital
Power: 1 mW or 10 mW
Note: See Frequency Range and Output Power Table, Varies by Region | | Dimensions (H x W x D) | 3.38 x 2.57 x 0.92" / 86 x 65 x 23 mm | | Weight | 4.9 oz / 138 g, without Batteries | | | | Box Dimensions (LxWxH) | 12.65 x 4.63 x 3.25" | - QLXD4 VHF Digital Wireless Receiver (V50: 174 to 216 MHz)
| | | RF Carrier Frequency Range | V50: 174 to 216 MHz | | Working Range | 328' / 100 m
Note: Actual Range Depends on RF Signal Absorption, Reflection, and Interference | | RF | Tuning Step Size: 25 kHz, Varies by Region | | Image Rejection | >70 dB, Typical | | RF Sensitivity | −97 dBm at 10-5 BER | | Latency | <2.9 ms | | Audio Frequency Response | QLXD1: 20 Hz to 20 kHz (±1 dB)
QLXD2: Dependent on Microphone Type | | Audio Dynamic Range | System Gain @ +10: >120 dB, A-Weighted, Typical | | Total Harmonic Distortion (THD) | −12 dBFS Input, System Gain @ +10: <0.1% | | Polarity | System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 1/4" / 6.35 mm Output | | Operating Temperature Range | 0 to 122°F / -18 to 50°C
Note: Battery Characteristics May Limit This Range | | Storage Temperature Range | -20 to 165°F / -29 to 74°C

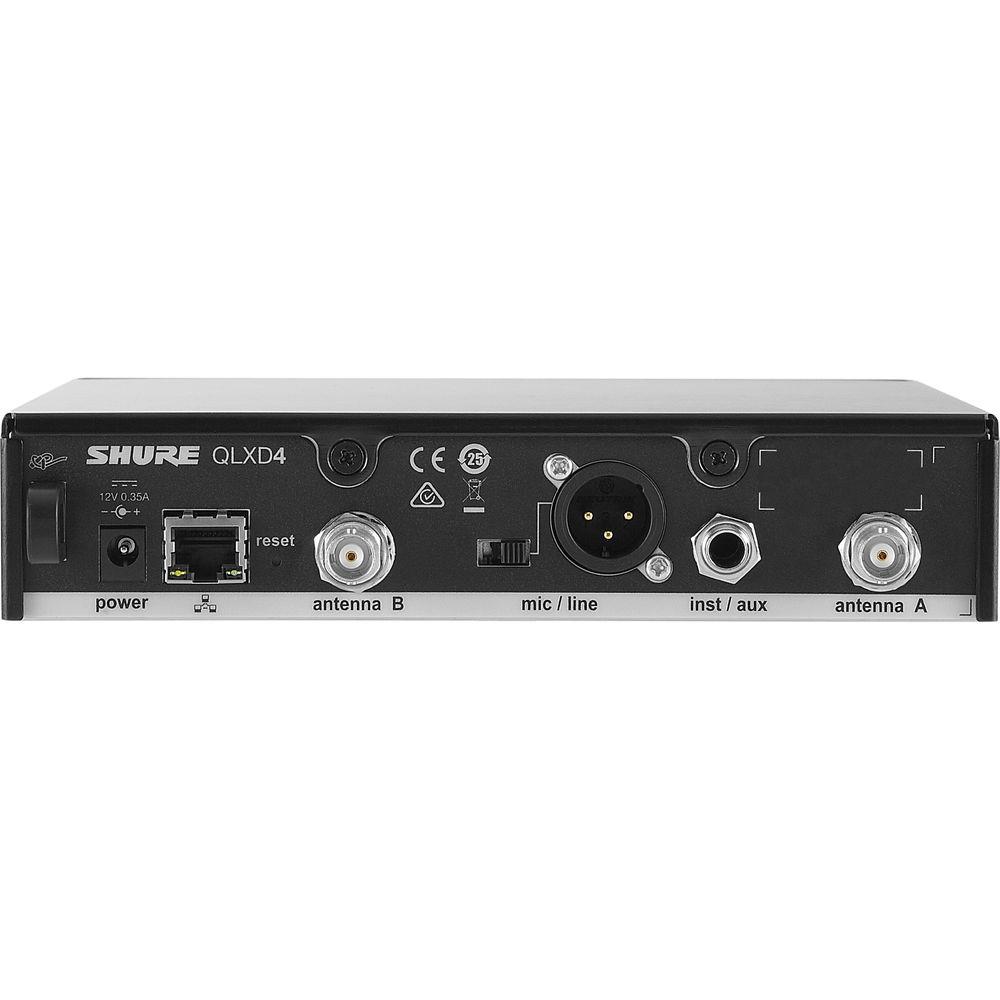

Note: Battery Characteristics May Limit This Range | | | | Housing | Steel | | RF Input | Spurious Rejection: >80 dB, Typical
Connector Type: BNC
Impedance: 50 Ohms | | Audio Output | Gain Adjustment Range: -18 to +42 dB in 1 dB Steps
Configuration: 1/4" / 6.35 mm, Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground)
XLR: Balanced (1=Ground, 2=Audio +, 3=Audio −)
Impedance 1/4" / 6.35 mm, 100 Ohms (50 Ohms Unbalanced)
XLR: 100 Ohms
Full Scale Output: 1/4" / 6.35 mm, +12 dBV
XLR: LINE Setting= +18 dBV, MIC Setting= −12 dBV, Mic/Line Switch: 30 dB Pad
Phantom Power Protection: 1/4" / 6.35 mm, Yes
XLR: Yes | | Networking | Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP Address
Maximum Ethernet Cable Length: 328' / 100 m | | Power Requirement | 12 VDC @ 0.4 A, Supplied by External Power Supply (Tip Positive) | | Dimensions (H x W x D) | 1.63 x 7.75 x 5.94" / 41 x 197 x 151 mm | | Weight | 1.71 lb / 777 g |
