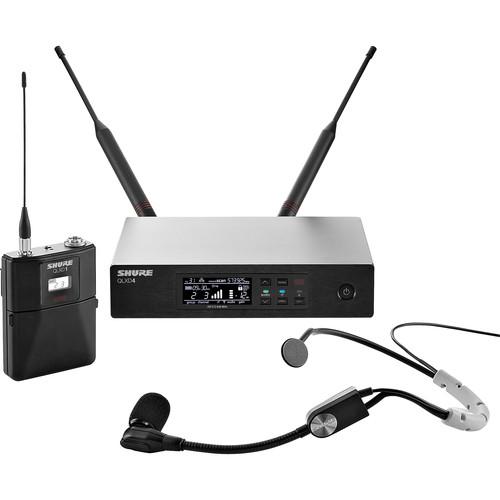

Product description For capturing audio the QLXD14/SM35 Wireless Headworn Microphone System by Shure is a good choice. It can be used for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, live performance spaces, and more. It features 24-bit digital audio, network control, and AES-256 encryption. The QLX-D wireless system is built with switching diversity and automatic channel scan, and has IR sync capabilities to make finding an open frequency quick. Featuring a frequency range of 20 Hz to 20 kHz, it offers more than 60 available channels per frequency band. With clearly defined performance the QLX-D delivers clean audio and provides professional features for demanding live sound events and installations. The QLXD14/SM35 system includes a QLXD4 receiver, PS23 power supply, two 1/2 wave antennas, two 2' BNC cables with bulkhead adapters, QLXD1 bodypack transmitter, two AA Alkaline batteries, and rackmount hardware. - Digital predictive switching diversity
- Up to 17 compatible systems per 6 MHz TV band, and 22 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
UPC: 042406350181 In the Box Shure QLXD14/SM35 Wireless Headworn Microphone System (H50: 534 to 598 MHz) SM35 Performance Headset Condenser Microphone (TA4F) QLXD1 Wireless Bodypack Transmitter (534 to 598 MHz) QLXD4 Digital Wireless Receiver (H50: 534 to 598 MHz) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD14 SM35 Wireless Headworn Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure QLXD14/SM35-H50 Specs | | | RF Carrier Frequency Range | H50: 534 to 598 MHz | | Working Range | 328' (100 m)
Note: Actual range depends on RF signal absorption, reflection and interference | | RF | Tuning Step Size: 25 kHz, varies by region | | Image Rejection | Greater than 70 dB, typical | | RF Sensitivity | -97 dBm at 10-5 BER | | Latency | Less than 2.9 ms | | Audio Frequency Response | QLXD1: 20 Hz - 20 kHz (±1 dB) | | Audio Dynamic Range | System Gain @ +10: Greater than 120 dB, A-weighted, typical | | Total Harmonic Distortion (THD) | -12 dBFS Input, System Gain @ +10: Less than 0.1% | | Polarity | System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 1/4" (6.35 mm) output | | Operating Temperature Range | 0 to 122°F (-18 to 50°C)
Note: Battery characteristics may limit this range | | Storage Temperature Range | -20 to 165°F (-29 to 74°C)
Note: Battery characteristics may limit this range. | | | | Type | Electret Condenser | | Frequency Response | 40 Hz to 20 kHz | | Polar Pattern | Cardioid | | | | Housing | Steel | | Power Requirement | 12 VDC @ 0.4 A, supplied by external power supply (tip positive) | | RF Input | Spurious Rejection: Greater than 80 dB, typical
Connector Type: BNC
Impedance: 50 ohms | | Audio Output | Gain Adjustment Range: -18 to +42 dB in 1 dB steps
Configuration: 1/4" (6.35 mm), Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground)
XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance 1/4" (6.35 mm), 100 ohms (50 ohms Unbalanced)
XLR: 100 ohms
Full Scale Output: 1/4" (6.35 mm), +12 dBV
XLR: LINE setting= +18 dBV, MIC setting= -12 dBV Mic/Line Switch: 30 dB pad
Phantom Power Protection: 1/4" (6.35 mm), Yes
XLR: Yes | | Networking | Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Ethernet Cable Length: 328' (100 m) | | Dimensions (H x W x D) | 1.63 x 7.75 x 5.94" (41 x 197 x 151 mm) | | Weight | 1.71 lb (777 g) | | | | Housing | Cast aluminum | | Mic Offset Range | 0 to 21 dB (in 3 dB steps) | | Battery Type | Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V | | Battery Runtime | At 10 mW:
Shure SB900: up to 10 hours
Alkaline: up to 9 hours | | Audio Input | Connector: 4-pin male mini connector (TA4M)
Configuration: Unbalanced
Impedance: 1 MOhm
Maximum Input Level 1 kHz at 1% THD: 8.5 dBV (7.5 Vpp)
Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20: -120 dBV, A-weighted, typical | | RF Output | Connector: SMA
Antenna Type: 1/4 wave
Impedance: 50 ohms
Occupied Bandwidth: Less than 200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW
Varies by region | | Dimensions (H x W x D) | 3.38 x 2.57 x 0.92" (86 x 65 x 23 mm) | | Weight | 4.9 oz (138 g) without batteries | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 19.5 x 17.4 x 4.3" |
