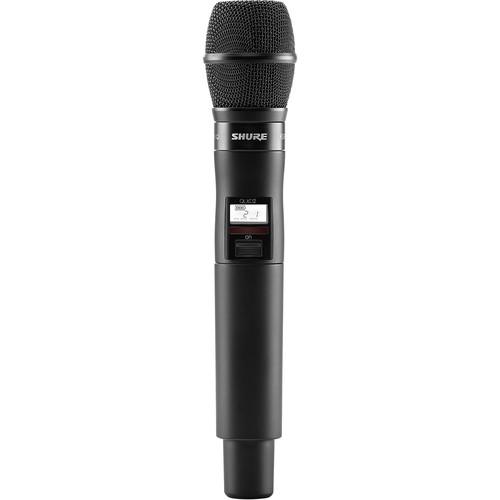

Product description The QLXD2/KSM9HS Handheld Wireless Transmitter from Shure offers transparent 24-bit digital audio quality and efficient RF spectrum usage. It is suitable for transmitting wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the transmitter quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 330’ operating range. All-metal construction ensures durability. This transmitter comes with a KSM9HS microphone cartridge. - 20 Hz to 20 kHz frequency range with flat response
- Comes with KSM9HS microphone cartridge
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range - no transmitter gain adjustment needed
- 1 or 10 mW selectable RF output power
- Up to 9 hours of continuous use with 2 x AA alkaline batteries
- Optional Shure SB900 lithium-ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 330' line-of-sight operating range
- Rugged metal construction
- Frequency and power lockout
UPC: 042406468916 In the Box Shure QLXD2 Handheld Wireless Transmitter with KSM9HS Cartridge (X52: 902 to 928 MHz) Microphone Clip 2 x AA Alkaline Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD2 Handheld Wireless Transmitter with KSM9HS Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure QLXD2 Specs | RF Carrier Frequency Range | X52: 902 to 928 MHz | | Working Range | 330' (100.6 m) | | RF | Tuning Step Size: 25 kHz, varies by region | | Image Rejection | >70 dB, typical | | RF Sensitivity | −97 dBm at 10−5 BER | | Latency | <2.9 ms | | Frequency Response | 50 to 20,000 Hz | | Audio Dynamic Range | System Gain @ +10: >120 dB, A-weighted, typical | | Total Harmonic Distortion (THD) | −12 dBFS input, System Gain @ +10: <0.1% | | Polarity | System Audio: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 1/4" (6.35 mm) output. | | Operating Temperature Range | 0 to 122°F (-18 to 50°C) (Battery characteristics may limit this range) | | Storage Temperature Range | -20 to 165°F (-29 to 74°C) (Battery characteristics may limit this range) | | Mic Offset Range | 0 to 21 dB (in 3 dB steps) | | Battery Type | Shure SB900 rechargeable Li-Ion or AA batteries 1.5 V | | Battery Runtime | At 10 mW
Shure SB900: up to 10 hours
Alkaline: up to 9 hours | | Audio Input | Configuration: unbalanced
Maximum Input Level 1 kHz at 1% THD: 150.9 dB SPL (SM58), typical | | Capsule | KSM9HS | | RF Output | Antenna Type: Integrated single band helical
Occupied Bandwidth: 600 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW (varies by region) | | Housing | Machined aluminum | | Dimensions (L x Diam) | 10.1 x 2.0" (256 x 51 mm) | | Weight | 12.2 oz (347 g) without batteries |
