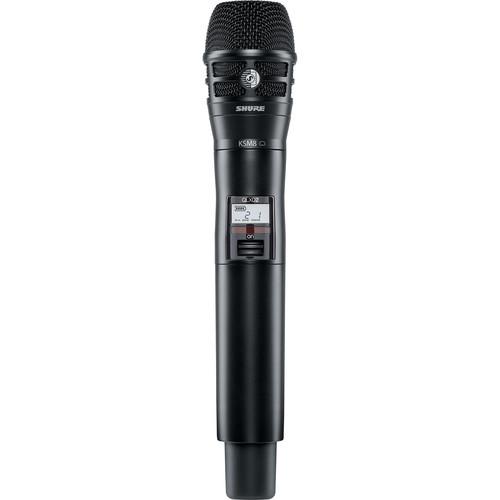

User Manual for Shure QLXD2 KSM8 Handheld Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Shure QLXD2 KSM8 Handheld Wireless Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure QLXD2 KSM8 Handheld Wireless Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description Unveiled: Shure KSM8 Microphones Read More The QLXD2/KSM8 Handheld Wireless Microphone Transmitter by Shure features a cardioid polar pattern and transparent 24-bit digital audio quality and is used for wireless vocals in presentation spaces, music venues, houses of worship, DJ setups, and more. It offers a 20 Hz to 20 kHz frequency response and has more than 60 available channels per frequency band. Powered by 2 AA batteries, the QLXD2 quickly syncs with a wireless receiver—sold separately—over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100m range. All-metal construction ensures durability and a wide selection of compatible microphone choices gives it additional versatility. - Patented cartridge design featuring two ultrathin diaphragms (one active and one passive) and groundbreaking inverted airflow system
- Exceptional control of proximity effect vastly increases working distance without on-axis coloration
- Accurate frequency response due to controlled proximity effect, which allows for neutral mid- and high-frequency reproduction
- Off-axis attenuation is flat and broad resulting in superior quality of rejection of unwanted sound sources for increased vocal clarity
- Shock mount design for exceptional rejection of handling noise without any loss of low-frequency response
- Dent-resistant, hardened carbon-steel grille design lined with hydrophobic woven fabric provides exceptional plosive and wind protection, while offering virtually waterproof protection
UPC: 042406464932 In the Box Shure QLXD2/KSM8 Handheld Wireless Transmitter (G50: 470.120 to 533.920 MHz) 2 x AA Batteries Battery Contact Cover Microphone Clip Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD2 KSM8 Handheld Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure QLXD2 Specs | RF Carrier Frequency Range | G50: 470.120 to 533.920 MHz | | Working Range | 328' / 100 m | | RF | Tuning Step Size: 25 kHz, Varies by Region | | Image Rejection | >70 dB, Typical | | RF Sensitivity | −97 dBm at 10−5 BER | | Latency | <2.9 ms | | Frequency Response | 20 Hz to 20 kHz | | Audio Dynamic Range | System Gain @ +10: >120 dB, A-Weighted, Typical | | Total Harmonic Distortion (THD) | −12 dBFS Input, System Gain @ +10: <0.1% | | Polarity | System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 1/4" Output | | Operating Temperature Range | 0° to 122°F / -18° to 50°C
Note: Battery Characteristics May Limit this Range | | Storage Temperature Range | -20° to 165°F / -29° to 74°C
Note: Battery Characteristics May Limit this Range | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Runtime | At 10 mW
Shure SB900: up to 10 Hours
Alkaline: up to 9 Hours | | Audio Input | Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), Typical
Note: Dependent on Microphone Type | | Maximum Input Level | 1 kHz at 1% THD: 145 dB SPL (SM58), Typical
Note: Dependent on Microphone Type | | Capsule | KSM8 Dualdyne Cartridge | | RF Output | Antenna Type: Integrated Single-Band Helical
Occupied Bandwidth: <200 khz
Modulation Type: Shure Proprietary Digital
Power: 1 mW or 10 mW (Varies by Region) | | Housing | Machined Aluminum | | Dimensions (L x Diam) | 10.1 x 1.5" / 25.7 x 3.8 cm | | Weight | 12.2 oz / 346 g (without Batteries) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 12.6 x 4.8 x 3.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
