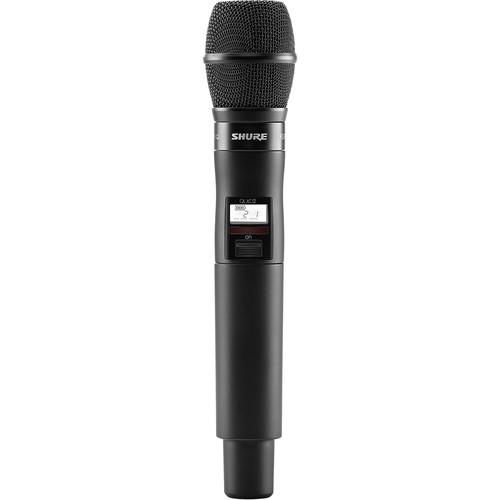

Product description For capturing audio, the QLXD2/KSM9 Handheld Wireless Transmitter by Shure is a good choice to get the job done. Featuring transparent 24-bit digital audio quality, it is used for wireless vocals in presentation spaces, music venues, houses of worship, DJ setups, and more. It features a 20 Hz to 20 kHz frequency response and has more than 60 available channels per frequency band. Powered by 2 AA batteries, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (328 ft) range. All-metal construction ensures durability and a wide selection of compatible microphone choices is ideal for your presentation. - For the Shure QLX-D wireless system
- Features interchangeable Shure microphone capsules
- AES 256-bit encryption for secure transmission
- Up to 9-hour continuous use with 2 x AA alkaline batteries
- Optional Shure SB900 lithium-ion rechargeable battery (sold separately) provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction
- Transmitter has 328' line-of-sight operating range
- Features frequency and power lockout
UPC: 042406468930 In the Box Shure QLXD2/KSM9 Handheld Wireless Transmitter (X52: 902 to 928 MHz) 2 x AA Batteries Battery Contact Cover Microphone Clip Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD2 KSM9 Handheld Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure QLXD2 Specs | RF Carrier Frequency Range | X52: 902 to 928 MHz | | Working Range | 328' / 100 m | | RF | Tuning Step Size: 25 kHz, Varies by Region | | Image Rejection | >70 dB, Typical | | RF Sensitivity | −97 dBm at 10−5 BER | | Latency | <2.9 ms | | Frequency Response | 20 Hz to 20 kHz | | Audio Dynamic Range | System Gain @ +10: >120 dB, A-Weighted, Typical | | Total Harmonic Distortion (THD) | −12 dBFS Input, System Gain @ +10: <0.1% | | Polarity | System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 6.35 mm (1/4-inch) Output. | | Operating Temperature Range | 0° to 122°F / -18° to 50°C
Note: Battery Characteristics May Limit this Range | | Storage Temperature Range | -20° to 165°F / -29° to 74°C
Note: Battery Characteristics May Limit this Range | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Runtime | At 10 mW
Shure SB900: up to 10 Hours
Alkaline: up to 9 Hours | | Audio Input | Configuration: Unbalanced
Maximum Input Level 1 kHz at 1% THD: 145 dB SPL (SM58), Typical
Note: Dependent on Microphone Type | | Maximum Input Level | 1 kHz at 1% THD: 145 dB SPL (SM58), Typical
Note: Dependent on Microphone Type | | Capsule | KSM9 | | RF Output | Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 khz
Modulation Type: Shure Proprietary Digital
Power: 1 mW or 10 mW (Varies by Region) | | Housing | Machined Aluminum | | Dimensions (L x Diam) | 10.1 x 1.5" / 256 x 37 mm | | Weight | 12.2 oz / 347 g without Batteries |
