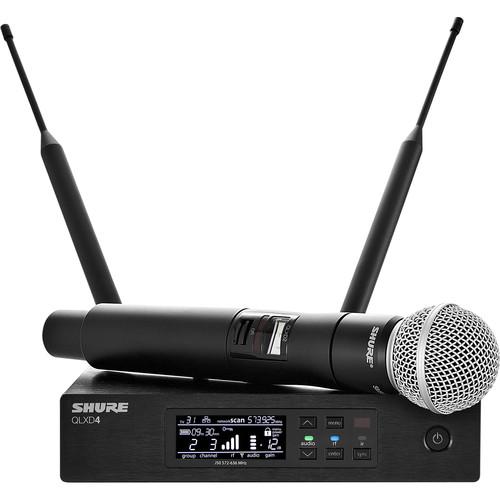

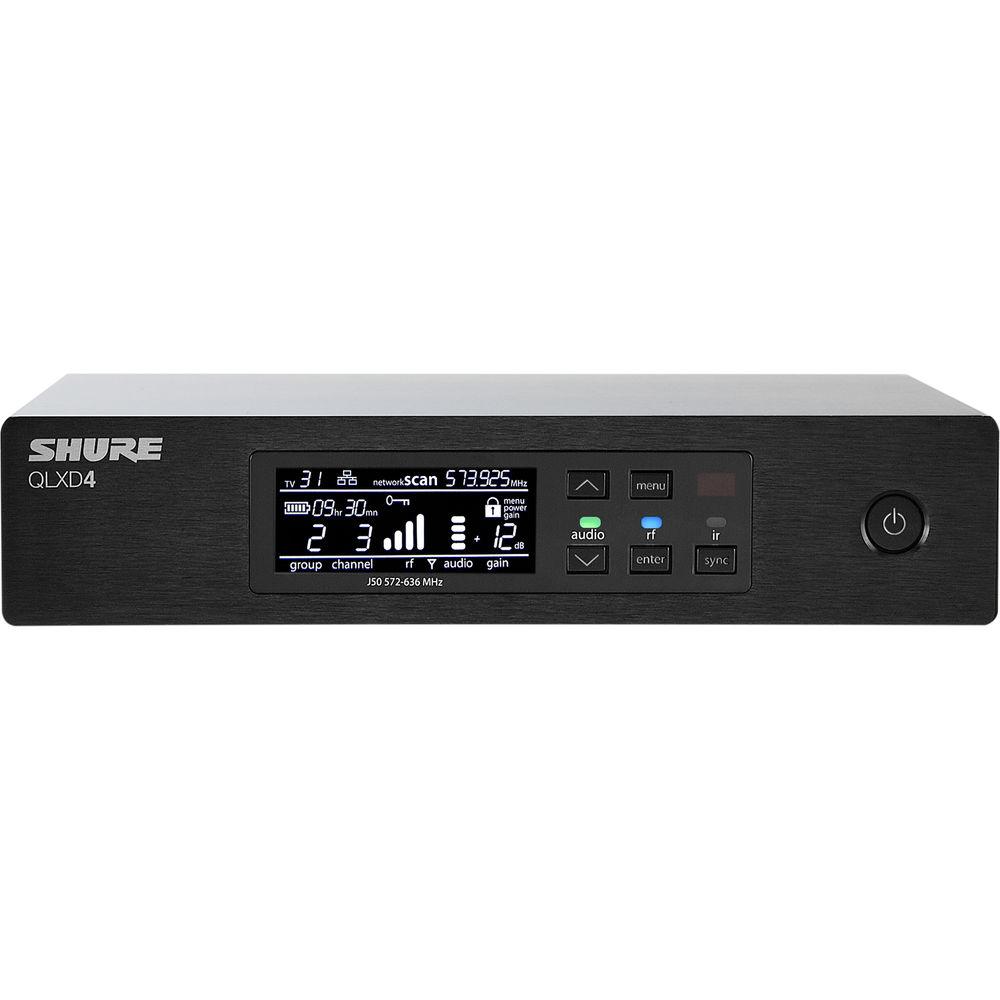

Product description The Shure QLXD24/SM58 VHF Handheld Wireless Microphone System can be used for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, live performance spaces, and more. It features 24-bit digital audio, network control, and AES-256 encryption. The QLXD wireless system is built with switching diversity and automatic channel scan and has IR sync capabilities to make finding an open frequency quick. Featuring a frequency range of 20 Hz to 20 kHz, it offers more than 60 available channels per frequency band. The handheld also has a backlit LCD display to allow for navigation though the menus and controls. With clearly defined performance, the QLXD delivers good clean audio and provides professional features for demanding live sound events and installations. The QLXD24/SM58 system includes a QLXD4 receiver, QLXD2 Transmitter with SM58 capsule, PS23 power supply, two 1/2 wave antennas, two 2' BNC cables with bulkhead adapters, a zipper bag, two AA Alkaline batteries, and rackmount hardware. - Interchangeable SM58 microphone cartridge
- Digital predictive switching diversity receiver to capture the clearest sound
- Up to 17 compatible systems per 6 MHz TV band, and 22 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Selectable display mode showing group/channel, frequency, or battery runtime
- Rugged metal construction

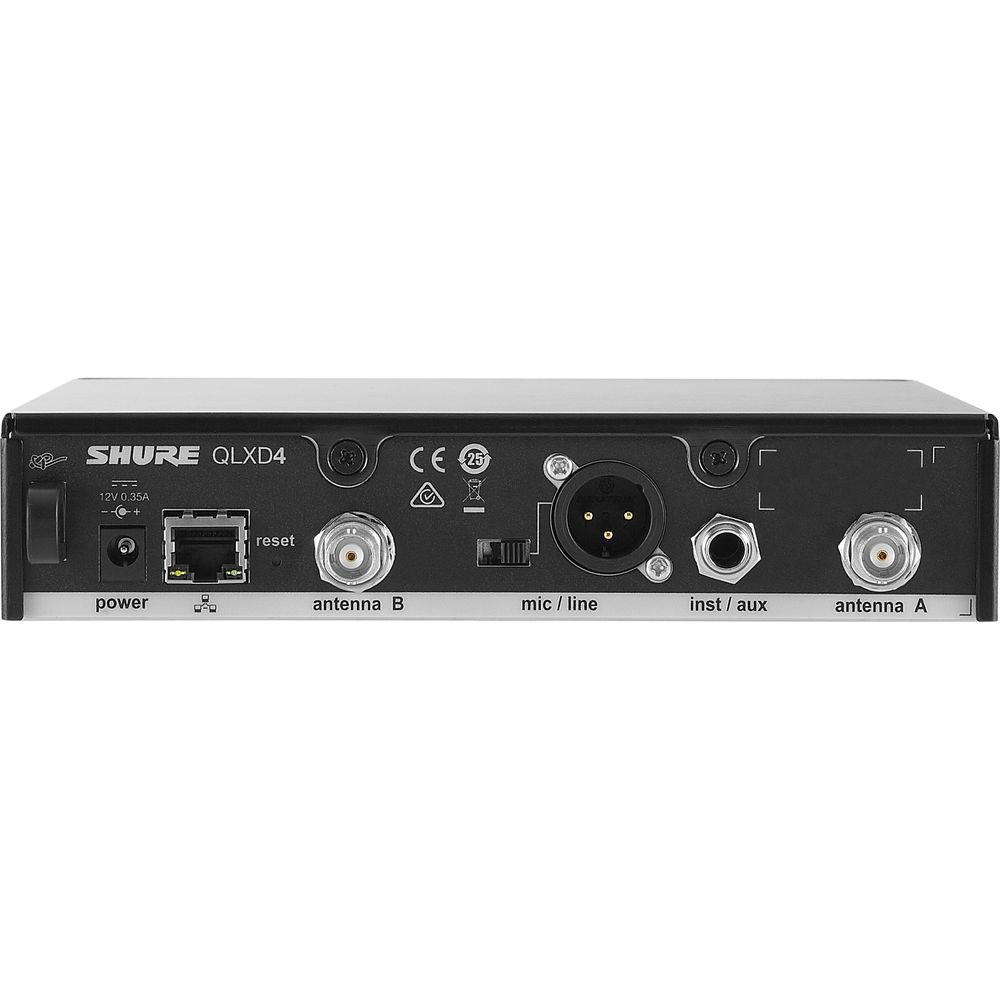

UPC: 042406463249 In the Box Shure QLXD24/SM58 VHF Handheld Wireless Microphone System (V50: 174 to 216 MHz) QLXD4 VHF Digital Wireless Receiver (V50: 174 to 216 MHz) QLXD2/SM58 VHF Handheld Wireless Transmitter (V50: 174 to 216 MHz) PS23US Power Supply Microphone Clip 2 x AA Batteries Battery Contact Cover 2 x 1/2 Wave Antennas 2 x BNC Cables 2 x BNC Bulkhead Adapters Rackmount Kit Zipper Bag Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure QLXD24 SM58 VHF Handheld Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure QLXD24/SM58-V50 Specs | | | RF Carrier Frequency Range | V50: 174 to 216 MHz | | Working Range | 328' / 100 mm
Note: Actual Range Depends on RF Signal Absorption, Reflection, and Interference | | RF | Tuning Step Size: 25 kHz, Varies by Region | | Image Rejection | >70 dB, Typical | | RF Sensitivity | -97 dBm at 10-5 BER | | Latency | <2.9 ms | | Audio Frequency Response | QLXD2: Dependent on Microphone Type | | Audio Dynamic Range | System Gain @ +10: >120 dB, A-Weighted, Typical | | Total Harmonic Distortion (THD) | −12 dBFS Input, System Gain @ +10: <0.1% | | Polarity | System Audio: Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 2 (with Respect to Pin 3 of XLR Output) and the Tip of the 1/4" / 6.35 mm Output | | Operating Temperature Range | 0 to 122°F / -18 to 50°C
Note: Battery Characteristics May Limit this Range | | Storage Temperature Range | -20 to 165°F / -29 to 74°C
Note: Battery Characteristics May Limit this Range | | | | Housing | Steel | | Power Requirement | 12 VDC @ 0.4 A, Supplied by External Power Supply (Tip Positive) | | RF Input | Spurious Rejection: >80 dB, Typical
Connector Type: BNC
Impedance: 50 Ohms | | Audio Output | Gain Adjustment Range: -18 to +42 dB in 1 dB Steps
Configuration: 1/4" (6.35 mm), Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground)
XLR: Balanced (1=Ground, 2=Audio +, 3=Audio −)
Impedance: 1/4" / 6.35 mm: 100 Ohms (50 Ohms Unbalanced), XLR: 100 Ohms
Full Scale Output: 1/4" / 6.35 mm, +12 dBV
XLR: LINE Setting= +18 dBV, MIC Setting= -12 dBV
Mic/Line Switch: 30 dB Pad
Phantom Power Protection: 1/4" / 6.35 mm, Yes
XLR: Yes | | Networking | Network Interface: Single-Port Ethernet 10/100 Mb/s
Network Addressing Capability: DHCP or Manual IP Address
Maximum Ethernet Cable Length: 328' / 100 m | | Dimensions (H x W x D) | 1.63 x 7.75 x 5.94" / 41 x 197 x 151 mm | | Weight | 1.71 lb / 777 g | | | | Housing | Machined Aluminum | | Mic Offset Range | 0 to 21 dB (in 3 dB Steps) | | Battery Type | Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V | | Battery Runtime | At 10 mW:
Shure SB900: Up to 10 Hours
Alkaline: Up to 9 Hours | | Audio Input | Configuration: Unbalanced
Maximum Input Level: 145 dB SPL (SM58), Typical (1 kHz @ 1% THD) | | RF Output | Antenna Type: Integrated Single Band Helical
Occupied Bandwidth: <200 khz
Modulation Type: Shure Proprietary Digital
Power: 1 or 10 mW | | Dimensions (L x Diam) | 10.1 x 2.0" / 256 x 51 mm | | Weight | 12.2 oz / 347 g, Without Batteries | | | | Type | SM58 | | Frequency Response | 20 Hz to 20 kHz | | Polar Pattern | Cardioid | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 19.3 x 17.4 x 4.0" |
