User Manual for Shure R189 Mini-Shotgun Microphone Cartridge Click to enlarge the picture
Contents of the user manual for the Shure R189 Mini-Shotgun Microphone Cartridge
- Product category: Audio Conferencing Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Audio Conferencing
 |
User manual for the Shure R189 Mini-Shotgun Microphone Cartridge contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

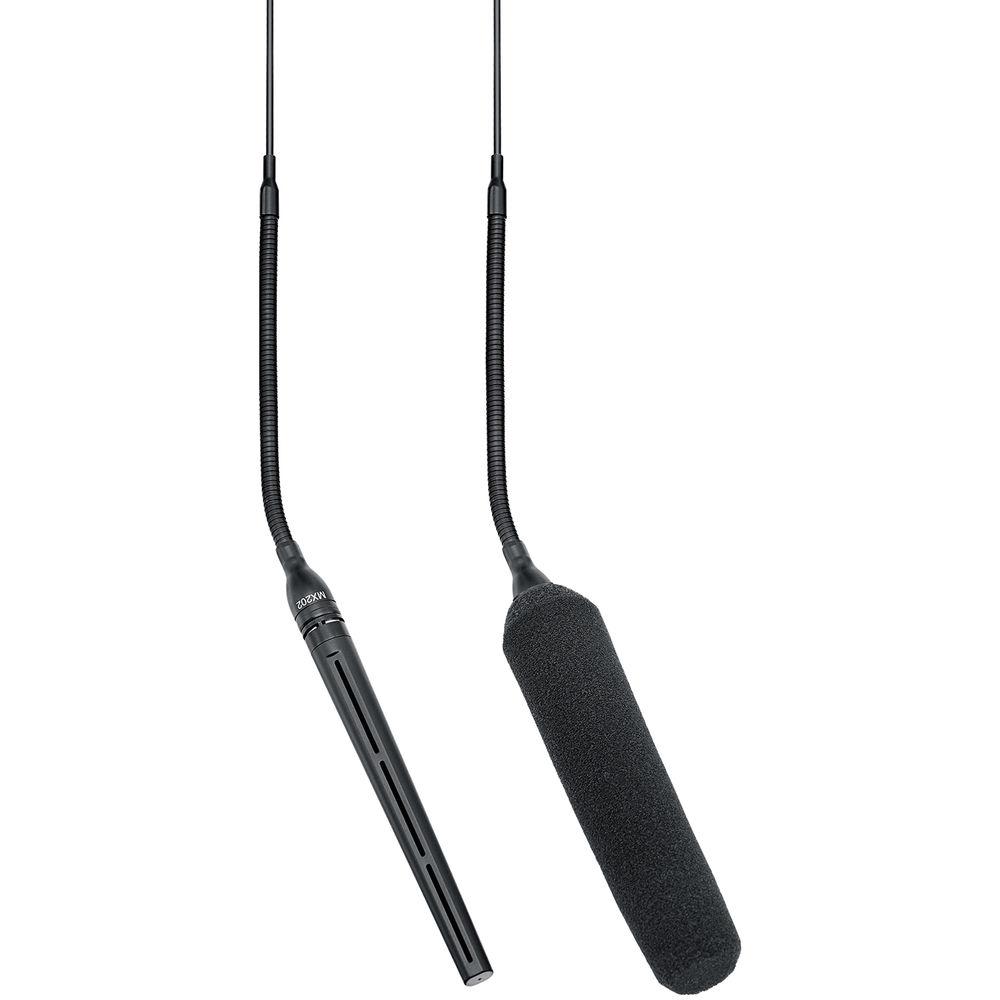

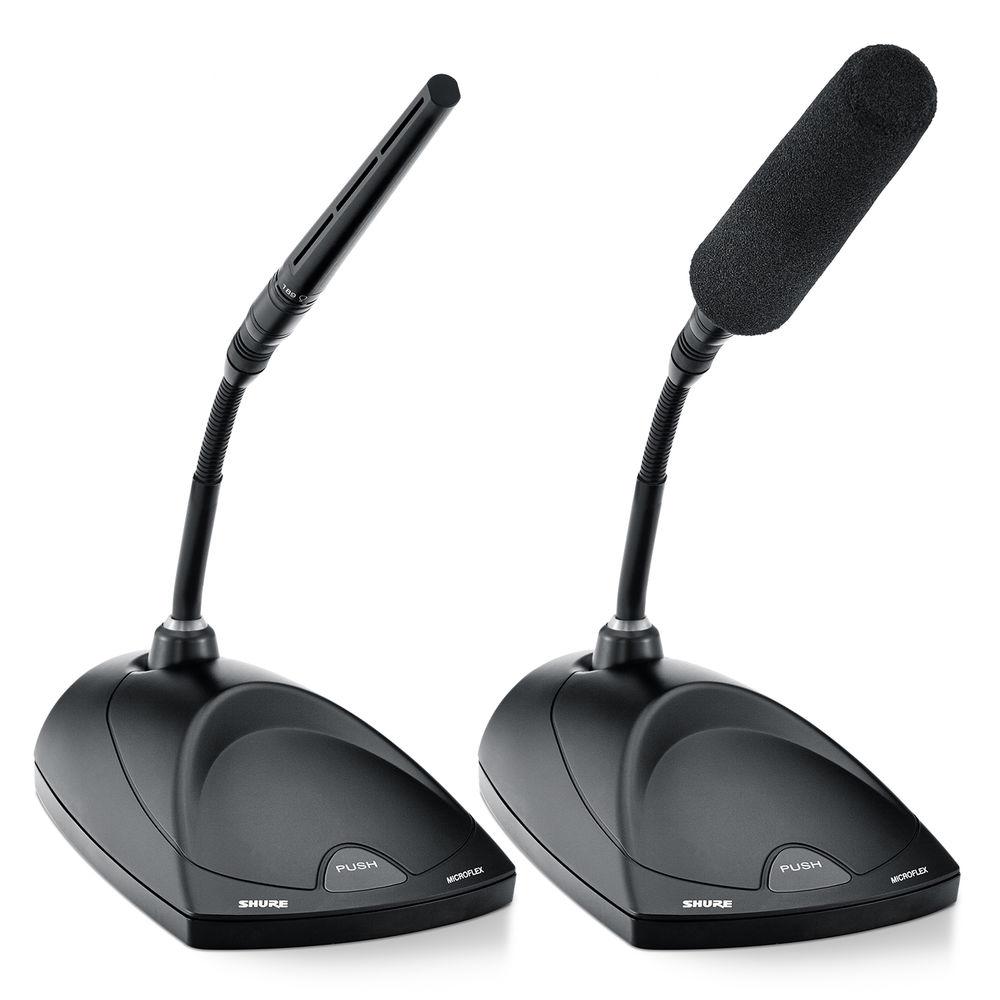

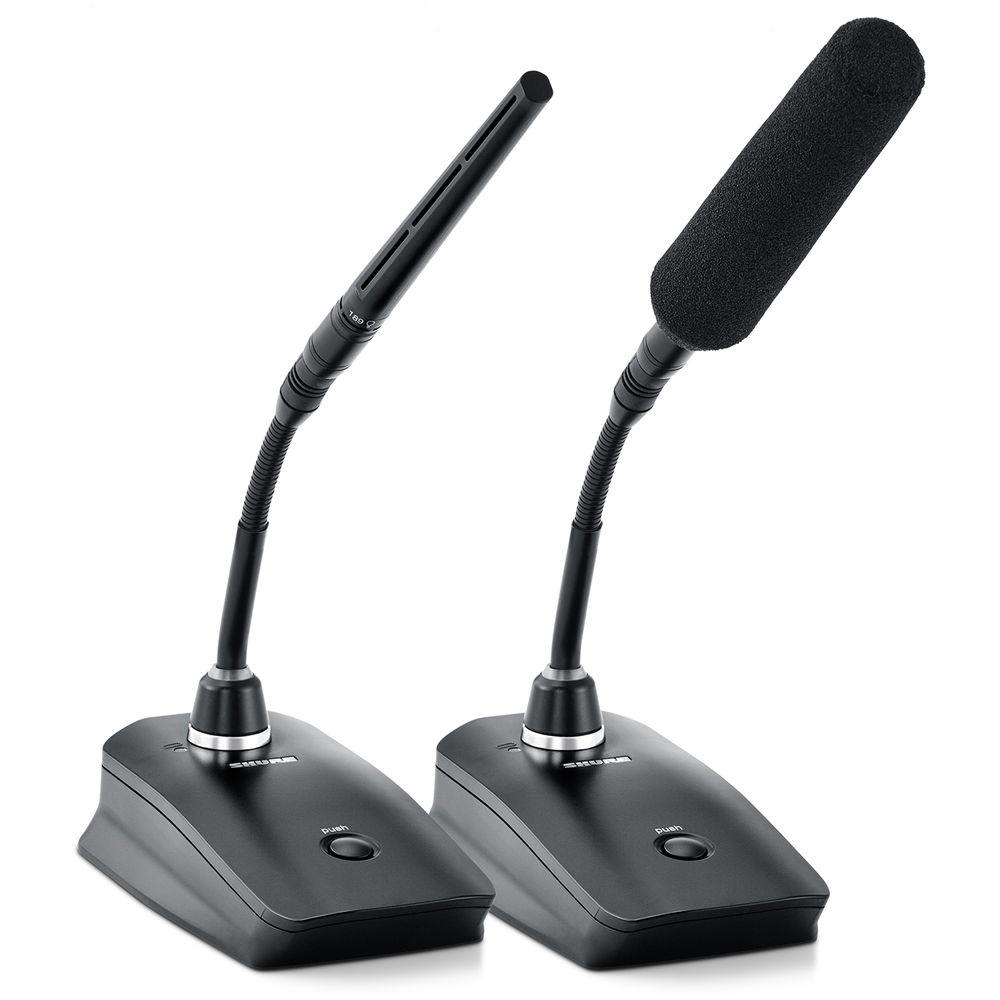

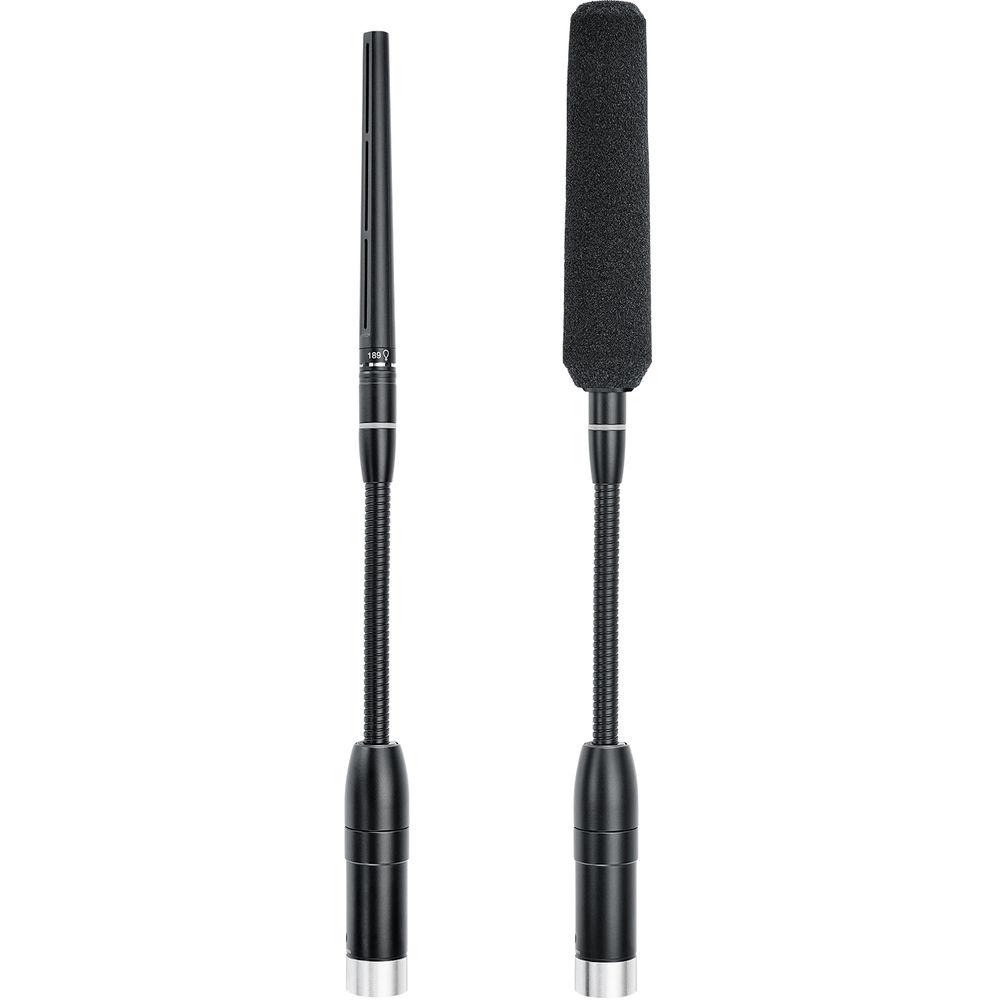

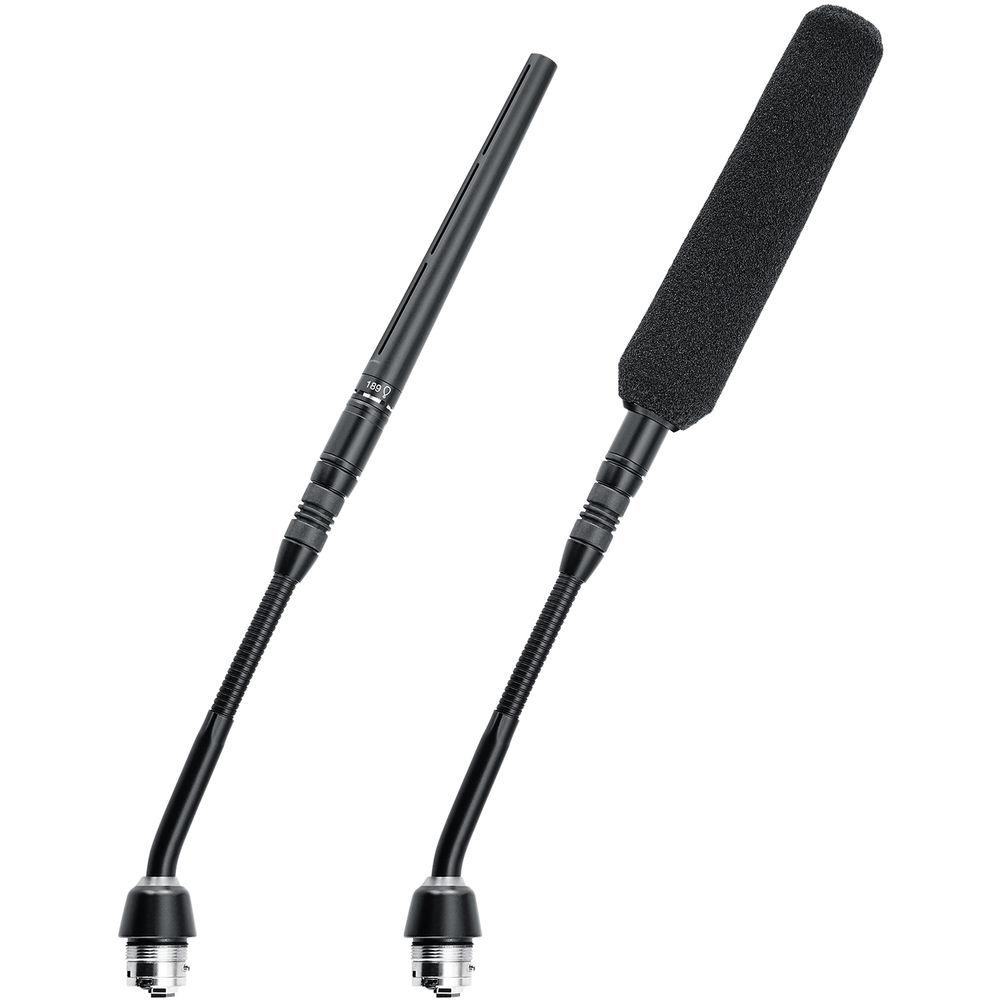

Product description The R189 Mini-Shotgun Microphone Cartridge from Shure is a highly directional microphone that threads onto all Microflex (MX) gooseneck and overhead microphones, including Microflex Wireless (MXW), Microflex Complete (MXC), and Microflex Complete Wireless (MXCW). The narrow pickup pattern rejects ambient noise and prevents feedback in rooms with sound reinforcement, making it a suitable choice for noisy conference rooms and live presentations. - Highly directional lobar polar pattern
- CommShield technology guards against interference from cellular RF devices and digital bodypack transmitters.
- Threaded 1-cm cartridge compatible with all Microflex gooseneck and overhead models, including Microflex wireless and Microflex.
- Features a 100° pickup area, narrower than a supercardioid or cardioid pattern.
In the Box Shure R189 Mini-Shotgun Microphone Cartridge Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure R189 Mini-Shotgun Microphone Cartridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure R189 Specs | Transducer Type | Electret Condenser | | Polar Pattern | Lobar | | Frequency Response | 50 Hz to 17 kHz | | Output Impedance | 170 Ohms | | Sensitivity | -33 dBV/Pa (22 mV) | | Maximum SPL | 121 dB SPL | | Signal to Noise Ratio | 68 dB | | Dynamic Range | 95 dB SPL | | Common Mode Rejection | 45 dB, Minimum | | Output Clipping Level | Preamplifier: -8 dBV (0.4 V) | | Self Noise | 36 dB | | Operating Temperature Range | 0 to 135°F / -18 to 57°C | | Polarity | 3-Pin XLR: Positive Sound Pressure on Diaphragm Produces Positive Voltage on Pin 2 Relative to Pin 3 of Output XLR connector
5-Pin XLR: Positive Sound Pressure on Diaphragm Produces Positive Voltage on Pin 4 Relative to Pin 2 of Output XLR Connector | | Power Requirements | Phantom Power, 48-52 VDC, 8.0 mA | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
