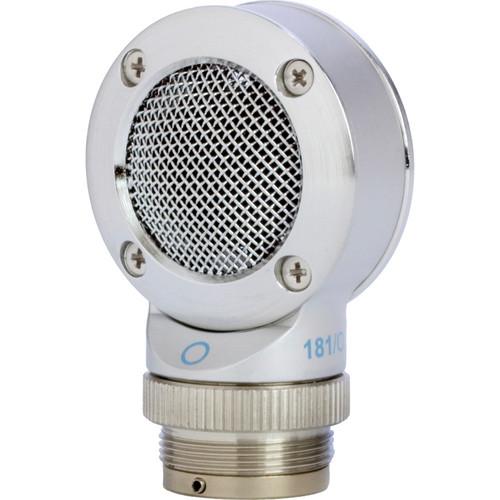

User Manual for Shure RPM181 O Omnidirectional Polar Pattern Capsule Click to enlarge the picture
Contents of the user manual for the Shure RPM181 O Omnidirectional Polar Pattern
- Product category: Modular Microphone Components Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Modular Microphone Components
|
User manual for the Shure RPM181 O Omnidirectional Polar Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The RPM181/O Omnidirectional Polar Pattern Capsule by Shure is one of four interchangeable capsules for Shure's Beta 181 side-address instrument microphone. It features a locking ring which provides a secure connection with the Shure RPM181/PRE. Paired with this preamp, its compact design weighs only 5.1 oz and gets close to any source even in the tightest conditions. With its wide frequency response and high SPL handling, it's great for capturing room ambience, string ensembles and used as a mono drum overhead. It also performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The capsule is made with a hardened steel mesh grille that resists denting, wear and abuse. Along with its compact form factor, the diaphragm provides exceptional audio with consistent, textbook-like polar responses resulting in a mic with noteworthy sound and versatility. - Interchangeable side-address Omnidirectional capsule for the Shure Beta 181
- Locking ring provides secure connection between capsule and Shure RPM181/PRE preamp
- Compact 5.1 oz design gets close to any source even in the tightest conditions
- Provides wide dynamic range and high SPL handling
- Performs with little to no crossover distortion and provides exceptional low-frequency reproduction
- Hardened steel mesh grille resists denting, wear and abuse
In the Box Shure RPM181/O Omnidirectional Polar Pattern Capsule Limited 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure RPM181 O Omnidirectional Polar Pattern Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure RPM181/O Specs | | | Type | Condenser | | Frequency Response | 20 to 20,000 Hz | | Polar Pattern | Omnidirectional | | Sensitivity | -52.0 dBV/Pa (2.6 mV) | | Output Impedance | 110 ohms (at 1 kHz) | | Signal to Noise Ratio | 70.5 dB | | Self Noise | 23.5 dB SPL-A | | Common Mode Rejection | ≥55 dB | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 | | Power Requirements | 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum | | Weight | 5.1 oz (145 grams) | | | | 1000 Ohm Load | 154.0 dB (1,000 ohm load) | | 2500 Ohm Load | 157.0 dB SPL | | | | 1000 Ohm Load | 130.5 dB | | 2500 Ohm Load | 133.5 dB | | | | 1000 Ohm Load | 7.5 dBV | | 2500 Ohm Load | 10.5 dBV |
