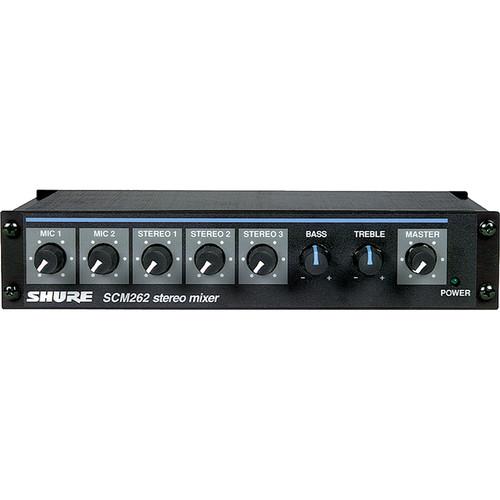

Product description The Shure SCM262 Stereo Microphone Mixer resembles a field mixer, but is in fact a compact mixer intended for sound reinforcement. The mixer features 2 balanced XLR microphone inputs, a 1/4" Phone line input, and 3 RCA phono line level inputs. There are stereo 1/4" phone and stereo RCA jacks on the output stage as well. The SCM262's multi-function DIP switches allow the user to customize the mixer for use in a variety of applications. Some of the functions include "Juke Box Muting" and "Paging with Ducking". The "Juke Box Mute" feature mutes background audio signal when a connected juke box is active. The SCM268 also features "paging with ducking". This allows the SCM268 to be used as a paging mixer. Background audio level is automatically reduced when paging microphones are active. - Quality Inputs and Outputs
- There are 2 balanced XLR Mic inputs and a 1/4" Phone line input. Balanced stereo (L/R) 1/4" TRS Phone outputs are also featured for maximum gain and low noise floor.
- Multi Function Dip Switches
- The SCM262 features multi function DIP switches allowing the user to customize the mixer for use in a variety of applications. Some of the functions include "Juke Box Muting" and "Paging with Ducking".
- Paging With Ducking
- This feature allows the SCM262 to be used as a paging mixer. Signal from the paging microphone is passed while simultaneously reducing the level of background music. Perfect for restaurants, bars, schools office settings etc.
- Juke Box Mute Feature
- The Juke Box Mute feature allows the SCM262 to integrate perfectly with external Juke Boxes. Signal from a Juke Box automatically mutes existing (background) audio. Those inputs remain muted for 30 seconds after the song has ended so that the following song can play without interruption.
- Stereo Line Inputs
- There are three RCA stereo inputs (L/R) for interfacing with consumer audio devices such as Stereo Systems, CD Players VCR's etc.
- Compact Design
- The compact rugged enclosure allows users to transport the SCM262 with confidence.
UPC: 042406060424 In the Box Shure SCM262 Stereo Microphone Mixer Rack Mount Hardware 1 Year Warranty User Manual PDF 952.8kbevfbxcwytavdwbefz Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SCM262 Stereo Microphone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SCM262 Specs | Inputs | 2 - Balanced XLR Microphone
1 - Balanced 1/4" Phone 3 - (L/R) Stereo RCA Phono | | Output | 2 - (L/R) Stereo Mic/Line switchable 1/4" Phone
2 - (L/R) Stereo AUX unbalanced RCA Phono | | Monitor/Headphone Out | No - AUX output serves as secondary output and cab be used as a monitor source | | ALT I/O | 2 - AUX RCA phono as described under outputs | | Link Input/Output | No | | Impedance | Input
MIC (XLR): Designed for use with < 600 ohm load, 1.4k ohms actual, -16dBV clipping level LINE: Designed for use with < 10k ohm load, 155k ohms actual, +24 dBV clipping level STEREO: Designed for use with < 2k ohm load, 21k ohms actual, > 28 dBV clipping level
Outputs MIC: Designed for use with > 600 ohm load, 3 ohms actual, -22 dBV clipping level
LINE: Designed for use with > 5k ohms, 300 ohms actual, +18 dBV clipping level AUX: Designed for use with > / - 10k ohms, 1.5k ohms actual, +5dBV clipping level | | Gain | Low-Impedance Mic Input (150 ohms): MIC 32dB, LINE 72dB, AUX 60dB - Outputs
Line Input: MIC -9dB, LINE 31dB, AUX 19dB - Outputs Stereo Input: MIC -5dB, LINE 35dB, AUX 23dB - Outputs | | Hum & Noise | Equivalent Input Hum and Noise: -125 dBV (150 ohm source; 22Hz to 22kHz)
Output Hum and Noise: (22 Hz to 22kHz; channel controls full counterclockwise) Master full counterclockwise -85dBV
Master full clockwise -60dBV | | Frequency Response | (Ref 1kHz, channel and master controls centered)
MIC/LINE Inputs: 150Hz to 20kHz + / - 2dB AUX Inputs: 20Hz to 20kHz + / -2dB | | Distortion | <0.25% at +4 dBu output level, (through 22Hz -22kHz filter; MIC inout 1 and Master at center, all other controls full counterclockwise) | | Metering | No | | Controls | Sealed Rotary Potentiometers: MIC 1-2, STEREO 1-3 and MASTER gain controls. BASS and TREBLE control.
DIP Switches | | Control Voltage Out | No | | Phantom Power | 12 Vdc open-circuit through 680 ohm resistors | | Operating Temperature | Operating: -7 to 49 degrees C (20 to 120 degrees F)
Storage: -29 to 74 degrees C (-20 to 165 degrees F) | | Power | SCM262: 100 - 120 Vac, 50/60 Hz, 60mA
SCM262E: 220 - 240 Vac, 50/60 Hz, 30mA | | Dimensions | 1.72 x 8.60 x 6.37 in. (43 x 218 x 162mm) | | Weight | 2.31 lbs (1.1kg) | | | | Package Weight | 5.55 lb | | Box Dimensions (LxWxH) | 14.0 x 10.2 x 3.0" |
