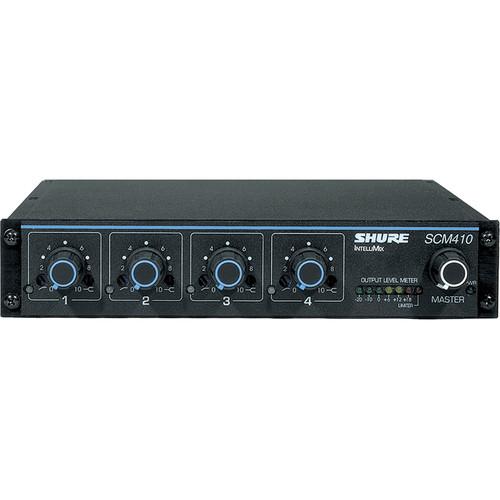

User Manual for Shure SCM410 4 Channel Automatic Mixer Click to enlarge the picture
Contents of the user manual for the Shure SCM410 4 Channel Automatic Mixer
- Product category: Install Sound Mixers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Install Sound Mixers
|
User manual for the Shure SCM410 4 Channel Automatic Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SCM410 4 Channel Automatic Mixer is a 4 channel microphone mixer designed for recording, sound reinforcement and broadcast application. The mixer will accept signal from dynamic and condenser microphone of any type. The rear panel features 4 balanced 3-pin XLR female microphone inputs and a single balanced XLR output that is capable of mic or line level signal. Each channel features an adjustable EQ for signal contouring and 12VDC phantom power is available for condenser microphones. Shure's patented IntelliMix technology incorporates functions that enable seamless, noise free automation and channel switching. The MaxBus feature controls the number of channels that may be activated for a single sound source. This enables one talker to activate one channel automatically, although additional channels may pick up the signal. Noise Adaptive Threshold is an auto adjusting noise level threshold that distinguishes between background noise and abrupt sound such as speech. The Last Mic Lock-On function keeps the most recently activated microphone open, allowing constant natural ambiance enabling noiseless, seamless channel switching. - 4-Channel mic mixer for recording, sound reinforcement, and broadcast
- Accepts signals from dynamic and condenser microphones
- 4 Balanced 3-pin XLR female microphone inputs and 1 balanced XLR output upon rear panel
- Adjustable EQ signal contouring and 12VDC phantom power upon each channel
- IntelliMix technology for noiseless automation and channel switches
- MaxBus feature controls channels activated for 1 sound source
- Noise Adaptive Threshold auto-adjusting noise level technology to distinguish background noise from speech
- Last Mic Lock-On function keeps most recently activated microphone open
- Multi-pin Logic connection provides Mute, Gate and Override remote control options
UPC: 042406072427 In the Box Shure SCM410 4 Channel Automatic Mixer Rack Mount Hardware 1 Year Warranty User Manual PDF 21.5mbawbxceqrabxyfdebreatzzwzwzxxwqeu Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SCM410 4 Channel Automatic Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SCM410 Specs | Inputs | 4 - XLR 3-pin Female mic level only | | Output | 1 - XLR 3-pin Male mic/line switchable | | Monitor/Headphone Out | No | | ALT I/O | AUX Output - 1 Phono unbalanced | | Link Input/Output | 9-pin serial | | Impedance | Input:
Mic - 19-600 ohm, 1.4k ohm actual, -14dBV clipping Output:
Line - .5k ohm, 300 ohm actual, +24dBV clipping Mic - .600 ohm, 3 ohm, -18dBV clipping
Aux - .10k ohm, 1.5k ohm, +14dBV clipping | | Gain | Low-impedance mic input 150 ohms:
Line - 80dB Mic - 40dB
Aux - 68dB | | Hum & Noise | 150 ohm source; through 22Hz - 22kHz filter:
Equivalent Input Hum and Noise: -123dBV max., -125dBV typical | | Frequency Response | Rated @ 1kHz, channel controls centered:
50Hz to 20kHz +2dB; -3dB corner @ 25Hz | | Distortion | < 0.1% @ +4 dBu output level, 50Hz to 20kHz | | Metering | 7-segment peak LED meter | | Control Voltage Out | No | | Phantom Power | 12 VDC | | Operating Temperature | Operating: -7 to 49 degrees C (20 to 120 degrees F)
Storage: -29 to 74 degrees C (-20 to 165 degrees F) | | Power | 100-120 Vac rated nominal, 50/60 Hz, 100mA (max.) | | Dimensions | 1.73 x 8.62 x 10.51" (44 x 219 x 267mm) HxWxD | | Weight | 3.86 lbs (1.75kg) | | | | Package Weight | 6.72 lb | | Box Dimensions (LxWxH) | 14.882 x 10.236 x 3.15" |
