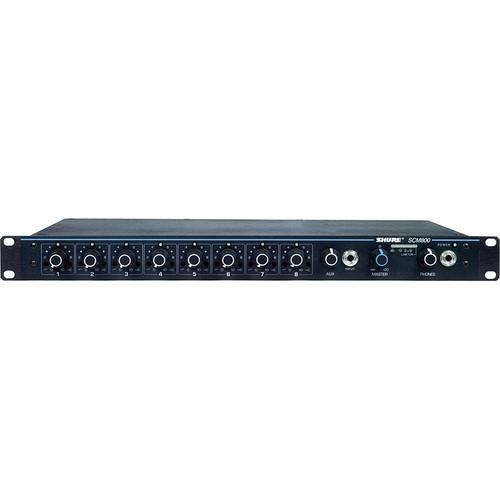

User Manual for Shure SCM800 8 Channel Microphone Mixer Click to enlarge the picture
Contents of the user manual for the Shure SCM800 8 Channel Microphone Mixer
- Product category: Install Sound Mixers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Install Sound Mixers
|
User manual for the Shure SCM800 8 Channel Microphone Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SCM800 8-Channel Microphone Mixer is a professional and compact (1RU) rack-mounted microphone and line level mixer with 8-channels featuring block connections. All 8 channels feature 1/4" phone inserts for direct connection to external processors, etc. Built-in limiters eliminate noise and distortion, and 48V phantom power is supplied to condenser microphones. All input channels feature a low frequency roll-off and high frequency shelving for user control over input signal. An Aux input enables connection to additional SCM-800 mixers for up to 32 microphone and line level inputs. The SCM-800 is more than suitable to handle audio mixing for general sound reinforcement, recording and public address applications. - 8-Channel Mic Mixer for General Use
- The rack-mounted SCM800 is appropriate for applications ranging from general sound reinforcement, recording, and public address use.
- Expandable to 32 Inputs
- The SCM-800 features 8 channels; multiple mixers may be linked for up to 32 channel operation.
- Mic and Line Level Switchable
- All inputs are capable of line level or microphone level signal. 48V phantom power is available for condenser microphones.
- Inserts
- 8 inserts are available for sending signal directly to effects and signal processors.
- Built In Limiter
- A limiter reduces distortion and noise caused by audio peaks.
- Low Frequency Roll-Off and High Pass Shelving
- All channels feature a low frequency roll-off and high-pass shelving switches.
UPC: 042406054942 In the Box Shure SCM800 8 Channel Microphone Mixer 1 Year Warranty User Manual PDF 1.6mbzrxzxfbxfvqdfzyvedzvtduuw Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SCM800 8 Channel Microphone Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SCM800 Specs | Total # Of Inputs | 8 Microphone / Line Switchable: Block Connections
1 AUX Input: 1/4" Phone | | Mic/Line Inputs | 8 Microphone / Line Switchable: Block Connections | | Stereo Line Inputs | None | | In-Line Inputs/Returns | None | | AUX Sends | None | | AUX Returns | None | | Inserts | 8 - 1/4" TRS Phone | | BUS (Group) Outputs | Stereo Output | | 2 Trk Master I/O | Block Connector | | ALT I/O | Link Out / Link In | | Monitor Outputs | Headphone Output: 1/4" TRS Phone | | EQ Section | Low Cut Filter / High Pass Shelving | | Solo/Mute | No | | Channel Level Control | Rotary Control Pots | | Trim/Gain Control | Rotary Control Pots | | Phantom Power | 48V DC | | Metering | Peak LED Metering | | Frequency Response | 50Hz to 20kHz | | Dynamic Range | not specified by manufacturer | | Signal-to-Noise Ratio | Equivalent Input Noise: -125 dBV (150Ω source; through 400Hz to 20kHz filter) | | Total Harmonic Distortion (THD) | <0.1% at '18 dBV output level, 50 Hz to 20 kHz (through 20 Hz-20 kHz filter; Input 1 and Master at 5, all other controls full counterclockwise) | | Power Supply | SCM800: 120 Vac rated nominal (see Voltage Selection for 230 Vac operation in User Guide), 50/60 Hz, 200 mA | | Dimensions | 1.75 x 19.01 x 12.48" (44.5 x 483 x 317mm) HxWxD | | Weight | 9.57 lbs (4.3kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 22.2 x 16.8 x 2.5" |
