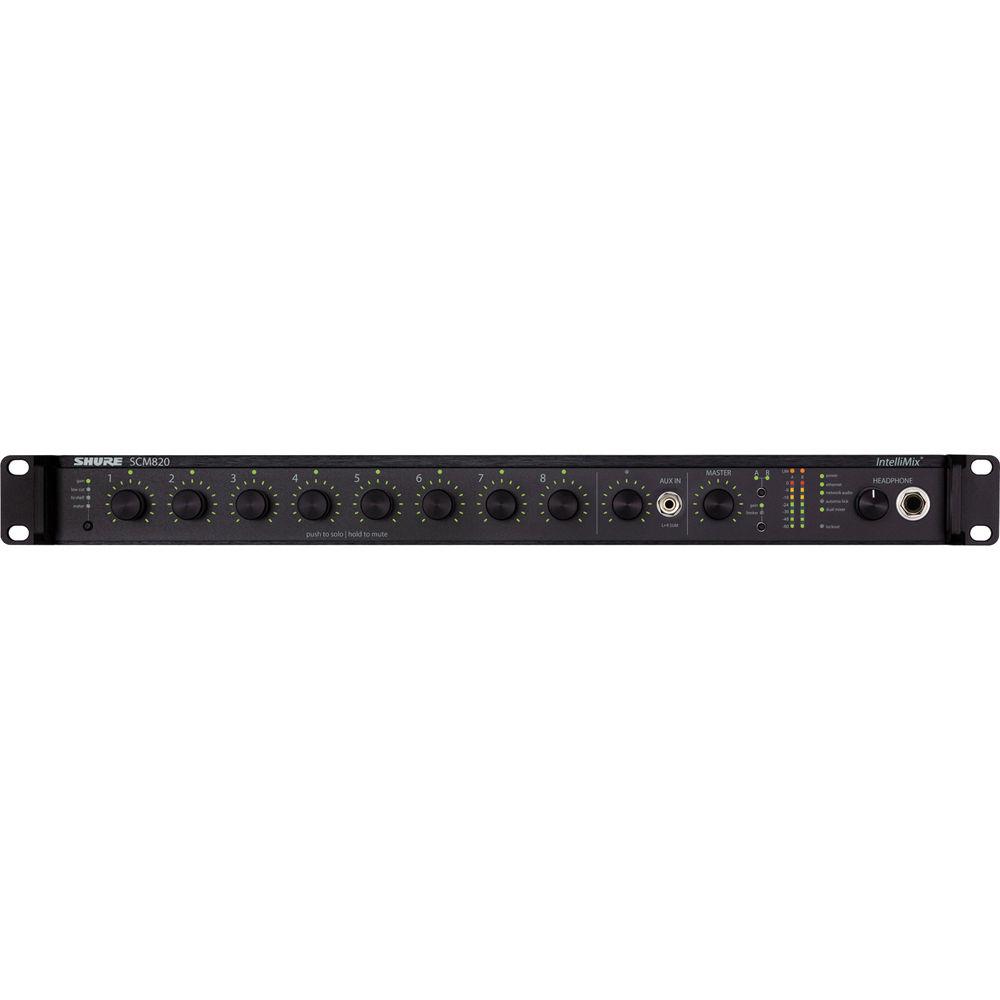

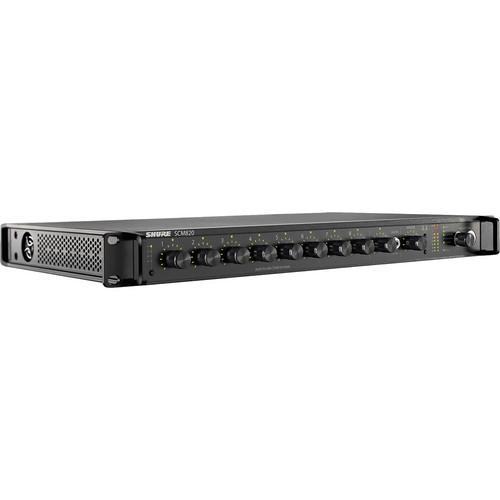

Product description The Shure SCM820-DAN Digital IntelliMix Automatic Mixer is an 8-channel digital automatic mixer designed for use in speech applications, including sound reinforcement, broadcasting and audio recording. It uses Intellimix technology to dramatically improve audio quality in any application where multiple microphones are required and to select channels to open to the mix bus, while attenuating other channels. It comes with a logic-enabled block connector with 8 inputs and features a Dante Digital Audio network interface card.Digital audio is carried over standard Ethernet using shielded Cat5e (or higher) cables. Dante provides low latency, tight clock synchronization, and high Quality-of-Service (QoS) to provide reliable audio transport to a variety of Dante devices. Dante audio can coexist safely on the same network as IT and control data, or can be configured to use a dedicated network. Note: Cat 5e cable is sold separately. IntelliMix Technology - Delivers seamless automatic mixing and reduced background noise through dynamic channel gating and attenuation
- NAT (Noise Adaptive Threshold) continuously adjusts the activation threshold for opening a channel
- Number of Open Microphones Attenuation (NOMA) determines the amount of gain attenuation for a mix output when the number of active microphones changes
- Last Mic Lock-On (LMLO) keeps the most recently activated microphone open until another microphone is activated
- MaxBus ensures that only one channel is opened per sound source, reducing comb filtering for clear and intelligible speech
- IntelliMix Modes offer five different mixer mode presets of reliable automixing styles (Classic, Smooth, Extreme, Custom, or Manual) to quickly tailor the mix for a particular application

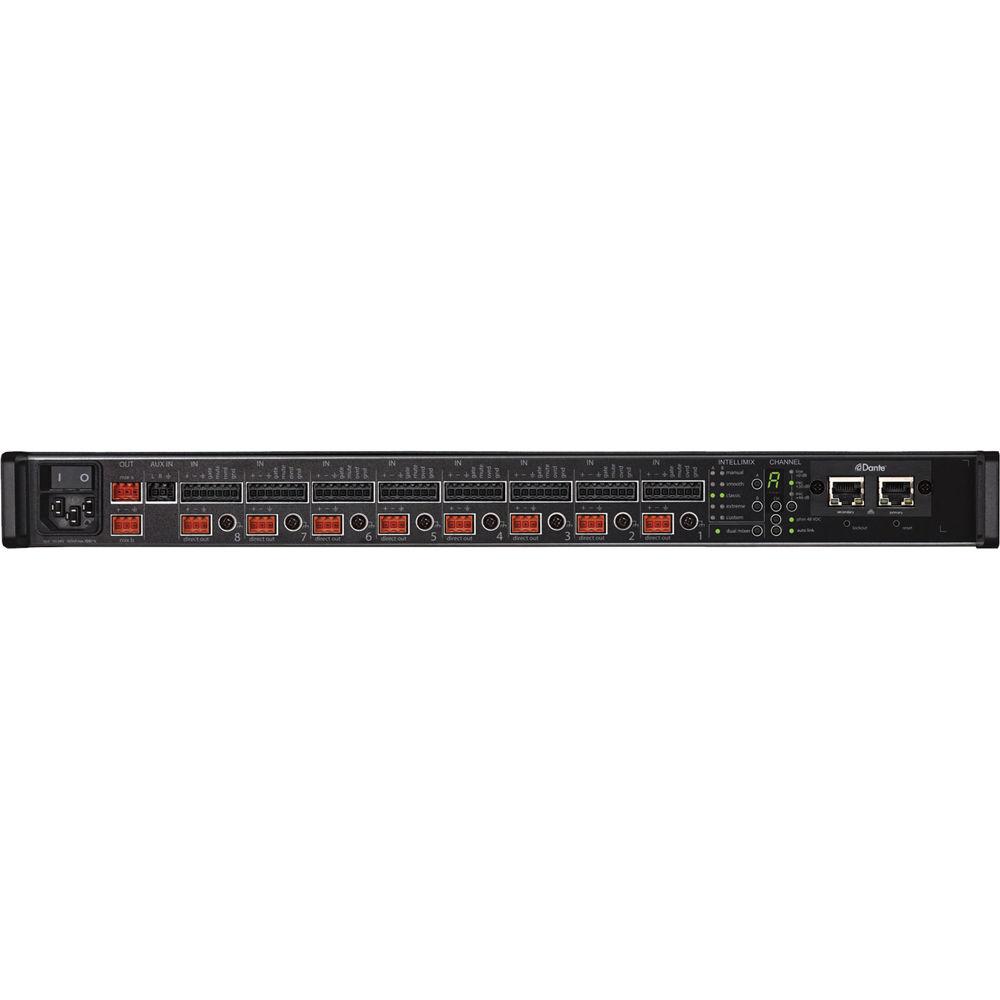

Enhanced I/O Support - Logic-enabled block connector with 8 inputs
- Per-channel direct outputs allows the mixer to be used as an insert processor
- Mix A and B outputs with selectable mic or line level connect to a sound reinforcement system, mixing console, or recording device
- Dual mixer operation enables routing of independent automixes to the mix A and B outputs, allowing two entirely different mixes to result from the same set of inputs
- Aux inputs on both the front and back panel easily connect to media players
- 1/4" (6.35mm) stereo headphone output for channel solo and mix monitoring
Comprehensive Control - Channel control knobs allow quick adjustment of gain, limiter, and EQ settings, and solo/mute functions on input channels
- Output mix controls and meters enable front-panel master gain and limiter control as well as signal monitoring
- LED meter rings display input audio or IntelliMix gain levels for each channel
- Browser-based control software delivers comprehensive software control, monitoring, routing, and configuration of all signals and settings and adds a parametric 8-band EQ
Advanced Networking - Dante digital networked audio enabled
- Enables multi-channel audio networking over Ethernet
- Control system compatible (AMX, Crestron)
UPC: 042406235624 In the Box Shure SCM820-DAN Digital IntelliMix Automatic Mixer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SCM820-DAN Digital IntelliMix Automatic Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SCM820 Specs | | | Channel Input Level Monitoring | Configuration: Active Balanced Impedance: 5 kΩ Clipping Level: Line (-0): +20 dBV, Mic (+26): −6 dBV, Mic (+46): −26 dBV | | Phantom Power | 48 VDC, selectable per channel, 14 mA maximum Mic level settings only. Phantom power automatically switched off in LINE position. | | AUX Input | Configuration: Stereo, Unbalanced Impedance: 10 kΩ Clipping Level: +10 dBV | | Output Connectors (Analog) | Mix OutputConfiguration: Active Balanced Impedance: 350 Ω Clipping Level: Line (±0): +20 dBV, Aux (−20): 0 dBV, Mic (−46): −26 dBV | | Output | DirectConfiguration: Impedance Balanced Impedance: 150 Ω Max Output Level: +20 dBV | | Headphone Output | 1/4" (6.35 mm) TRS, 100 mW, 350 Ω, dual mono (will drive stereo phones) | | Connector | Block | | | | Converter | 24-bit, 48 kHz, 113 dB dynamic range typical | | Internal Processing | 32-bit | | Latency | Analog to AnalogSingle Device: 0.51 ms, In a Link Group 0.76 + 4TNAnalog to DanteSingle Device: 0.29 ms, In a Link Group 0.54 + 4TNDante to AnalogSingle Device: 0.28 + TN, In a Link Group 0.53 + 5TNDante to DanteSingle Device: 0.06 + TN, In a Link Group 0.31 + 5TN From channel input to mix output, Estimated Nominal, ±0.1 ms
TN = Network latency in milliseconds | | Processing | Channel Input: Gain Adjustment Range: −110 to +18 dB
Low Cut: Corner: 25 Hz to 320 Hz, Slope: 12 dB/octave
High Shelf: Corner: 5 kHz, Slope: 12 dB/octave, Gain: −18 to +18 dB
Mix Output: Gain Adjustment Range: −110 to +18 dB
Low Shelf: Corner: 25 Hz to 20 kHz, Slope: 12 dB/octave, Gain: −18 to +18 dB
High Shelf: Corner: 25 Hz to 20 kHz, Slope: 12 dB/octave, Gain: −18 to +18 dB
6-Band PEQ: 25 Hz to 20 kHz, ±18 dB, Bandwidth: 1/70 to 4 octaves
Limiter: Ratio: 10:1
Threshold: −50 to −2 dBFS
Attack: 0.1 ms
Decay: 100 ms | | | | Network Interface | Dual Port, Gigabit Ethernet, Dante digital audio | | Cable Requirements | Cat 5e or higher, shielded, 328' (100 m) maximum | | Network Addressing Capability | DHCP, link-local, static | | | | Dynamic Range | Analog-to-Dante, Dante-to-Analog: 113 dB (20 Hz to 20 kHz, A-weighed, typical) | | Output Noise | Output Pad
Line (+0): -90 dBV
Aux (-20): -110 dBV
Mic (-46): -135 dBV
at 20 Hz to 20 kHz, A-Weighted, one channel open | | Equivalent Input Noise | Input Gain Setting
Line (+0): -93 dBV
Mic (+26): -118 dBV
Mic (+46): -130 dBV
at 20 Hz to 20 kHz, A-Weighted, input terminated with 150 Ω, digital gain at +18 dB | | THD + N | < 0.05 %
1 kHz, +4 dBu out, mix output (Master) at +0 dB | | Common Mode Rejection Ratio | > 70 dB
150 Ω balanced source, at 1 kHz | | Polarity | Non-inverting, any input to any output | | Housing | Steel; Extruded aluminum | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz, 1 A | | Operating Temperature Range | 0 to 145°F (-18 to +63°C) | | Storage Temperature Range | -20 to +165°F (−29 to +74°C) | | Dimensions (H x W x D) | 1.7 x 19.0 x 11.4" (43.1 x 482.6 x 289.5 mm) | | Weight | 12.0 lb (5.4 kg) | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 22.1 x 15.0 x 2.8" |
