Product description - Portable Listening Amplifiers and DACs: First Look

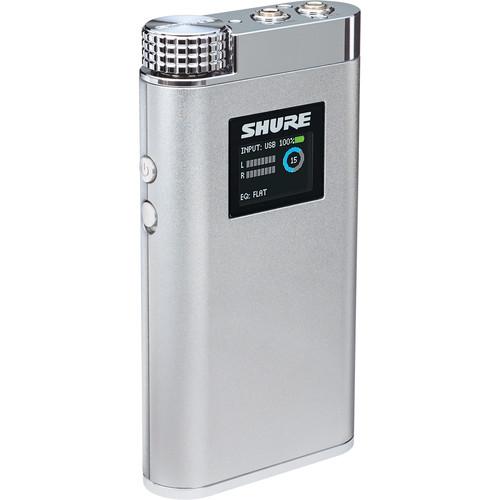

The SHA900 from Shure is a premium, stand-alone portable listening amplifier designed to deliver high-resolution audio to "on-the-go" audiophiles and audio enthusiasts. The unit features a USB digital-to-analog converter (DAC) that converts analog or digital audio from portable digital audio sources or computers at resolutions up to 24-bit/96 kHz. With a headphone impedance range of 6 to 600 ohms and multiple output gain structures, the SHA900 is optimized to power any model earphone or headphone. Streamlined controls allow for quick and easy navigation, while the enhanced audio control features an on-board four-band parametric EQ with five presets and four customizable setting to maximize audio playback fidelity. The SHA900 can process digital audio via micro-USB, analog via direct line in, or bypass entirely for a pure analog signal without conversion.

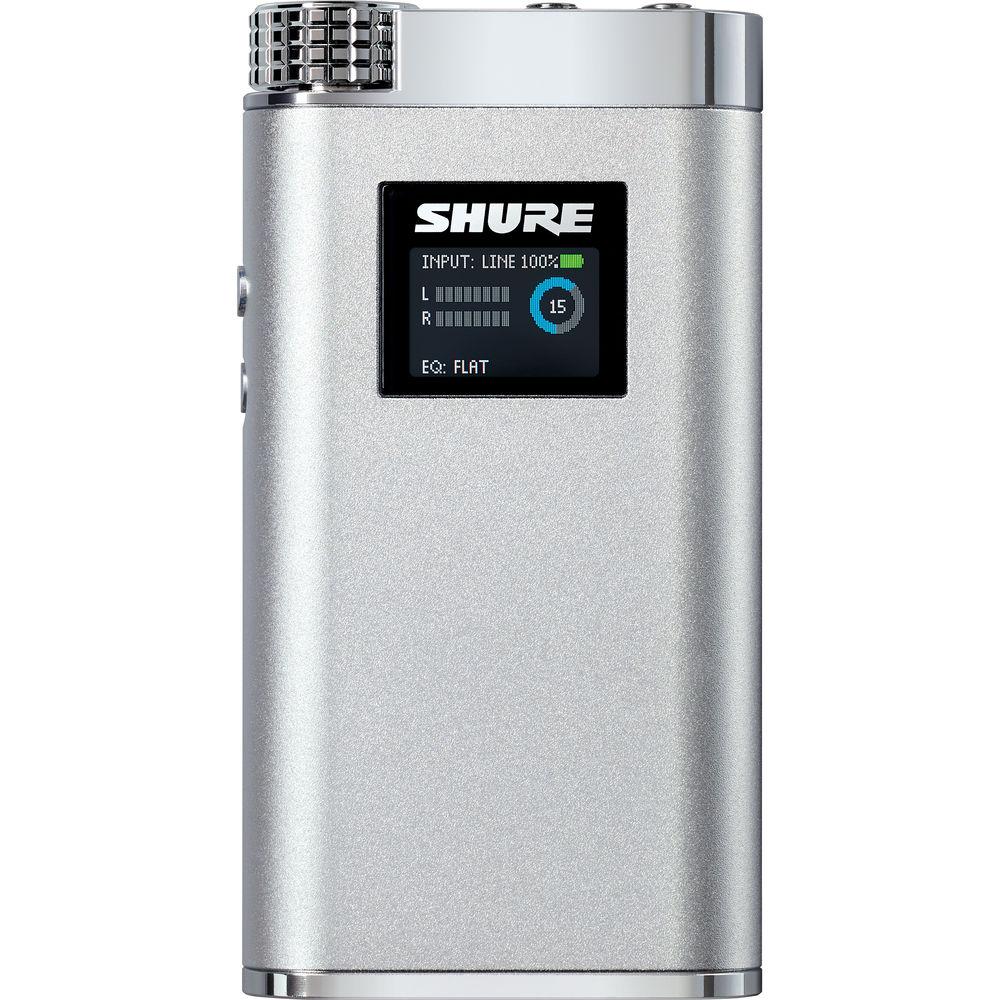

The front-panel display provides easy monitoring of input source, input level meter, battery level, output volume and EQ settings. The premium housing is constructed from elegantly machined aluminum, while power is provided from an integrated rechargeable Lithium-Ion battery that can be conveniently charged from the included wall charger, or via USB when streaming audio from a computer. Compatible with iOS and Android devices, the SHA900 ships with Lightning and OTG cables, as well as two 1/8" / 3.5 mm cables, an airline adapter, a attenuator, a 1/4" / 6.35 adapter, two security bands, and a microfiber cleaning cloth. -
- Connects to digital (USB) and analog audio sources
- Supports up to 24-bit, 96 kHz digital audio
- Factory and custom user presets
- 4-band Parametric EQ features five preset settings and four customizable settings to maximize audio playback fidelity
- Input pad
- Enhanced Audio Control provides additional user-friendly options to maximize audio playback fidelity
- Streamlined controls for quick and simple navigation throughout the SHA900 settings
- Multiple output gain structures optimized for both headphones and earphones
- Integrated USB rechargeable Lithium-Ion battery can conveniently charged from provided wall charger or computer, even when streaming USB audio from computer
- Compatible with Mac, PC, iOS and Android devices via included accessory assortment, featuring Micro-B to Lightning and Micro-B OTG cables
- Premium Shure fit and finish and construction featuring an elegantly machined aluminum housing, manufactured to exacting Shure quality standards

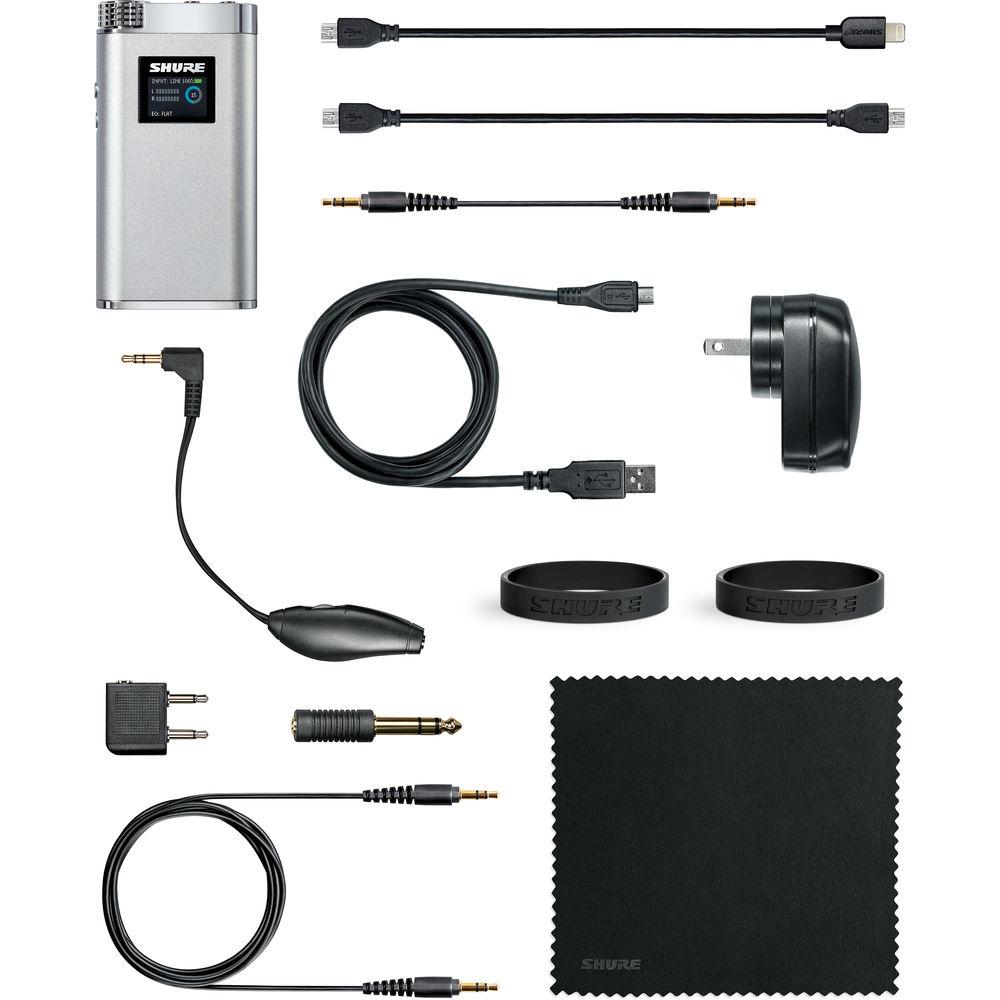

UPC: 042406469777 In the Box Shure SHA900 - Portable Listening Amplifier USB Wall Charger Micro-B-to-Lightning Cable Micro-B OTG Cable 1/8" / 3.5 mm to 1/8" / 3.5 mm Cable (Length: 36" / 92 cm) 1/8" / 3.5 mm to 1/8" / 3.5 mm Cable (Length: 6" / 15 cm) 1/4" / 6.35 mm Adapter Airline Adapter Attenuator 2 x Security Bands Microfiber Cleaning Cloth Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SHA900 - Portable Listening Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SHA900 Specs | Compatibility | Made for iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad (4th generation), iPad mini, iPod touch (5th generation)
Also compatible with Android devices that support USB Audio Class 2.0 and Micro-B OTG (On-The-Go) connectivity | | Bit Depth | 16 / 24-bit | | Sample Rate | 44.1 / 48 / 88.2 / 96 kHz | | Frequency Response | 10 Hz to 50 kHz | | Signal to Noise Ratio (SNR) | Up to 107 dB (A-weighted) | | Gain Range | -60 to +17 dB | | THD + N | 0.05% (1 kHz) | | Output Power | Up to 135 mW +135 mW (16 ohms, 1% THD) Up to 95 mW +95 mW (42 ohms, 1% THD) | | Output Impedance | 0.35 ohms | | Headphone Impedance Range | 6 to 600 ohms | | Limiter | Selectable analog RMS limiter | | Equalizer | 4-band parametric | | USB Input | USB Micro-B Receptacle | | Line Input | 1/8" / 3.5 mm | | Headphone Output | 1/8" / 3.5 mm | | Charging | USB-Powered: 5 V / 0.5 A to 1 A | | Battery Type | Rechargeable Li-Ion | | Nominal Voltage | 3.6 VDC | | Battery Life | Analog In (BYPASS EQ mode): Up to 20 hours
USB Input (EQ mode): up to 10 hours | | Temperature | Battery Charging Temperature Range: 32 to 113°F / 0 to 45°C
Operating Temperature Range: 0 to 135°F / -18 to 57°C | | Housing | Chrome plated aluminum | | Dimensions (H x W x D) | 4.4 x 2.3 x 0.8" / 11.1 x 5.9 x 2.1 cm | | Weight | 6.4 oz / 182.0 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 5.8 x 5.3 x 3.5" |
