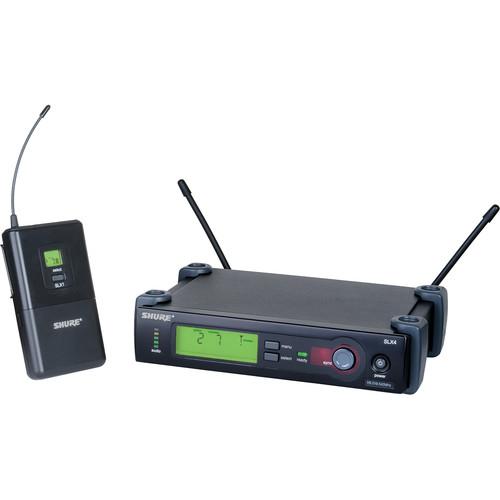

User Manual for Shure SLX Series Wireless Instrument System Click to enlarge the picture
Contents of the user manual for the Shure SLX Series Wireless Instrument System
- Product category: Guitar Wireless Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Guitar Wireless
|
User manual for the Shure SLX Series Wireless Instrument System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in venues, sound reinforcement etc. The UHF system is available in up to 8 different bands, over a 24 MHz spectrum. This system includes the SLX4 receiver, SLX1 bodypack transmitter and WA302 instrument cable.The SLX4 receiver is rack or desktop mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. An XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more. The SLX1 transmitter is a UHF body pack transmitter. The transmitter is powered up to 8 hours on 2 AA size batteries and features a 4-pin microphone input jack, accommodating any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, allowing the transmitter to remotely sync frequency settings with the receiver. An adjustable mic / 0 dB / -10 dB switch allows input from guitars, instruments and microphones. - Sync Between Transmitter & Receiver
- The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel, to be transferred remotely.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output. The SLX1 bodypack transmitter features a Mic / 0 dB / -10 dB switch allowing use with microphones or guitars.
- Extended Battery Life
- The SLX1 bodypack operates up to 8 hours on 2 AA size batteries.
UPC: 042406120791 In the Box Shure SLX Series Wireless Instrument System (H5: 518 - 542 MHz) SLX4 Receiver SLX1 Bodypack WA302 Instrument Cable Zipper Bag Short Rackmount Bar Long Rackmount Bar Link Bar Antenna Extension Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Instrument System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Instrument System | | RF Carrier Frequency Range | H5: 518 - 542 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45 Hz - 15 kHz, +/-2 dB | | Signal-to-Noise Ratio | > 100 dB A-weighted | | # Of Channels | 960 Selectable Frequencies | | # Of Simultaneous Systems | 12 20 in regions where additional frequency bands are available | | | | Type of Receiver | SLX4 Rack/Table Top Mountable UHF Diversity Receiver | | Type of Outputs | XLR 3-pin male - 200 Ohms
1/4" Phone - 1 kOhms | | Headphone Monitoring | No | | Power Requirements | 12 - 18 VDC @ 150 mA, supplied by external power supply | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | LCD Display | Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Flexible 1/4 Wave Whip Antenna | | Dimensions | 1.65 x 7.76 x 5.28" (42 x 197 x 134 mm) HxWxD | | Weight | 3 oz (81 g) | | | | Type of Transmitter | SLX1 UHF Bodypack | | Type of Input Connector | TA4 Input | | Type of Microphone | WA302 Instrument Cable | | Polar Pattern | Not Applicable | | Interchangeable Mic Heads | Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter | | Battery Type/Approx. Life | 2 x AA size alkaline or rechargeable - approx. 8 hours | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0 dB & 10 dB Gain Adjust switch | | Antenna Type | Dual 1/4 wave antennas | | LCD Display | Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Dimensions | 4.25 x 2.50 x 0.75" (108 x 64 x 19 mm) HxWxD | | Weight | 1 lb (816 g) | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 18.0 x 15.0 x 3.5" |
