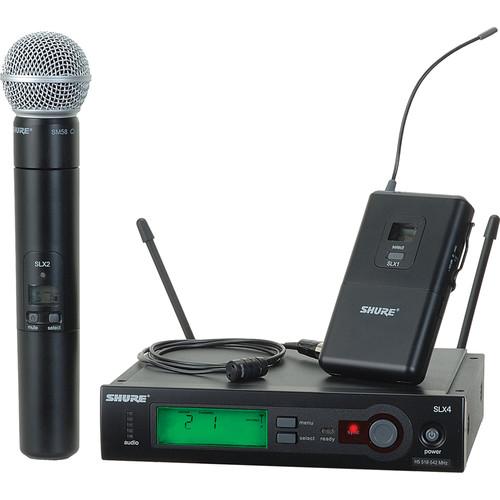

Product description The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in performance venues, sound reinforcement etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver, SLX2 handheld transmitter with an SM58 microphone head and SLX1 bodypack transmitter with a WL185 lavalier microphone.The SLX4 receiver is rack or desktop mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more.The SLX2 handheld transmitter features the cardioid SM58 capsule. The cardioid polar pattern effectively rejects signals at the off-axis sections of the microphone, allowing higher gain before feedback from monitors and speakers. The transmitter features a comprehensive display with timeout function. The SLX1 Transmitter is a UHF bodypack and is powered for up to 8 hours on 2 AA size batteries. A 4-pin microphone input jack, accommodates any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, allowing the transmitter to remotely sync frequency settings with the receiver. An adjustable mic / 0dB / -10dB switch allows input from guitars, instruments and microphones.The WL185 Lavalier Microphone features a cardioid pick up pattern which minimizes off-axis noise and feedback caused by speakers or stage monitors. The WL185 features a 50-17,000Hz frequency response making it suitable for a wide variety of applications. - Combo System
- This set includes both body-pack and handheld transmitters making it useable in application.
- Sync Between Transmitter & Receiver
- The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel to be transferred remotely.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output.
UPC: 042406121521 In the Box Shure SLX Series Wireless Microphone Combo System (J3: 472-596 MHz) SLX4 Diversity Receiver SLX2 Handheld Transmitter with SM58 Capsule SLX1 Bodypack Transmitter WL185 Lavalier Microphone Zipper Bag Short Rack Mount Bar Long Rack Mount Bar Link Bar 2 x 1/4 Wave Antennas Antenna Extension Cables Protective Bumpers with 8 Screws 4 x AA Batteries 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Microphone Combo System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX124/85/SM58-J3 Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Handheld System | | RF Carrier Frequency Range | J3: 472-596 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45Hz - 15kHz, +/-2dB | | Signal-to-Noise Ratio | > 100dB A-weighted | | # Of Channels | 960 Selectable Frequencies | | # Of Simultaneous Systems | 12 20 in regions where additional frequency bands are available | | | | Type of Receiver | SLX4 Rack/Table Top Mountable UHF Diversity Receiver | | Type of Outputs | XLR 3-pin male - 200 Ω
1/4" Phone - 1 kΩ | | Headphone Monitoring | No | | Power Requirements | 12 - 18VDC @ 150mA, supplied by external power supply | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Internal | | Dimensions (HxWxD) | 1.65 x 7.76 x 5.28" (42 x 197 x 134mm) | | Weight | 1 lb 13 oz (816g) | | | | Type of Transmitter | SLX1 UHF Bodypack | | Type of Input Connector | TA4 Input | | Type of Microphone | WL185 Lavalier Included with this Set | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter | | Battery Type/Approx. Life | (2) AA size alkaline or rechargeable - approx 8 hours | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0dB & 10dB Gain Adjust switch | | Antenna Type | Dual 1/4 wave antennas | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Weight | 10.2 oz (290g) | | | | Type of Transmitter | SLX2 UHF Handheld | | Type of Input Connector | Not applicable, handheld transmitters feature built-in microphones | | Type of Microphone | SM58 | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | (2) AA size alkaline or rechargeable - approx 8 hours | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0dB & 10dB Gain Adjust switch | | Antenna Type | Flexible 1/4 Wave Whip Antenna | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Weight | 10.2 oz (290g) | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 11.0 x 5.3 x 3.1" |
