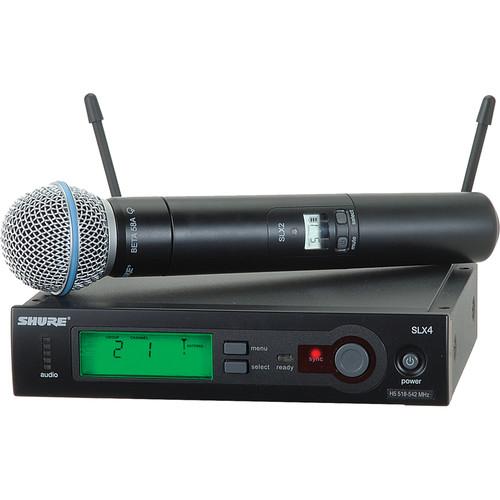

Product description The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in sound-reinforcement applications for live stage, theater, rehearsals, houses of worship, and more. The UHF system is available in up to 8 different bands, over a 24 MHz spectrum. This system includes the SLX4 receiver and SLX2 handheld transmitter with a Beta 58 microphone head.The SLX4 receiver is rack- or desktop mountable and features a diversity-antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. An XLR microphone-level, and 1/4"-phone line-level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more.The SLX2 handheld transmitter features the supercardioid Beta 58 capsule. The supercardioid polar pattern effectively rejects signals at the off-axis sections of the microphone, allowing higher gain before feedback from monitors and speakers. The Beta series microphone features an enhanced frequency response contoured for vocal use. The transmitter features a comprehensive display with timeout function. Two AA-size batteries provide up to 8 hours of power. - Sync Between Transmitter & Receiver
- The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel to be transferred remotely.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- Mic- and Line-Level Output
- The SLX4 receiver features an XLR mic-level and 1/4"-phone line-level output.
- Extended Battery Life
- The SLX2 handheld transmitter operates up to 8 hours on 2 AA-size batteries.
UPC: 042406121279 In the Box Shure SLX Series Wireless Microphone System (H5: 518 - 542 MHz) Zipper Bag Mic Clip Rackmount Kit 2 x 1/4 Wave Antennas Power Supply 2 x AA Batteries Protective Bumpers with 8 Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX24/BETA58-H5 Specs | | | Type of System | Rack/Tabletop Mountable UHF-Diversity Wireless Handheld System | | RF Carrier Frequency Range | H5: 518 - 542 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45 Hz - 15 kHz, +/-2 dB | | Dynamic Range | >100 dB A-weighted | | # Of Channels | 960 selectable frequencies | | # Of Simultaneous Systems | 12 standard and up to 20 in regions where additional frequency bands are available | | Total Harmonic Distortion (THD) | 0.5%, typical (ref. +/- 38 kHz deviation, 1 kHz tone) | | Operating Temperature | 0 to 122°F (-18 to 50°C) | | | | Audio Input Level | +2 dBV maximum at -10 dB position
-8 dBV maximum at 0 dB position | | Gain Adjustment Range | 10 dB | | RF Output | 30 mW maximum (dependent on applicable country regulations) | | Housing | Molded PC/ABS handle and battery cup | | Power Requirements | 2 x "AA"-size alkaline or rechargeable batteries | | Battery Life | 8 hours (alkaline) | | Dimensions (L x W) | 10 x 2" (254 x 51 mm) | | Weight | 10.2 oz (290 g) | | | | Type | Beta 58 | | Polar Pattern | Supercardioid | | | | Housing | Galvanized steel | | Audio Output Level | (Ref. +/- 38 kHz deviation with 1 kHz tone)
XLR connector (into 600 Ohms load): -13 dBV 1/4" (6.3 mm) connector (into 3000 Ohms load): -2 dBV | | Output Impedance | XLR connector: 200 Ohms
1/4" (6.3 mm): 1 kOhms | | Output | Impedance Balanced: Pin 1: Ground Pin 2: Audio Pin 3: No signal | | Sensitivity | -105 dBm for 12 dB SINAD, typical | | Image Rejection | >70 dB, typical | | Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply | | Antenna Type | dual 1/4 wave antennas | | Dimensions (H x W x D) | 1.65 x 7.76 x 5.28" (42 x 197 x 134 mm) | | Weight | 1.8 lb (816 g) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 18.3 x 14.7 x 3.6" |
