User Manual for Shure SLX Series Wireless Microphone System Click to enlarge the picture
Contents of the user manual for the Shure SLX Series Wireless Microphone System
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure SLX Series Wireless Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|

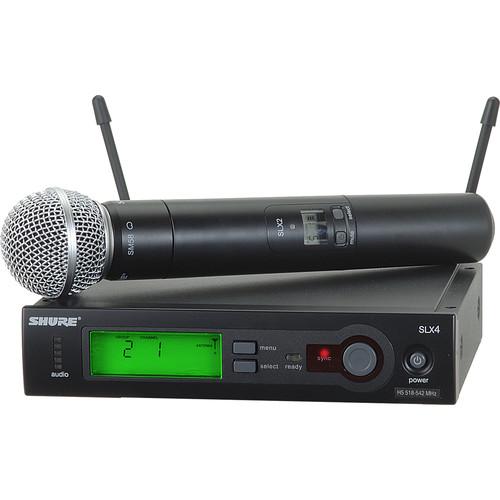

Product description The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in live performance venues, halls, sound reinforcement, etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver and SLX2 handheld transmitter with an SM58 microphone head.The SLX4 receiver is rack or desk top mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. XLR (mic level) and 1/4" phone (+10 dB over XLR) outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more. The SLX2 handheld transmitter features the cardioid SM58 capsule. The cardioid polar pattern effectively rejects signals at the off-axis sections of the microphone, allowing higher gain before feedback from monitors and speakers. The transmitter features a comprehensive display with timeout function. Two AA-size batteries provide up to 8 hours of power. - Sync Between Transmitter & Receiver
- The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel to be transferred remotely.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- XLR and 1/4"
- The SLX4 receiver features XLR and 1/4" outputs
- Extended Battery Life
- The SLX2 handheld transmitter operates up to 8 hours on 2 AA-size batteries.
UPC: 042406470995 In the Box Shure SLX Series Wireless Microphone System (H19: 542 - 572 MHz) Zipper Bag Short Rack Mount Bar Long Rack Mount Bar Link Bar Antenna Extension Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX24/SM58-H19 Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Handheld System | | RF Carrier Frequency Range | H19: 542 - 572 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45 Hz - 15 kHz, +/- 2 dB | | Signal-to-Noise Ratio | > 100 dB A-weighted | | # Of Channels | 960 Selectable Frequencies | | # Of Simultaneous Systems | 12 20 in regions where additional frequency bands are available | | | | Type of Receiver | SLX4 Rack/Table Top Mountable UHF Diversity Receiver | | Type of Outputs | XLR 3-pin male - 200 ohms
1/4" Phone - 1 kohms | | Headphone Monitoring | No | | Power Requirements | 12 - 18 VDC @ 150 mA, supplied by external power supply | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Internal | | Dimensions (HxWxD) | 1.65 x 7.76 x 5.28" (42 x 197 x 134 mm) | | Weight | 10.2 oz (290 g) | | | | Type of Transmitter | SLX2 UHF Handheld | | Type of Input Connector | Not applicable, handheld transmitters feature built-in microphones | | Type of Microphone | SM58 | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | (2) AA-size alkaline or rechargeable - approx. 8 hours | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0 dB & 10 dB Gain Adjust switch | | Antenna Type | Dual 1/4 wave antennas | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Dimensions (LxDiameter) | 10 x 2" (254 x 51 mm) | | Weight | 1.8 lb (816 g) | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 18.3 x 14.7 x 3.7" |
