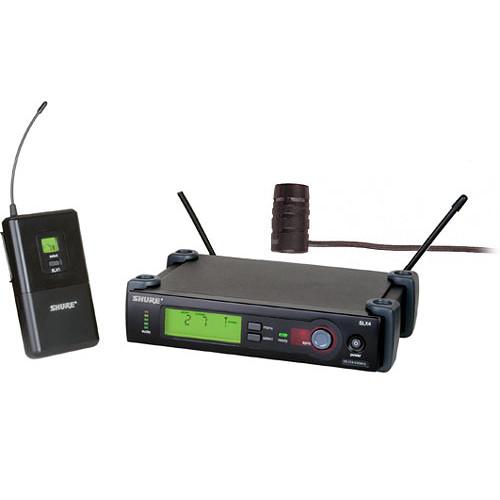

Product description The Shure SLX Series wireless microphone system provides the performance and reliability needed for use in venues, sound reinforcement etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver, SLX1 bodypack transmitter and WL184 lavalier microphone. The SLX4 Receiver is rack or desktop mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. XLR microphone-level and 1/4" phone-line-level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level, and more. The SLX1 Transmitter is a UHF bodypack transmitter. The transmitter is powered for up to 8 hours on 2 AA size batteries and features a 4-pin microphone input jack, which accommodates any Shure microphone featuring a TA4 connection. The SLX1 features an infrared sensor, which allows the transmitter to remotely sync frequency settings with the receiver. An adjustable mic / 0dB / -10dB switch allows input from guitars, instruments and microphones. The WL184 Lavalier Microphone features a supercardioid pick up pattern, and its 50-17,000Hz frequency response makes it suitable for a wide variety of applications. - Automatic Frequency Selection
- Automatic Transmitter Setup
- 960 Selectable frequencies across 24MHz bandwidth
- Detachable 1/4 wave antennas
- Microprocessor-controlled diversity
- Multi-function, backlit LCD
- Frequency and power lockout
- Volume control on rear of unit
- Non-slip bumpers for use out of rack
- Optional logic functionality for software echo cancellation and remote battery life monitoring (SLX4L only)
UPC: 042406145916 In the Box Shure SLX Series Wireless Microphone System (G4/470 - 494MHz) SLX4 Diversity Receiver SLX1 Bodypack Transmitter WL184 Lavalier Microphone Zipper Bag Short Rack Mount Bar Long Rack Mount Bar Link Bar Antenna Extension Cables 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX14/84-G4 Specs | | | Type of System | Rack/Table Top Mountable UHF Diversity Wireless Lavalier System | | RF Carrier Frequency Range | G4/470 - 494MHz | | Approx. Working Range | 300' (100m) | | Overall Frequency Response | 45Hz - 15kHz, +/-2dB | | Signal-to-Noise Ratio | > 100dB A-weighted | | # Of Channels | 960 Selectable Frequencies | | # Of Simultaneous Systems | 12 (20 in regions where additional frequency bands are available) | | | | Type of Receiver | SLX4 Rack/Table Top Mountable UHF Diversity Receiver | | Type of Outputs | XLR 3-pin male - 200 Ω
1/4" Phone - 1 kΩ | | Headphone Monitoring | No | | Power Requirements | 12 - 18VDC @ 150mA, supplied by external power supply | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Dual 1/4 wave antennas | | Dimensions (HxWxD) | 1.65 x 7.76 x 5.28" (42 x 197 x 134mm) | | Weight | 1lb 13oz (816g) | | | | Type of Transmitter | SLX1 UHF Bodypack | | Type of Input Connector | TA4 Input | | Type of Microphone | WL184 Lavalier Included with this Set | | Polar Pattern | Supercardioid | | Interchangeable Mic Heads | Yes, Any of the Shure 'WL' Lavaliers, Headsets, or Instrument Cables (Optional) Can Be Used with this Transmitter | | Battery Type/Approx. Life | (2) AA size alkaline or rechargeable - approx 8 hours | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0dB & 10dB Gain Adjust switch | | Antenna Type | Flexible 1/4 Wave Whip Antenna | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Dimensions (HxWxD) | 4.25 x 2.50 x 0.75" (108 x 64 x 19mm) | | Weight | 3oz (81g) | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 18.0 x 14.5 x 3.5" |
