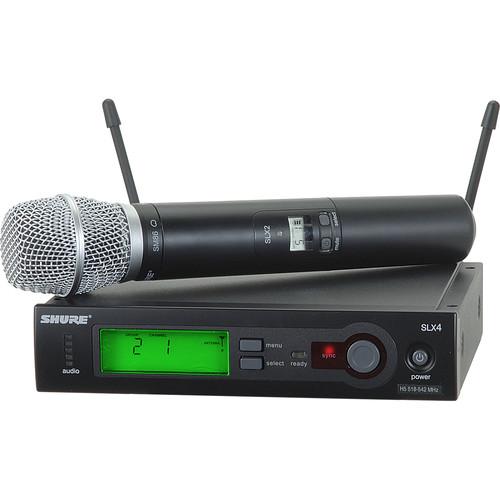

Product description The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in venues, sound reinforcement etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver and SLX2 handheld transmitter with an SM86 microphone head.The SLX4 Receiver is rack or desk top mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. An XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more. The SLX2 Handheld Transmitter features the Shure SM86 cardioid capsule. The condenser transducer provides higher sensitivity response than dynamic microphones, enhancing detail and dynamic range. The SLX2 is completely frequency agile featuring a choice of over 960 user selectable frequencies. - Sync Between Transmitter & Receiver
- The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel, to be transferred remotely.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output.
- Extended Battery Life
- The SLX2 handheld transmitter operates up to 8 hours on 2 AA size batteries.
UPC: 042406471015 In the Box Shure SLX Series Wireless Microphone System H19/542 - 572 MHz SLX4 Diversity Receiver SLX2 Handheld Transmitter SM86 Microphone Head Zipper Bag Short Rack Mount Bar Long Rack Mount Bar Link Bar Antenna Extension Cables 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Microphone System H19 542 - 572 MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX24/SM86-H19 Specs | | | Type of System | UHF Diversity Wireless Handheld System | | RF Carrier Frequency Range | H19/542 - 572 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45Hz - 15kHz, +/-2dB | | Signal-to-Noise Ratio | > 100dB A-weighted | | # Of Channels | 960 Selectable Frequencies | | # Of Simultaneous Systems | 12 20 in regions where additional frequency bands are available | | | | Type of Receiver | SLX4 Rack/Table Top Mountable UHF Diversity Receiver | | Type of Outputs | XLR 3-pin male - 200 Ω
1/4" Phone - 1 kΩ | | Headphone Monitoring | No | | Power Requirements | 12 - 18VDC @ 150mA, supplied by external power supply | | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | | Antenna Type | Internal | | Dimensions | 1.65 x 7.76 x 5.28" (42 x 197 x 134mm) HxWxD | | Weight | 10.2 oz (290g) | | | | Type of Transmitter | SLX2 UHF Handheld | | Type of Input Connector | Not applicable, handheld transmitters feature built-in microphones | | Type of Microphone | SM86 Condenser Head | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | No | | Battery Type/Approx. Life | (2) AA size alkaline or rechargeable - approx 8 hours | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0dB & 10dB Gain Adjust switch | | Antenna Type | Dual 1/4 wave antennas | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Dimensions (WxDxH) | 10 x 2" (254 x 51mm) Length x Diameter | | Weight | 1 lb 13 oz (816g) | | | | Box Dimensions (LxWxH) | 18.3 x 14.5 x 3.7" |
