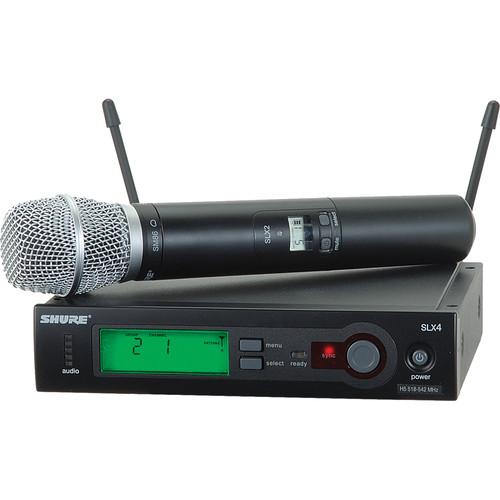

User Manual for Shure SLX Series Wireless Microphone System J3 572 - 596MHz Click to enlarge the picture
Contents of the user manual for the Shure SLX Series Wireless Microphone System
- Product category: Wireless Systems Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Systems
|
User manual for the Shure SLX Series Wireless Microphone System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX Series wireless microphone systems provide the performance and reliability needed for use in venues, sound reinforcement etc. The UHF system is available in up to 8 different bands, over a 24MHz spectrum. This system includes the SLX4 receiver and SLX2 handheld transmitter with an SM86 microphone head.The SLX4 Receiver is rack or desk top mountable and features a diversity antenna design. The diversity design allows dual antennas to compete for the strongest possible reception. An XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group and Channel information as well as transmitter battery status, audio level and more. The SLX2 Handheld Transmitter features the Shure SM86 cardioid capsule. The condenser transducer provides higher sensitivity response than dynamic microphones, enhancing detail and dynamic range. The SLX2 is completely frequency agile featuring a choice of over 960 user selectable frequencies. - Sync Between Transmitter & Receiver
- The SLX series transmitters and receivers feature an infrared sync feature which allows settings such as frequency and channel, to be transferred remotely.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference.
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output.
- Extended Battery Life
- The SLX2 handheld transmitter operates up to 8 hours on 2 AA size batteries.
UPC: 042406121200 In the Box Shure SLX Series Wireless Microphone System J3/572 - 596MHz SLX4 Diversity Receiver SLX2 Handheld Transmitter SM86 Microphone Head Zipper Bag Short Rack Mount Bar Long Rack Mount Bar Link Bar Antenna Extension Cables 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Series Wireless Microphone System J3 572 - 596MHz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX24/SM86-J3 Specs | Type of System | UHF Diversity Wireless Handheld System | RF Carrier Frequency Range | J3/572 - 596MHz | Approx. Working Range | 300' (100 m) | Overall Frequency Response | 45Hz - 15kHz, +/-2dB | Signal-to-Noise Ratio | > 100dB A-weighted | # Of Channels | 960 Selectable Frequencies | # Of Simultaneous Systems | 12 20 in regions where additional frequency bands are available | | Type of Receiver | SLX4 Rack/Table Top Mountable UHF Diversity Receiver | Type of Outputs | XLR 3-pin male - 200 Ω 1/4" Phone - 1 kΩ | Headphone Monitoring | No | Power Requirements | 12 - 18VDC @ 150mA, supplied by external power supply | Battery Type/Approx. Life | Not Applicable, Unit Does Not Operate on Batteries | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | Mounting Options | Rack / Table Top Mount 1/2 Rack Space | Antenna Type | Internal | Dimensions | 1.65 x 7.76 x 5.28" (42 x 197 x 134mm) HxWxD | Weight | 10.2 oz (290g) | | Type of Transmitter | SLX2 UHF Handheld | Type of Input Connector | Not applicable, handheld transmitters feature built-in microphones | Type of Microphone | SM86 Condenser Head | Polar Pattern | Cardioid | Interchangeable Mic Heads | No | Battery Type/Approx. Life | (2) AA size alkaline or rechargeable - approx 8 hours | Mute Switch | Integrated On-Off / Mute Switch | Level Control | 0dB & 10dB Gain Adjust switch | Antenna Type | Dual 1/4 wave antennas | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | Dimensions (WxDxH) | 10 x 2" (254 x 51mm) Length x Diameter | Weight | 1 lb 13 oz (816g) | | Package Weight | 7.55 lb | Box Dimensions (LxWxH) | 16.25 x 14.5 x 3.9" |
