Shure SLX Wireless Boundary Microphone Basic

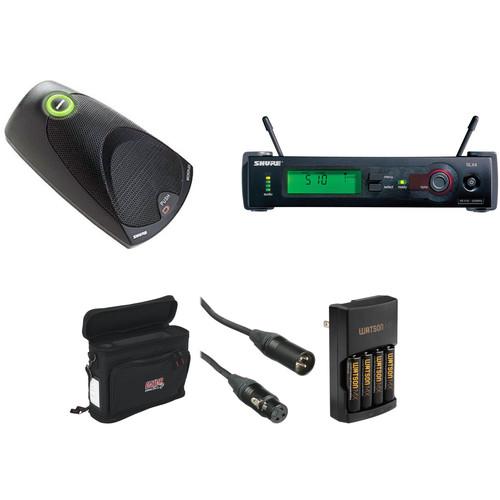

User Manual for Shure SLX Wireless Boundary Microphone Basic Kit

• Product category: Wireless Systems Shure
• Brand: Shure
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Shure Wireless Systems

Product description

• Shure MX690 Microflex Wireless Boundary Microphone (H5) The MX690 Boundary Microphone from Shure features a built-in wireless transmitter that is compatible with Shure's SLX UHF series wireless microphone receivers. The boundary microphone features a cardioid polar pattern for sufficient noise suppression and optimum pick up of conversations, speech, interviews etc. The internal wireless transmitter eliminates the need to run cable and drill holes. A programmable Mute switch includes push-to-talk and push-to-mute modes. Bi-color LED provides status information and the MX690 is conveniently powered on two AA alkaline batteries. This microphone operates within the 518.200 to 541.800 MHz frequency band.
  • Sleek, low profile design
  • Frequency agile, microprocessor controlled transmitter
  • Bi-color status indicator
  • IR link to SLX receiver for automatic frequency synchronization
  • Programmable mute function
  • Battery level indicator
  • Operates on two AA batteries
  • Logic output for remote LED and mute control
  • CommShield Technology for improved RF filtering
  UPC: 042406141659
• Shure SLX4 Diversity UHF Wireless Microphone Receiver (H5: 518 to 542 MHz) The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency.
  UHF Diversity
  • The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference
  Mic & Line Level Output
  • The SLX4 receiver features an XLR mic level and 1/4" phone line level output
  Sync Between Transmitter & Receiver
  • Infrared link automatically syncs the transmitter and receiver
  UPC: 042406121590
• Gator Cases GM-1W Wireless Mobile Pack The Gator Cases GM-1W Wireless Mobile Pack (Black) is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system. The zippered case reveals sufficient space for lavalier microphones, cables and accessories. The foam padded interior protects the gear from shock while remaining lightweight and rugged. The receiver is functional while still in the bag. The front and back unzip for easy access. The bag is carried by a removable, adjustable shoulder strap and padded carrying handles.
  Construction
  • • 600 denier nylon
    • Foam padded interior
    • Zipper closure
  • Access for antenna to be extended while in the case
  • Space for lavalieres, cables and wireless mic with transporter
  • Mounted front and rear access unzips for easy set up in the field
  Carrying options
  • • Removable, adjustable shoulder strap
    • Padded carrying handles
  • Compatible with most single microphone wireless systems
  UPC: 716408503424
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries Power up your photo equipment, flashlights, gaming devices, and other electronics via the Watson MX 4-Hour Rapid Charger with 4 MX AA NiMH Batteries. The 1.2V, 2550mAh nickel-metal hydride cells are pre-charged, rechargeable up to 500 times, and capable of retaining 85% of their capacity after 1 year in storage. The Rapid unit will charge 4 of them in about 310 minutes, or 2 in about 160 minutes. It's also compatible with optional AA NiCd batteries, or AAA NiMH or NiCd cells.

  The charger's integrated micro-controller ensures that each battery is charged to its full capacity, and an automatic cut-off feature prevents overcharging. Should the controller and automatic cut-off functions both fail, the safety guard timer will kick in to ensure that power is still shut off after 6 hours. Additionally, the charger features protection against short circuits and reverse polarity. Two charging channels are individually monitored, and two LED indicators display battery status. In order to enable use all over the world, the charger runs on 100-240 VAC power. As a bonus, its compact outlet prongs can fold inwards, making the unit more compact for storage and travel. UPC: 847628599529

• MX690 Microflex Wireless Boundary Microphone (H5) ezwzctxabqyewzsqfx
• Limited 2-Year Warranty

• SLX4 Diversity UHF Wireless Microphone Receiver (H5: 518 to 542 MHz) ezwzctxabqyewzsqfx

• Gator Cases - GM-1W Wireless Mobile Pack

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• Watson - MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Shure MX690 Microflex Wireless Boundary Microphone (H5)

  Transducer	Electret Condenser
  Polar Pattern	Cardioid
  Frequency Range	50 Hz to 17 kHz
  Sensitivity	33 mV/Pa
  Dynamic Range	96 dB

  Operating Current Consumption	130 mA +/-15 mA
  Length	5.83" / 148 mm
  Weight	11.2 oz / 0.32 kg

  Box Dimensions (LxWxH)	9.8 x 4.8 x 3.3"

• Shure SLX4 Diversity UHF Wireless Microphone Receiver (H5: 518 to 542 MHz)

  Type of Receiver	UHF Diversity Half-Rack Mountable
  RF Carrier Frequency Range	H5: 518 to 542 MHz
  Approx. Working Range	300' (100 m)
  Overall Frequency Response	45 Hz to 15 kHz +/-2 dB
  Sensitivity	-105 dBm for 12 dB SINAD, typical
  Dynamic Range	> 100 dB A-weighted
  # Of Channels	960 operating frequencies across a 24 MHz bandwidth
  Configuration	Impedance balanced
  Type of Output(s)	XLR connection: 200 Ohms 1/4" connection: 1 kOhm
  Image Rejection	> 70 dB, typical
  Headphone Monitoring	No
  Power Requirements	12-18 VDC at 150 mA, supplied by external power supply
  Display	Backlit LCD
  Mounting Options	Short and long rackmount hardware included
  Antenna Type	Dual 1/4 wave BNC type
  Dimensions	1.65 x 7.76 x 5.26" (42 x 197 x 134 mm)
  Weight	1.8 lb (816 g)

  Box Dimensions (LxWxH)	18.2 x 15.0 x 3.8"

• Gator Cases GM-1W Wireless Mobile Pack

  Material	Exterior: 600 denier nylon Interior: Foam padded
  Type of Closure	Zippers
  Exterior Dimensions	15.35 x 5.0 x 11.42" (38.99 x 12.7 x 29cm) (LxDxH)
  Interior Dimensions	8.5 x 2.0 x 8.5" (21.59 x 5.08 x 21.59cm) (LxDxH) Mic Drops: 8.25" (20.96cm)
  Carrying/Transport Options	Shoulder strap Padded carrying handles
  Weight	4.4 lbs (2.0kg)

  Box Dimensions (LxWxH)	14.724 x 10.315 x 4.882"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• Watson MX 4-Hour Rapid Charger and 4 MX AA NiMH Batteries

  Configuration	2 or 4 x AA or AAA NiMH or NiCd batteries
  Input Voltage	100-240 VAC, 50/60 Hz
  Output Voltage	2.8 VDC, 500 mAh
  Charging Time	4 x AAA 950 mAh: About 190 minutes 2 x AAA 950 mAh: About 95 minutes 4 x AA 2550 mAh: About 310 minutes 2 x AA 2550 mAh: About 160 minutes
  Operating Temperature	32 to 113°F / 0 to 45°C
  Dimensions	2.7 x 1.3 x 4.3" / 6.9 x 3.3 x 10.9 cm
  Weight	2.8 oz / 79.4 g

  Quantity	4 x
  Size	AA
  Chemistry	NiMH (nickel-metal hydride)
  Capacity	2550 mAh
  Output Voltage	1.2 V
  Durability	Rechargeable up to 500 times
  Temperature Range	Down to -4°F / -20°C

  Box Dimensions (LxWxH)	7.8 x 4.1 x 0.4"
