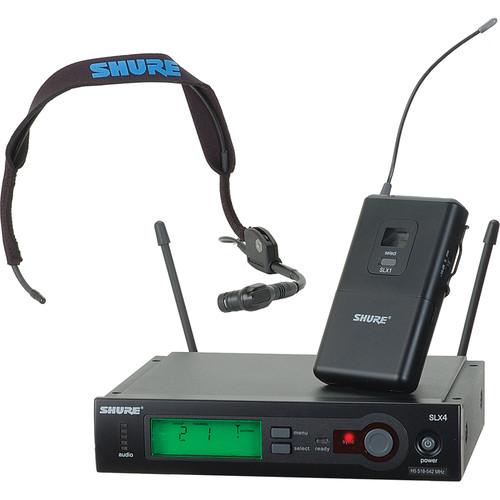

Product description The Shure SLX Wireless Headset Microphone Kit from comes with everything you need for hands-free miking, ideal for dancers, fitness instructors, performers and more. The kit comes with the SLX4 Wireless Microphone Receiver, SLX-1 Bodypack Transmitter, and SM35 Headset Condenser Microphone. - Shure SLX4 Diversity UHF Wireless Microphone Receiver (H5: 518 to 542 MHz) The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency.
- UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output
- Sync Between Transmitter & Receiver
- Infrared link automatically syncs the transmitter and receiver
UPC: 042406121590 - Shure SLX1 Wireless Bodypack Transmitter (H5: 518 to 542 MHz) The SLX1 Wireless Bodypack Transmitter from Shure is ideal for use with headworn, lavalier, and instrument microphones, as well as with guitars and basses. Shure's Audio Reference Companding technology provides premium sound quality, even at high audio levels.
- Automatic transmitter setup
- Backlit LCD with timeout feature
- Frequency and power lockout
- Two AA batteries (included) provide up to eight hours of continuous use
UPC: 042406121675 - Shure SM35 Performance Headset Condenser Microphone (TA4F) The TA4F SM35 Performance Headset Condenser Microphone from Shure is a wireframe headset cardioid condenser microphone that can be used for a variety of active vocal and general speech performance applications. It features an in-line XLR preamp and connector. A snap-fit windscreen is included.
- Wearable wireframe headset is designed to fit securely and comfortably for active performers and multi-instrumentalists
- Flexible gooseneck design allows for optimized placement to further improve source isolation
- Lightweight and low-profile form for long-wearing use
- TA4F connector compatible with any Shure wireless bodypack system
- Locking snap-fit windscreen
- Tailored frequency response refined for clear, crisp vocal reproduction
UPC: 042406325820 In the Box - SLX4 Diversity UHF Wireless Microphone Receiver (H5: 518 to 542 MHz) bubsczsuvzcxvyzu
- Power Supply
- Rackmount Hardware
- 2 x 1/4 Wave Antennas
- Limited 2-Year Warranty
- SLX1 Wireless Bodypack Transmitter (H5: 518 to 542 MHz)
- SM35 Performance Headset Condenser Microphone (TA4F)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX Wireless Headset Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shure SLX4 Diversity UHF Wireless Microphone Receiver (H5: 518 to 542 MHz)
| Type of Receiver | UHF Diversity Half-Rack Mountable | | RF Carrier Frequency Range | H5: 518 to 542 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45 Hz to 15 kHz +/-2 dB | | Sensitivity | -105 dBm for 12 dB SINAD, typical | | Dynamic Range | > 100 dB A-weighted | | # Of Channels | 960 operating frequencies across a 24 MHz bandwidth | | Configuration | Impedance balanced | | Type of Output(s) | XLR connection: 200 Ohms
1/4" connection: 1 kOhm | | Image Rejection | > 70 dB, typical | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply | | Display | Backlit LCD | | Mounting Options | Short and long rackmount hardware included | | Antenna Type | Dual 1/4 wave BNC type | | Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134 mm) | | Weight | 1.8 lb (816 g) | | | | Box Dimensions (LxWxH) | 18.2 x 15.0 x 3.8" | - Shure SLX1 Wireless Bodypack Transmitter (H5: 518 to 542 MHz)
| Frequency Bands | H5: 518 to 542 MHz | | Audio Input Level | Mic: −10 dBV maximum
0 dB: +10 dBV maximum
-10 dB: +20 dBV maximum | | Gain Adjustment Range | 30 dB | | Input Impedance | 1 MOhm | | RF Output Power | 10-30 mW (varies by region) | | Pin Assignments | TA4M 1: Ground (cable shield)
2: +5 V Bias
3: Audio
4: Tied through active load to ground (on instrument adapter cable, pin 4 floats) | | Battery Type | 2 x AA size alkaline or rechargeable | | Battery Life | Up to 8 hours (alkaline) | | Material of Construction | Housing: Galvanized steel | | Dimensions (H x W x D) | 4.3 x 2.5 x 0.75" (108 x 64 x 19 mm) | | Weight | 3 oz (81 g), without batteries | | | | Box Dimensions (LxWxH) | 11.102 x 5.354 x 3.228" | - Shure SM35 Performance Headset Condenser Microphone (TA4F)
| Type | Electret condenser | | Frequency Response | 40 Hz to 20 kHz | | Polar Pattern | Cardioid | | Output Impedance | 2400 Ω @ 1 kHz, typical | | Audio Output Level | -59 dBV/Pa | | Signal to Noise Ratio | 55 dB @ 1 kHz | | Maximum SPL | 153 dB, @ 1 kHz (1,000 Ω load) | | Dynamic Range | 114 dB, @ 1 kHz (1,000 Ω load) | | Output Noise | 39 dB, typical, A-weighted | | Power Requirements | +5 V DC (nominal), 10 V maximum (DC bias) | | Polarity | Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1 | | Cable | 45" (1.1 m) | | Connector | TA4F | | Weight | 2.53 oz (72 g) | | | | Box Dimensions (LxWxH) | 8.0 x 6.3 x 3.0" |
