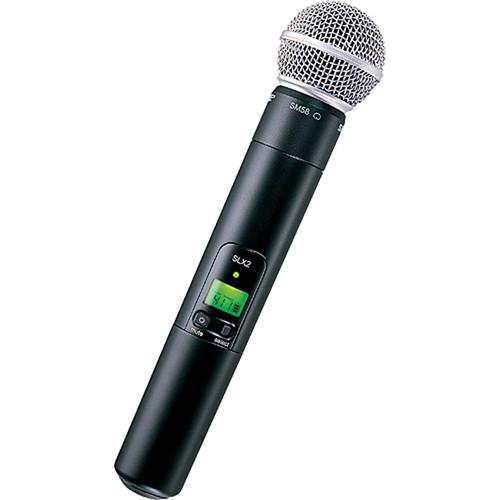

User Manual for Shure SLX2 Handheld Wireless UHF Transmitter with SM58 Microphone Click to enlarge the picture
Contents of the user manual for the Shure SLX2 Handheld Wireless UHF Transmitter
- Product category: Wireless Transmitters Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Transmitters
|
User manual for the Shure SLX2 Handheld Wireless UHF Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX2 Handheld Wireless UHF Transmitter is designed for use with the Shure SLX4 wireless receiver. The transmitter is available with various Shure microphone capsules, providing a variety of signal response characteristics and pickup patterns. The transmitter features a comprehensive display with timeout function. Two AA size batteries provides up to 8 hours of power. This handheld transmitter features the SM58 capsule which utilizes a cardioid polar pattern to effectively isolate the main sound source and minimize unwanted background noise. - SLX2 Wireless Handheld Transmitter
- Automatic Transmitter Setup
- Backlit LCD with timeout feature
- Frequency and power lockout
- 3-segment battery fuel gauge
- 2 x AA batteries (included) provide 8 hours of continuous use
- SM58 Vocal Microphone
- Frequency response tailored for vocals, with brightened midrange and bass roll-off
- Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise
- Pneumatic shockmount system cuts down handling noise
- Effective, built-in spherical wind and pop filter
- Supplied with break-resistant stand adapter which rotates 180°
- Legendary Shure quality, ruggedness, and reliability
- Cardioid (unidirectional) dynamic
UPC: 042406146241 In the Box Shure SLX2 Handheld Wireless UHF Transmitter with SM58 Microphone (G5: 494 to 518 MHz) SLX2 Handheld Transmitter SM58 Microphone Head 2 x AA Battery Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX2 Handheld Wireless UHF Transmitter with SM58 Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX-2 Specs | Frequency Bands | G5: 494 to 518 MHz | | Maximum Input Level | at -10 dB gain: +2 dBV
at 0 dB gain -8 dBV | | Gain Adjustment Range | 10 dB | | RF Output Power | 10 to 30 mW (varies by region) | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | Yes | | Battery Type/Approx. Life | 2 x AA size alkaline or rechargeable
Up to 8 hours (alkaline) | | Mute Switch | Integrated On-Off / Mute Switch | | Level Control | 0 dB & 10 dB Gain Adjust switch | | Antenna Type | Internal | | Display | LCD Display: Channel / Frequency / Group / Lock / Transmitter Battery Status / Antenna Status | | Dimensions (LxDiameter) | 10 x 2" (254 x 51 mm) | | Weight | 10.2 oz (290 g) without batteries | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 11.0 x 5.5 x 3.0" |
