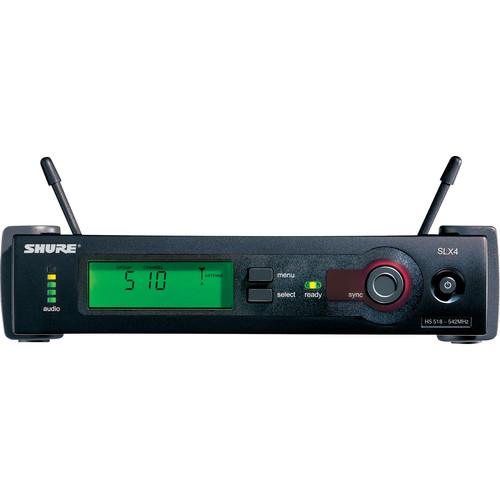

User Manual for Shure SLX4 Diversity UHF Wireless Microphone Receiver Click to enlarge the picture
Contents of the user manual for the Shure SLX4 Diversity UHF Wireless Microphone
- Product category: Wireless Receivers Shure
- Brand: Shure
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shure Wireless Receivers
|
User manual for the Shure SLX4 Diversity UHF Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shure product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shure user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shure product will considerably shorten its lifespan!
|
Product description The Shure SLX4 is a UHF wireless microphones receiver designed for use with the Shure SLX wireless microphone series. The diversity design allows dual receiver circuits and antennas to compete for the strongest possible reception. XLR microphone level, and 1/4" phone line level outputs are featured. A comprehensive LCD display provides Frequency, Group, and Channel information, as well as transmitter battery status, audio level, and more. Note: For system compatibility, the component's frequency MUST match your existing system/component frequency. - UHF Diversity
- The SLX4 receiver features UHF diversity reception. Dual receivers compete for the strongest possible reception, reducing noise and dropout due to RF interference
- Mic & Line Level Output
- The SLX4 receiver features an XLR mic level and 1/4" phone line level output
- Sync Between Transmitter & Receiver
- Infrared link automatically syncs the transmitter and receiver
UPC: 042406470810 In the Box Shure SLX4 Diversity UHF Wireless Microphone Receiver (H19: 542 to 572 MHz) Power Supply Rackmount Hardware 2 x 1/4 Wave Antennas Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shure SLX4 Diversity UHF Wireless Microphone Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShure SLX4 Specs | Type of Receiver | UHF Diversity Half-Rack Mountable | | RF Carrier Frequency Range | H19: 542 to 572 MHz | | Approx. Working Range | 300' (100 m) | | Overall Frequency Response | 45 Hz to 15 kHz +/-2 dB | | Sensitivity | -105 dBm for 12 dB SINAD, typical | | Dynamic Range | > 100 dB A-weighted | | # Of Channels | 960 operating frequencies across a 24 MHz bandwidth | | Configuration | Impedance balanced | | Type of Output(s) | XLR connection: 200 Ohms
1/4" connection: 1 kOhm | | Image Rejection | > 70 dB, typical | | Headphone Monitoring | No | | Power Requirements | 12-18 VDC at 150 mA, supplied by external power supply | | Display | Backlit LCD | | Mounting Options | Short and long rackmount hardware included | | Antenna Type | Dual 1/4 wave BNC type | | Dimensions | 1.65 x 7.76 x 5.26" (42 x 197 x 134 mm) | | Weight | 1.8 lb (816 g) | | | | Package Weight | 6.15 lb | | Box Dimensions (LxWxH) | 18.3 x 14.8 x 3.8" |
